Cat H compliant
Compliant for Category H handgun storage in all Australian states and territories. Pistol-specific fittings and fixed-handgun hangers help satisfy state requirements out of the box.
Pistol Safe Series
IQ Pistol Series High-security commercial and domestic safes
The IQ Pistol Series is Dominator's purpose-built handgun storage range — Cat H compliant for all Australian states and territories. Four models from IQ-2 through IQ-5, each fitted with pistol hangers, adjustable shelves, and an optional internal ammunition box. Built on the proven HS Series security platform with handgun-specific fittings.
Why IQ Pistol Series
Engineered for licensed handguns.
HS Series security platform
Built on the same proven HS Series security platform — heavy-gauge steel, 32mm chrome-plated locking bolts, hardened anti-drill plating, and spring-loaded case relocker.
Pistol hangers + ammo box
4–8 pistol hangers fitted standard depending on model. Optional internal ammunition box keeps ammunition securely separated from handguns as required.
Models
Choose your IQ Pistol Series safe

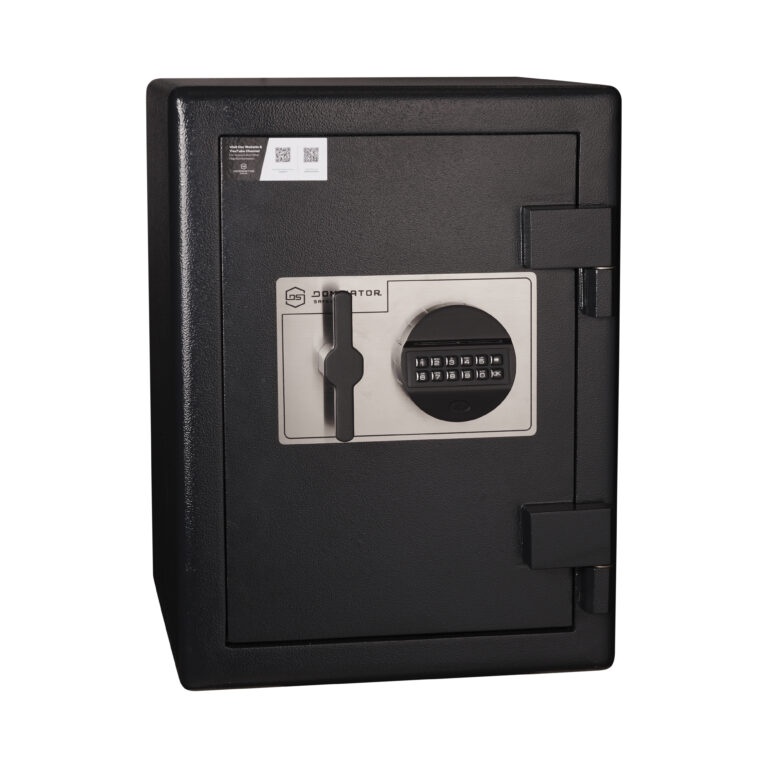

IQ-2
Cat H compliant for all states & territories. Offers a great way to store your pistols and ammunition, unrivalled value for money. Optional internal Ammo Box
- External height
- 510 mm
- Weight
- 79 kg
- Capacity
- 42 L
- Locking bolts
- 5 × Ø30
Full specifications
Dimensions & Weight
- External
- 510 × 380 × 380 mm
- Internal
- 470 × 325 × 275 mm
- Total weight
- 79 kg
- Door weight
- 23 kg
- Body weight
- 56 kg
- Capacity
- 42 L
Interior Fittings
- Shelves
- 2
- Hooks
- 4
Door & Clearance
- Door swing angle
- 155°
- Door open height
- 675 mm
- Door open width
- 715 mm
- Side clearance
- 625 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 5 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.65 × 0.6 × 0.4 m
- Packaged weight
- 85 kg
- Pack type
- Skid
Ratings
- Cash rating
- $40,000 in unsupported application
- Fire rating
- 30 minute recommended

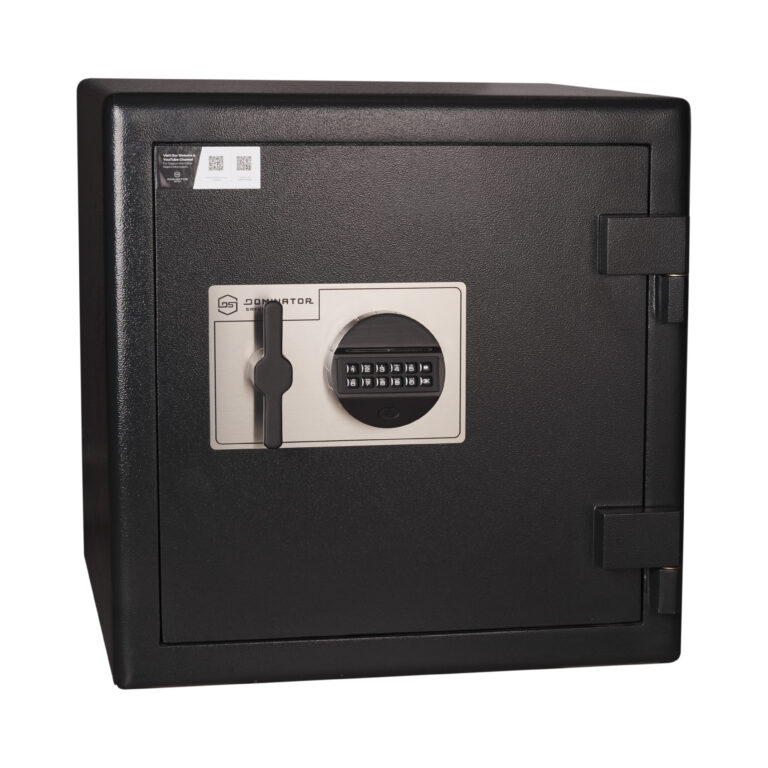

IQ-3
Cat H compliant for all states & territories. With optional internal Ammo Box
- External height
- 510 mm
- Weight
- 111 kg
- Capacity
- 86 L
- Locking bolts
- 5 × Ø30
Full specifications
Dimensions & Weight
- External
- 510 × 510 × 510 mm
- Internal
- 470 × 455 × 400 mm
- Total weight
- 111 kg
- Door weight
- 29 kg
- Body weight
- 82 kg
- Capacity
- 86 L
Interior Fittings
- Shelves
- 2
- Hooks
- 6
Door & Clearance
- Door swing angle
- 155°
- Door open height
- 930 mm
- Door open width
- 965 mm
- Side clearance
- 905 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 5 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.65 × 0.6 × 0.55 m
- Packaged weight
- 118 kg
- Pack type
- Skid
Ratings
- Cash rating
- $25,000 in unsupported application
- Fire rating
- 30 minute recommended

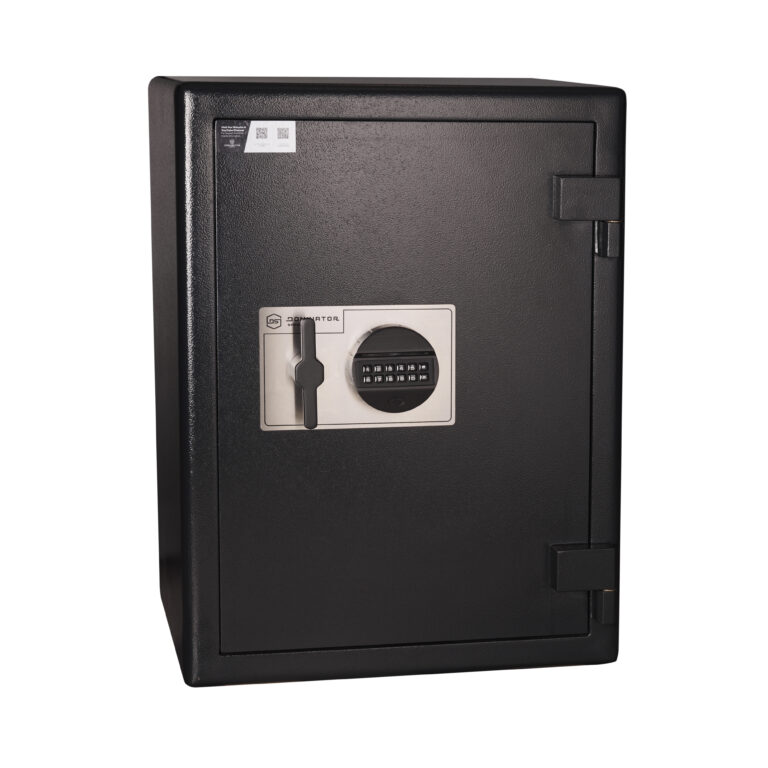

IQ-4
Cat H compliant for all states & territories. The increased height in the IQ-4 improves accessibility without imposing further on floor space. The narrow profile allows installations where limited depth of space is available. Optional internal Ammo Box
- External height
- 685 mm
- Weight
- 128 kg
- Capacity
- 81.3 L
- Locking bolts
- 7 × Ø30
Full specifications
Dimensions & Weight
- External
- 685 × 510 × 380 mm
- Internal
- 650 × 455 × 275 mm
- Total weight
- 128 kg
- Door weight
- 38 kg
- Body weight
- 90 kg
- Capacity
- 81.3 L
Interior Fittings
- Shelves
- 3
- Hooks
- 6
Door & Clearance
- Door swing angle
- 155°
- Door open height
- 930 mm
- Door open width
- 840 mm
- Side clearance
- 905 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 7 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.82 × 0.57 × 0.47 m
- Packaged weight
- 135 kg
- Pack type
- Skid
Ratings
- Cash rating
- $40,000 in unsupported application
- Fire rating
- 30 minute recommended

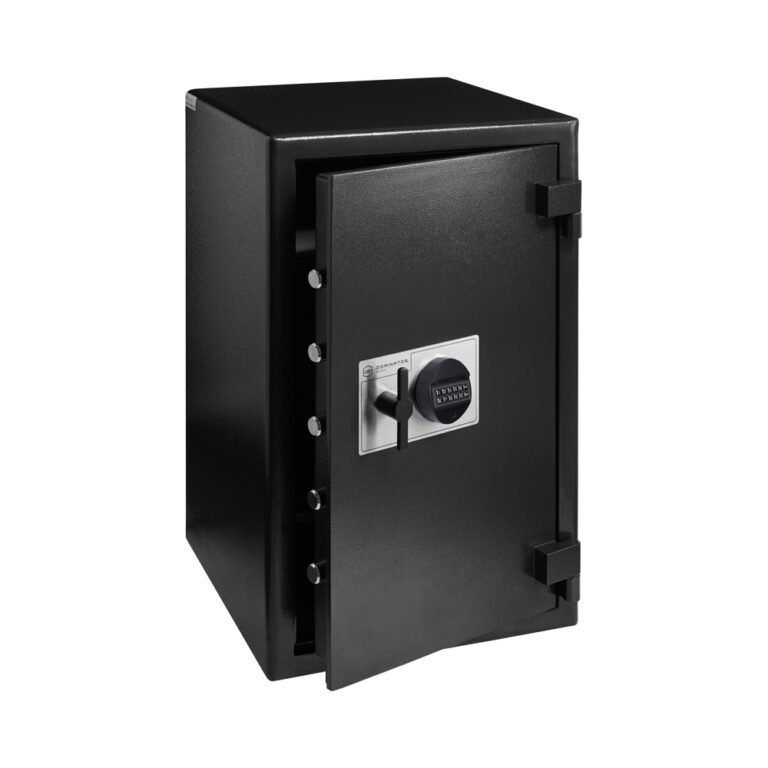

IQ-5
Cat H compliant for all states & territories. Using the same footprint as the IQ-3, the large IQ-5 provides 150L storage capacity ensuring high level security for large volume secure storage Optional internal Ammo Box
- External height
- 845 mm
- Weight
- 162 kg
- Capacity
- 146 L
- Locking bolts
- 7 × Ø30
Full specifications
Dimensions & Weight
- External
- 845 × 510 × 510 mm
- Internal
- 800 × 455 × 400 mm
- Total weight
- 162 kg
- Door weight
- 46 kg
- Body weight
- 116 kg
- Capacity
- 146 L
Interior Fittings
- Shelves
- 3
- Hooks
- 6
Door & Clearance
- Door swing angle
- 155°
- Door open height
- 930 mm
- Door open width
- 965 mm
- Side clearance
- 905 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 7 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 1 × 0.6 × 0.55 m
- Packaged weight
- 172 kg
- Pack type
- Skid
Ratings
- Cash rating
- $40,000 in unsupported application
- Fire rating
- 30 minute recommended

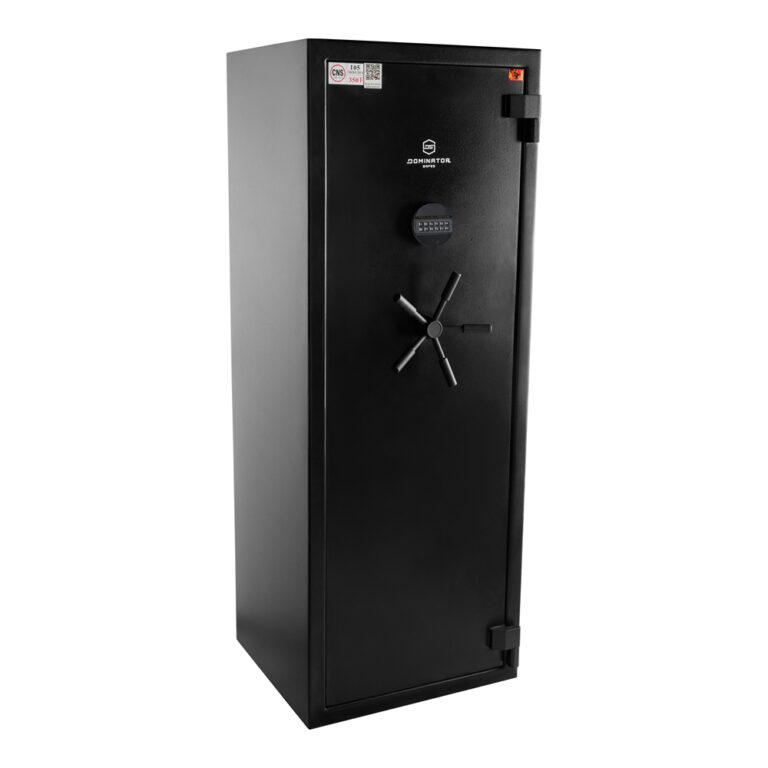

GC-4
The new GC-4 takes the security features you find in our DS range and applies them to a firearm cabinet creating the ultimate protection against fire and theft for firearms and valuables and includes prefabricated installation provisions to comply with fixing regulations Australia-wide.
- External height
- 1500 mm
- Weight
- 300 kg
- Capacity
- 205.4 L
- Locking bolts
- 12 × Ø30
Full specifications
Dimensions & Weight
- External
- 1500 × 560 × 510 mm
- Internal
- 1395 × 475 × 310 mm
- Total weight
- 300 kg
- Door weight
- 89 kg
- Body weight
- 211 kg
- Capacity
- 205.4 L
Interior Fittings
- Shelves
- 3
- Hooks
- 0
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 1025 mm
- Door open width
- 1015 mm
- Side clearance
- 975 mm
- Handle projection
- 70 mm
- Overall door thickness
- 74 mm
Locking & Fixing
- Locking bolts
- 12 × Ø30
- Fixing bolts
- 4 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 1.65 × 0.6 × 0.6 m
- Packaged weight
- 313 kg
- Pack type
- Skid
Ratings
- Cash rating
- $50,000
- Insurable valuables
- Up to $500,000
- Fire rating
- 105 minute CNS Certified
Notes
- Notes
- PDO
GC-5
The brand-new GC-5 premium gun cabinet is the ultimate protection against fire and theft for firearms and valuables. Incorporating the highest security locking devices and a composite concrete and steel body design, the GC-5 provides exceptional security in domestic and commercial applications. Like all the GC series, this safe is available in all lock types and functions and includes prefabricated installation provisions to comply with fixing regulations Australia-wide.
- External height
- 1500 mm
- Weight
- 413 kg
- Capacity
- 387.5 L
- Locking bolts
- 12 × Ø30
Full specifications
Dimensions & Weight
- External
- 1500 × 800 × 570 mm
- Internal
- 1355 × 715 × 400 mm
- Total weight
- 413 kg
- Door weight
- 113 kg
- Body weight
- 300 kg
- Capacity
- 387.5 L
Interior Fittings
- Shelves
- 3
- Hooks
- 0
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 1285 mm
- Door open width
- 1450 mm
- Side clearance
- 1320 mm
- Handle projection
- 70 mm
- Overall door thickness
- 74 mm
Locking & Fixing
- Locking bolts
- 12 × Ø30
- Fixing bolts
- 4 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 1.65 × 0.85 × 0.65 m
- Packaged weight
- 440 kg
- Pack type
- Skid
Ratings
- Cash rating
- $50,000
- Insurable valuables
- Up to $500,000
- Fire rating
- 105 minute CNS Certified
Notes
- Notes
- PDO
At a Glance
IQ Pistol Series size comparison
All IQ Pistol Series safes drawn to actual relative scale. IQ-2 at 510mm through to IQ-5 at 845mm — sized to securely store handguns and ammunition in domestic and small-business environments.
Trust and Insurance
Certifications and Insurance
Cat H compliant handgun storage with insurance-grade construction. Insurable cash rating $25,000 across the range.
Cat H
Compliant — all states & territories
Solid Steel
HS Series construction platform
Cash Rating
$25,000 AUD
Pistol Hangers
Up to 8 hangers fitted
Power for Life
Free batteries — included
Best Warranty
Australia's best warranty
5-Year Warranty
Standard across the range
Independently tested burglary protection
IQ Pistol Series safes are built on the HS Series construction platform — heavy-gauge solid steel body and door, hardened anti-drill plating, 32mm chrome-plated locking bolts, and spring-loaded case relocker. Cat H compliance includes specific requirements for fixed pistol hangers and separate ammunition storage, both standard on IQ Series.
Insurance ratings (AUD)
IQ Pistol Series safes carry insurable cash rating of $25,000 in unsupported applications. Where firearms insurance requires specific certifications:
- Cash rating: $25,000 across the range
- Cat H compliance: satisfies state firearms storage requirements
For mixed firearm and high-value collection storage, the GC Series adds higher cash ratings and concrete composite construction.
Cat H compliant for licensed handgun storage in all Australian states and territories.
Specifications
The full IQ Pistol Series lineup
| Model | External (H × W × D) | Internal (H × W × D) | Weight | Capacity | Locking bolts | Notes |
|---|---|---|---|---|---|---|
| IQ-2 | 510 × 380 × 380 | 470 × 325 × 275 | 79 kg | 42 L | 5 × Ø30 | |
| IQ-3 | 510 × 510 × 510 | 470 × 455 × 400 | 111 kg | 86 L | 5 × Ø30 | |
| IQ-4 | 685 × 510 × 380 | 650 × 455 × 275 | 128 kg | 81.3 L | 7 × Ø30 | |
| IQ-5 | 845 × 510 × 510 | 800 × 455 × 400 | 162 kg | 146 L | 7 × Ø30 | |
| GC-4 | 1500 × 560 × 510 | 1395 × 475 × 310 | 300 kg | 205.4 L | 12 × Ø30 | PDO |
| GC-5 | 1500 × 800 × 570 | 1355 × 715 × 400 | 413 kg | 387.5 L | 12 × Ø30 | PDO |
Specs Detail
Technical Information
Construction
- Built on the HS Series security platform
- Heavy-gauge solid steel body and door
- 32mm chrome-plated locking bolts
- Locking points: 4 (IQ-2, IQ-3), 5 (IQ-4, IQ-5)
- Hardened anti-drill plating, spring-loaded case relocker
Handgun storage
- Fixed pistol hangers — 4 (IQ-2), 5 (IQ-3, IQ-4), 8 (IQ-5)
- Adjustable shelving for ammunition, magazines, accessories
- Optional internal ammunition box on every model
- Big Red mechanical combination lock available
Mounting and installation
- 4 internal recessed bolt holes
- 2 × rear or side recessed internal fixing bolt holes as required
- Floor mounting required for state Cat H compliance
Engineering
Construction and Security Features
IQ Pistol Series safes combine the HS Series security platform with handgun-specific fittings to satisfy Cat H storage requirements out of the box.
Cat H compliant
Built to satisfy Australian state firearms storage requirements for Category H handguns across all states and territories.
Fixed pistol hangers
4 to 8 fixed pistol hangers depending on model — sized to suit standard handguns and satisfy fixed-storage compliance requirements.
Optional ammunition box
Internal ammunition storage box available on every model — keeps ammunition secure and separately accessible as required.
HS-platform construction
Heavy-gauge steel body and door, 32mm chrome-plated locking bolts, hardened anti-drill plating — built to the same specification as the HS Series.
4 or 5 locking points
Handle-driven multi-point bolt work for resistance to prying and forced-entry attacks.
Anti-drill plating
Hardened steel anti-drill plating around the lock and a spring-loaded case relocker that engages if the lock is attacked.
Universal lock footprint
Standardised lock mounting allows easy conversion between key, combination and electronic lock types.
Adjustable shelves
Adjustable shelves on every model — configure interior to suit your handgun count, ammunition stocks and accessories.
Available in base mounting
Available in Left & Right Hand Hinge
IQ Pistol Series safes can be specified left-hand or right-hand hinge. Floor mounting is required for state Cat H compliance. Confirm hinge handing and bolt-down provisions with your dealer at order.
Lock Options
Lock Options and Upgrades
Every IQ Pistol Series model is available in three lock configurations as standard. All satisfy Cat H compliance — choose based on access frequency and ergonomic preference.
DS-xD
Tecnosicurezza Pulse Electronic
Tecnosicurezza Pulse 2-user electronic safe lock
Operation
6-digit user codes, 2 user capability standard
Power
9V battery (externally changeable) — covered by Power for Life
Best For
Daily access, multi-user environments, fast entry
DS-xC
Group 2 Combination Dial
Group 2 certified 3-wheel combination
Operation
Precision mechanical dial, 3 number combination
Power
None required — works indefinitely without batteries
Best For
Buyers who value simplicity and longevity, environments with no battery maintenance preference
DS-xK
Ross 700 Key Lock
Ross 700 high-security key lock
Operation
Traditional key-turn mechanism
Power
None required
Best For
Buyers who prefer key-access reliability and don't need to share access frequently.
Note
Highest quality mechanical key lock available — can also be specified as a secondary lock on DS-2, DS-3, DS-4 and DS-5 for increased security cash rating
Upgrade
Secondary Key Lock Upgrade
IQ Pistol Series safes can be specified with a secondary Ross 700 key lock for layered security. Adding a secondary lock can satisfy specific insurance requirements for higher-value handgun collections.
Universal Lock Footprint
IQ Pistol Series safes use a universal lock mounting footprint — meaning any of the three lock types can be retrofitted to an existing safe by a qualified safe technician.
Configure
Accessories and Spare Parts
Configure your IQ Pistol Series safe with the accessories below. All accessories are available through your Dominator dealer at point of order or as retrofits.
Pistol Hangers
Additional pistol hangers — for collectors with handgun counts beyond the model's standard fitting.
IQ-HANGER
Additional fixed pistol hanger
Ammunition Box
Internal ammunition storage box — sized to suit IQ Pistol Series interior.
IQ-AMMOBOX
Internal ammunition storage box
Shelves
Additional adjustable shelves with fitting clips. Sized to suit each IQ model.
IQ-2SHELF
Adjustable shelf and clips to suit IQ-2
IQ-3SHELF
Adjustable shelf and clips to suit IQ-3
IQ-4SHELF
Adjustable shelf and clips to suit IQ-4
IQ-5SHELF
Adjustable shelf and clips to suit IQ-5
For Specifiers
DS Series Specification Tips
IQ-2 vs IQ-3 — by handgun count
IQ-2 fits 4 fixed pistol hangers in a 510×380×380mm footprint. IQ-3 expands to a 510mm cube with 5 hangers and more ammunition / accessory space — most multi-handgun licence holders specify IQ-3 or larger.
IQ-5 — collectors
IQ-5 fits 8 fixed pistol hangers and 150L of internal storage — designed for collectors and dealers managing larger handgun inventories.
Ammunition storage compliance
Most state Cat H requirements include separate ammunition storage. The optional IQ-AMMOBOX satisfies this within the same safe; some jurisdictions may require a physically separate cabinet.
Lifetime Initiative
Power for Life Free batteries for the lifetime of your safe.
Every DS Series safe with an electronic or biometric lock is covered by our Power for Life initiative. Once a year, you can redeem a free replacement battery at any authorised Dominator dealer — no receipts, no conditions, for as long as you own the safe.
It's our way of making sure your safe stays accessible for decades, not just years.
Power for Life applies across the full range: HS Series, DS Series, GC Series (gun cabinets), FA Series and FX Series.
STEP 01
Receive your e-voucher
After registering your warranty
STEP 02
Visit your dealer once a year
With the voucher on your phone
STEP 03
Walk out with a free battery
Recommended Duracell Procell Alkaline battery
Setup
Installation
What to expect
IQ Pistol Series safes can be installed by your dealer or a qualified safe installer. Smaller models (IQ-2, IQ-3) can be positioned by two people; IQ-4 and IQ-5 typically require a trolley.
Floor mounting is required for state Cat H compliance. IQ Series safes include 4 internal recessed bolt holes plus 2 rear or side fixings for wall-anchored installations.
Installation checklist
-
01
Identify fixing bolt provisions — every IQ Pistol Series model has 4 × internal recessed bolt holes plus 2 × rear or side internal fixings. Floor mounting is required for state Cat H compliance.
-
02
Identify install position with access clearance (allow for door swing and handing)
-
03
Confirm delivery access route (doorways, corridors, stairs)
-
04
Schedule installation through your dealer — most offer delivery + install as a package
-
05
Keep installation certificate for insurance records
Base Anchoring Provisions
Top-view footprint of each IQ Pistol Series model showing the floor and side anchor bolt positions. All footprints shown to scale relative to each other.
Secondary Defence
Glass Relocker Protection
IQ Pistol Series safes include a spring-loaded case relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
How it works
A thin glass plate is embedded behind the primary lock body. If a drilling, punch, or torch attack breaks the glass, spring-loaded secondary bolts deploy and jam the locking mechanism. Once activated, the safe cannot be opened even if the primary lock is subsequently bypassed — it requires professional recovery by a qualified safe technician.
The relocker is a permanent protection feature, not a consumable. It exists to make the safe effectively unusable to an attacker even if they partially succeed against the primary lock.
If your relocker activates
If you cannot open your safe and suspect the relocker has engaged (usually after attempted forced entry), contact your Dominator dealer immediately. Do not attempt forced opening — this can cause permanent damage to the safe body.
A qualified safe technician can recover the relocker and restore normal operation. The safe itself remains structurally sound and can usually return to service after a relocker recovery.
Maintenance and Servicing
IQ Pistol Series safes require minimal maintenance. Wipe pistol hangers and shelving with a dry cloth as part of regular firearms maintenance. Lubricate locks and hinges occasionally and replace electronic lock batteries annually under Power for Life.
Every 12 months
Battery replacement (electronic/biometric locks)
Redeem your free battery through Power for Life. Replace before low-battery warnings, not after.
Every 12 months
Lock lubrication (mechanical dials)
Apply a drop of lock-grade lubricant to the dial spindle annually. Avoid WD-40 or general-purpose oils — they can gum up precision movements.
Every 12 to 24 months, depending if commercial or domestic use
Professional service
Book a qualified safe technician to inspect hinges, bolt work, and relocker mechanism. Typical service takes 30–60 minutes.
Every 5 years
Seal inspection
Check fire seals (where fitted) for compression and integrity. Replace if damaged.
Support
Troubleshooting
IQ Pistol Series safes include a spring-loaded case relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
Electronic lock won't open — no response from keypad.
Battery is most likely depleted. Replace the 9V battery and try your code again. Use a brand-new Duracell 9V Alkaline battery only. If the keypad still doesn’t respond, contact your dealer for diagnosis.
Electronic lock responds but rejects correct code.
Mechanical dial won't open — combination correct but bolts don't retract.
Lock is working, but handle does not unlock.
Safe door is difficult to open or close.
Safe is damaged or inoperable after attempted forced entry.
Still Stuck?
Contact your Dominator dealer for support, or call 1300 366 462 for direct assistance.
Pricing and availability through our dealer network.
With dealers across Australia and New Zealand, there's a Dominator specialist near you.
IQ Pistol Series
Compact pistol safes for handgun storage, with fire-rated construction, quick-access locks and AS-compliant design.
UC Series
Compact postal-slot deposit safes for under-counter cash drops, with a letterbox-style slot and secure separate access.
GC Series
Gun cabinets and premium gun safes for licensed firearm owners. Australian-compliant configurations from cabinet through to fire-rated.
DR Series
Compact drug safes for clinics and pharmacies, with cash ratings and the security construction needed for restricted-substance storage.
DF Series
In-floor safes that disappear into concrete slabs. Discreet, hard to remove, and fitted with reinforced base plates.
DD Series
Tilt-drawer deposit safes for retail and hospitality. Drop cash without opening the safe, with insurable cash ratings up to $30,000.
FA Series
Commercial-grade fire-resistant safes built for offices and retail, with higher cash ratings and 105-minute CNS fire certification.
FX Series
High-security TL-rated commercial safes with heavier wall construction and cash ratings up to $450,000 for serious storage.
Infinity Safes
Your IQ Pistol Series Safe. Elevated Beyond Recognition. Bespoke interiors, premium finishes, and watch winders — built on the same proven security platform you trust.
Infinity Safes takes the security platform you’ve chosen and transforms it into something genuinely extraordinary. Custom paint, polished hardware, fitted interiors and bespoke finishes — every element designed, finished, and installed in Perth.
If your IQ Pistol Series safe is going somewhere it needs to look exceptional — a dedicated handgun room or premium collection display — Infinity is the answer.
