ACT
Concealed installation
Set into a concrete floor with only the lid visible — easily covered by carpet, tiles, or floor furniture. The DF Series is the safe you can't see.
In-Floor Series
DF Series High-security commercial and domestic safes
The DF Series is Dominator's range of concealed in-floor safes — concrete-set into your floor and out of sight when not in use. Four models from the compact DF-1 through to the wide-format DF-4. Designed for homes and businesses that want maximum concealment with no visible safe footprint above the floor.
Why DF Series
Engineered for concealment.
Solid steel construction
Removable lid on DF-1 plus full bolt work on DF-2 through DF-4. Insurable cash ratings up to $20,000 and valuables up to $200,000.
Poured-concrete fixing
Permanently set into a concrete pour for the strongest possible installation. No bolts to defeat — the safe is part of the floor itself.
Models
Choose your DF Series safe
DF-1
While the DF-1 is the smallest in the series, it’s still large enough to securely store treasured valuables inside. With a removable lid and versatile locking options, the DF-1 is the perfect domestic below ground safe.
- External height
- 215 mm
- Weight
- 21 kg
- Capacity
- 9 L
- Locking bolts
- 1 × 25mm
Full specifications
Dimensions & Weight
- External
- 215 × 240 × 320 mm
- Internal
- 205 × 230 × 190 mm
- Total weight
- 21 kg
- Capacity
- 9 L
Interior Fittings
- Shelves
- 0
Door & Clearance
- Door thickness
- 12 mm
- Body thickness
- 4 mm
- Overall door thickness
- 12 mm
Locking & Fixing
- Locking bolts
- 1 × 25mm
Packaged & Shipping
- Packaged (H × W × D)
- 0.29 × 0.3 × 0.36 m
- Packaged weight
- 23 kg
- Pack type
- Carton
Ratings
- Cash rating
- $10,000
- Insurable valuables
- Up to $100,000
Notes
- Notes
- *260mm x 280mm base plate

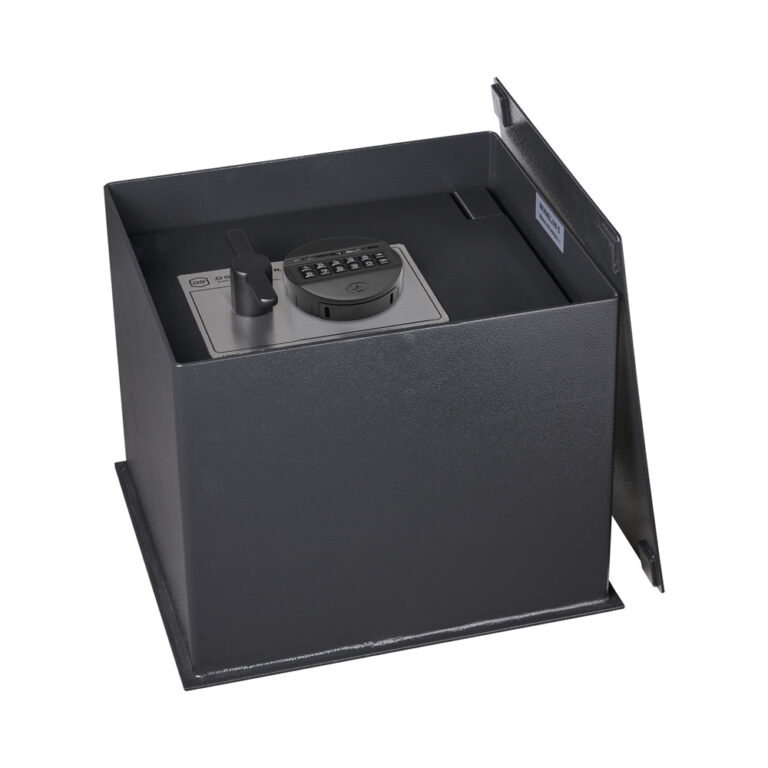

DF-2
An efficient use of space, additional locking points and increased security features found in the DF-2 safe allow it to provide unrivalled value for money.
- External height
- 325 mm
- Weight
- 44 kg
- Capacity
- 19 L
- Locking bolts
- 5 × Ø20
Full specifications
Dimensions & Weight
- External
- 325 × 360 × 325 mm
- Internal
- 315 × 350 × 170 mm
- Total weight
- 44 kg
- Capacity
- 19 L
Interior Fittings
- Shelves
- 0
Door & Clearance
- Door thickness
- 20 mm
- Body thickness
- 4 mm
- Overall door thickness
- 20 mm
Locking & Fixing
- Locking bolts
- 5 × Ø20
Packaged & Shipping
- Packaged (H × W × D)
- 0.4 × 0.6 × 0.46 m
- Packaged weight
- 45 kg
- Pack type
- Skid
Ratings
- Cash rating
- $20,000
- Insurable valuables
- Up to $200,000

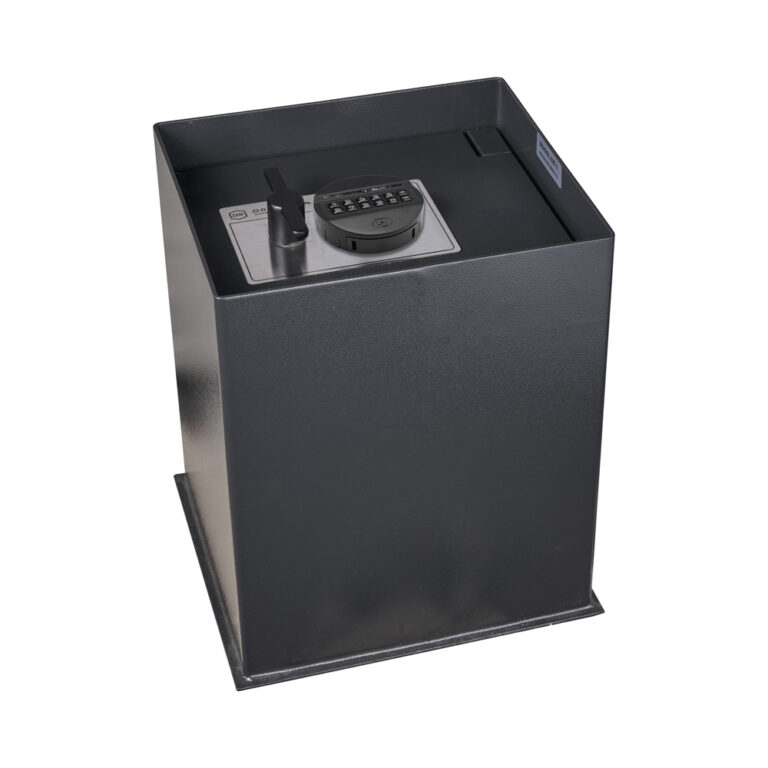

DF-3
Commercial internal sizing in the DF-3 safe allows for higher than average storage capacity requirements without needing to pay for unnecessary commercial safe features.
- External height
- 325 mm
- Weight
- 49 kg
- Capacity
- 35 L
- Locking bolts
- 5 × Ø20
Full specifications
Dimensions & Weight
- External
- 325 × 360 × 445 mm
- Internal
- 315 × 350 × 320 mm
- Total weight
- 49 kg
- Capacity
- 35 L
Interior Fittings
- Shelves
- 0
Door & Clearance
- Door thickness
- 20 mm
- Body thickness
- 4 mm
- Overall door thickness
- 20 mm
Locking & Fixing
- Locking bolts
- 5 × Ø20
Packaged & Shipping
- Packaged (H × W × D)
- 0.4 × 0.6 × 0.6 m
- Packaged weight
- 50 kg
- Pack type
- Skid
Ratings
- Cash rating
- $20,000
- Insurable valuables
- Up to $200,000
DF-4
The increased height in the DF-4 improves accessibility without imposing further on floor space. The narrow profile allows installations where limited depth of space is available.
- External height
- 340 mm
- Weight
- 57 kg
- Capacity
- 59 L
- Locking bolts
- 5 × Ø20
Full specifications
Dimensions & Weight
- External
- 340 × 595 × 460 mm
- Internal
- 335 × 585 × 300 mm
- Total weight
- 57 kg
- Capacity
- 59 L
Interior Fittings
- Shelves
- 0
Door & Clearance
- Door thickness
- 20 mm
- Body thickness
- 4 mm
- Overall door thickness
- 20 mm
Locking & Fixing
- Locking bolts
- 5 × Ø20
Packaged & Shipping
- Packaged (H × W × D)
- 0.4 × 0.65 × 0.6 m
- Packaged weight
- 60 kg
- Pack type
- Skid
Ratings
- Cash rating
- $20,000
- Insurable valuables
- Up to $200,000
At a Glance
DF Series size comparison
All DF Series safes drawn to actual relative scale. DF-1 at 215mm through to DF-4 at 340mm height — designed to sit flush within a standard floor slab.
Trust and Insurance
Certifications and Insurance
Cash and insurable valuables ratings on every DF Series model. Concealed installation gives DF Series a security advantage on top of its rated construction.
Concealed
Hidden in-floor installation
Solid Steel
Heavy-gauge steel body
Cash Rating
$10,000 – $20,000 AUD
Valuables
$100,000 – $200,000 AUD
Power for Life
Free batteries — included
Best Warranty
Australia's best warranty
5-Year Warranty
Standard across the range
Independently tested burglary protection
DF Series safes derive a significant portion of their security from the way they’re installed. Set into a poured concrete floor, there are no removable bolts to defeat and the safe cannot be carried away. Combined with hardened steel construction and concealed installation, DF Series provides a layered security profile that’s hard to match.
Insurance ratings (AUD)
DF Series safes carry insurable ratings that your insurer can use to set sub-limits for cash and valuables:
- Cash rating: $10,000 (DF-1) – $20,000 (DF-2 to DF-4)
- Valuables rating: $100,000 (DF-1) – $200,000 (DF-2 to DF-4)
Specific ratings vary by model and lock specification. Your dealer can confirm the exact rating for the model you’re considering.
Concealed in-floor installation provides additional protection beyond the rated construction.
Specifications
The full DF Series lineup
| Model | External (H × W × D) | Internal (H × W × D) | Weight | Capacity | Locking bolts | Notes |
|---|---|---|---|---|---|---|
| DF-1 | 215 × 240 × 320 | 205 × 230 × 190 | 21 kg | 9 L | 1 × 25mm | *260mm x 280mm base plate |
| DF-2 | 325 × 360 × 325 | 315 × 350 × 170 | 44 kg | 19 L | 5 × Ø20 | |
| DF-3 | 325 × 360 × 445 | 315 × 350 × 320 | 49 kg | 35 L | 5 × Ø20 | |
| DF-4 | 340 × 595 × 460 | 335 × 585 × 300 | 57 kg | 59 L | 5 × Ø20 |
Specs Detail
Technical Information
Construction
- Heavy-gauge solid steel body and lid
- Locking points: 1 (DF-1), 5 (DF-2, DF-3, DF-4)
- Lid lifts off DF-1; hinged door on DF-2 through DF-4
- Anti-drill plating around lock
Installation
- Poured-concrete fixing — permanent installation
- Designed for new-build or floor-replacement projects
- Lid sits flush with finished floor surface
- Lead times: typically in stock, or approx. 1 week through your dealer
Capacity
- DF-1: 9L — compact, watches and small valuables
- DF-2: 19L — increased depth for documents
- DF-3: 35L — commercial internal sizing
- DF-4: 59L — wide-format for portfolios and larger items
Engineering
Construction and Security Features
DF Series safes are engineered around the unique advantages of in-floor installation. Every feature below is standard across the range.
Concealed installation
Set into concrete floor — only the lid is visible, easily covered by carpet, tiles or floor furniture.
Poured concrete fixing
Permanently set into a concrete pour for the strongest installation possible. No bolts to defeat.
Solid steel construction
Heavy-gauge steel body and lid throughout. Reinforced framework provides resistance to forced-entry attacks.
Anti-drill plating
Hardened steel anti-drill plating around the lock and a relocker that engages if the lock is attacked.
5-point bolt work (DF-2 onwards)
DF-2, DF-3 and DF-4 use 5-point handle-driven bolt work for resistance to prying and forced entry.
Direct locking on DF-1
DF-1 uses a single-point direct-locking configuration with removable lid — compact and effective for the smallest installations.
Universal lock footprint
Standardised lock mounting allows easy conversion between key, combination and electronic lock types.
Textured black paint
Durable textured black paint finish provides lasting protection inside concealed installations.
Available in base mounting
DF Series safes are designed for permanent in-floor installation in a poured concrete slab. Confirm install method and clearances with your dealer before pour.
Lock Options
Lock Options and Upgrades
Every DF Series model is available in three lock configurations as standard. All lock types use a universal footprint, meaning conversion between types is straightforward for a qualified safe technician.
DS-xD
Tecnosicurezza Pulse Electronic
Tecnosicurezza Pulse 2-user electronic safe lock
Operation
6-digit user codes, 2 user capability standard
Power
9V battery (externally changeable) — covered by Power for Life
Best For
Daily access, multi-user environments, fast entry
DS-xC
Group 2 Combination Dial
Group 2 certified 3-wheel combination
Operation
Precision mechanical dial, 3 number combination
Power
None required — works indefinitely without batteries
Best For
Buyers who value simplicity and longevity, environments with no battery maintenance preference
DS-xK
Ross 700 Key Lock
Ross 700 high-security key lock
Operation
Traditional key-turn mechanism
Power
None required
Best For
Buyers who prefer key-access reliability and don't need to share access frequently.
Note
Highest quality mechanical key lock available — can also be specified as a secondary lock on DS-2, DS-3, DS-4 and DS-5 for increased security cash rating
Upgrade
Secondary Key Lock Upgrade
DF Series in-floor safes can be specified with a secondary Ross 700 key lock for layered security on selected models. Your dealer can provide pricing and rating documentation.
Universal Lock Footprint
DF Series safes use a universal lock mounting footprint — meaning any of the three lock types can be retrofitted to an existing safe by a qualified safe technician.
Configure
Accessories and Spare Parts
Configure your DF Series safe with the accessories below. All accessories are available through your Dominator dealer at point of order or as retrofits.
Lid Covers
Decorative lid covers and floor inserts to disguise the safe lid as part of the floor finish.
DF-COVER-CARPET
Carpet-faced lid insert
DF-COVER-TILE
Tile-faced lid insert
Installation Kits
Concrete formwork and installation hardware to suit each DF Series model.
DF-1KIT
Installation kit and formwork to suit DF-1
DF-2KIT
Installation kit and formwork to suit DF-2
DF-3KIT
Installation kit and formwork to suit DF-3
DF-4KIT
Installation kit and formwork to suit DF-4
For Specifiers
DS Series Specification Tips
Plan installation at floor pour stage
DF Series safes are designed to be installed when concrete is poured — retrofitting into an existing floor requires breaking out and re-pouring. Plan installation at the build stage where possible.
Choose by what you'll cover the lid with
DF-1 has a removable lid; DF-2 through DF-4 have hinged doors. If you’re covering with carpet or a rug, all four work; for tile or polished concrete you’ll typically want a removable cover.
DF-3 vs DF-4 — depth vs width
DF-3 is the same height as DF-2 but with greater depth (35L). DF-4 is wider (595mm) with similar depth — better for portfolios, jewellery rolls and larger flat items.
Lifetime Initiative
Power for Life Free batteries for the lifetime of your safe.
Every DS Series safe with an electronic or biometric lock is covered by our Power for Life initiative. Once a year, you can redeem a free replacement battery at any authorised Dominator dealer — no receipts, no conditions, for as long as you own the safe.
It's our way of making sure your safe stays accessible for decades, not just years.
Power for Life applies across the full range: HS Series, DS Series, GC Series (gun cabinets), FA Series and FX Series.
STEP 01
Receive your e-voucher
After registering your warranty
STEP 02
Visit your dealer once a year
With the voucher on your phone
STEP 03
Walk out with a free battery
Recommended Duracell Procell Alkaline battery
Setup
Installation
What to expect
DF Series safes must be installed at floor pour stage by your dealer or a qualified safe installer working alongside your builder. Once installed, the lid sits flush with the finished floor and is easily concealed.
Unlike floor-bolted safes, a DF Series safe cannot be removed without destroying the surrounding floor — making concealment and structural integration its primary security features.
Installation checklist
-
01
Coordinate installation with builder at floor-pour stage
-
02
Identify install position with access clearance for the lid/door
-
03
Plan finished floor covering (carpet, tile, polished concrete)
-
04
Confirm delivery access route to install location
-
05
Keep installation certificate for insurance records
Base Anchoring Provisions
Top-view footprint of each DF Series model showing concrete-fixing position. All footprints shown to scale relative to each other.
Secondary Defence
Glass Relocker Protection
DF Series safes include a spring-loaded case relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
How it works
A thin glass plate is embedded behind the primary lock body. If a drilling, punch, or torch attack breaks the glass, spring-loaded secondary bolts deploy and jam the locking mechanism. Once activated, the safe cannot be opened even if the primary lock is subsequently bypassed — it requires professional recovery by a qualified safe technician.
The relocker is a permanent protection feature, not a consumable. It exists to make the safe effectively unusable to an attacker even if they partially succeed against the primary lock.
If your relocker activates
If you cannot open your safe and suspect the relocker has engaged (usually after attempted forced entry), contact your Dominator dealer immediately. Do not attempt forced opening — this can cause permanent damage to the safe body.
A qualified safe technician can recover the relocker and restore normal operation. The safe itself remains structurally sound and can usually return to service after a relocker recovery.
Maintenance and Servicing
DF Series safes require minimal maintenance but benefit from occasional service to keep locks and hinges operating smoothly through years of use.
Every 12 months
Battery replacement (electronic/biometric locks)
Redeem your free battery through Power for Life. Replace before low-battery warnings, not after.
Every 12 months
Lock lubrication (mechanical dials)
Apply a drop of lock-grade lubricant to the dial spindle annually. Avoid WD-40 or general-purpose oils — they can gum up precision movements.
Every 12 to 24 months, depending if commercial or domestic use
Professional service
Book a qualified safe technician to inspect hinges, bolt work, and relocker mechanism. Typical service takes 30–60 minutes.
Every 5 years
Seal inspection
Check fire seals (where fitted) for compression and integrity. Replace if damaged.
Support
Troubleshooting
DF Series safes include a spring-loaded case relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
Electronic lock won't open — no response from keypad.
Battery is most likely depleted. Replace the 9V battery and try your code again. Use a brand-new Duracell 9V Alkaline battery only. If the keypad still doesn’t respond, contact your dealer for diagnosis.
Electronic lock responds but rejects correct code.
Mechanical dial won't open — combination correct but bolts don't retract.
Lock is working, but handle does not unlock.
Safe door is difficult to open or close.
Safe is damaged or inoperable after attempted forced entry.
Still Stuck?
Contact your Dominator dealer for support, or call 1300 366 462 for direct assistance.
Pricing and availability through our dealer network.
With dealers across Australia and New Zealand, there's a Dominator specialist near you.
IQ Pistol Series
Compact pistol safes for handgun storage, with fire-rated construction, quick-access locks and AS-compliant design.
UC Series
Compact postal-slot deposit safes for under-counter cash drops, with a letterbox-style slot and secure separate access.
GC Series
Gun cabinets and premium gun safes for licensed firearm owners. Australian-compliant configurations from cabinet through to fire-rated.
DR Series
Compact drug safes for clinics and pharmacies, with cash ratings and the security construction needed for restricted-substance storage.
DF Series
In-floor safes that disappear into concrete slabs. Discreet, hard to remove, and fitted with reinforced base plates.
DD Series
Tilt-drawer deposit safes for retail and hospitality. Drop cash without opening the safe, with insurable cash ratings up to $30,000.
FA Series
Commercial-grade fire-resistant safes built for offices and retail, with higher cash ratings and 105-minute CNS fire certification.
FX Series
High-security TL-rated commercial safes with heavier wall construction and cash ratings up to $450,000 for serious storage.
Infinity Safes
Your DF Series Safe. Elevated Beyond Recognition. Bespoke interiors, premium finishes, and watch winders — built on the same proven security platform you trust.
Infinity Safes takes the security platform you’ve chosen and transforms it into something genuinely extraordinary. Custom paint, polished hardware, fitted interiors and bespoke finishes — every element designed, finished, and installed in Perth.
If your DF Series safe is going somewhere it needs to look exceptional — an in-floor installation in a premium home or boutique — Infinity is the answer.
