UL-TL15 certified
Independently tested and certified to Underwriters Laboratories TL15 burglary protection standard. The FA Series is built around a TDR (Tool, Drill, Resistant) door with 60mm high-pressured concrete composite throughout.
Commercial High-Security Series
FA Series High-security commercial and domestic safes
The FA Series is Dominator's UL-TL15 certified commercial high-security range — built for businesses that hold serious cash and valuables on-premises. Six models from FA-65 through FA-180, all with 60mm high-density concrete composite construction, TDR door, and insurable cash ratings up to $250,000.
Why FA Series
Engineered to UL-TL15 standard.
$250,000 cash rating
Insurable cash rating $250,000 and valuables rating up to $2.5 million on every FA Series model. Independent ratings your insurer can use to set sub-limits.
Built to outlast the building
Heavy-gauge steel and concrete composite construction. Up to 18 chrome-plated locking bolts on FA-180. FA Series safes weigh from 401kg (FA-65) to over 1.5 tonnes (FA-180).
Models
Choose your FA Series safe

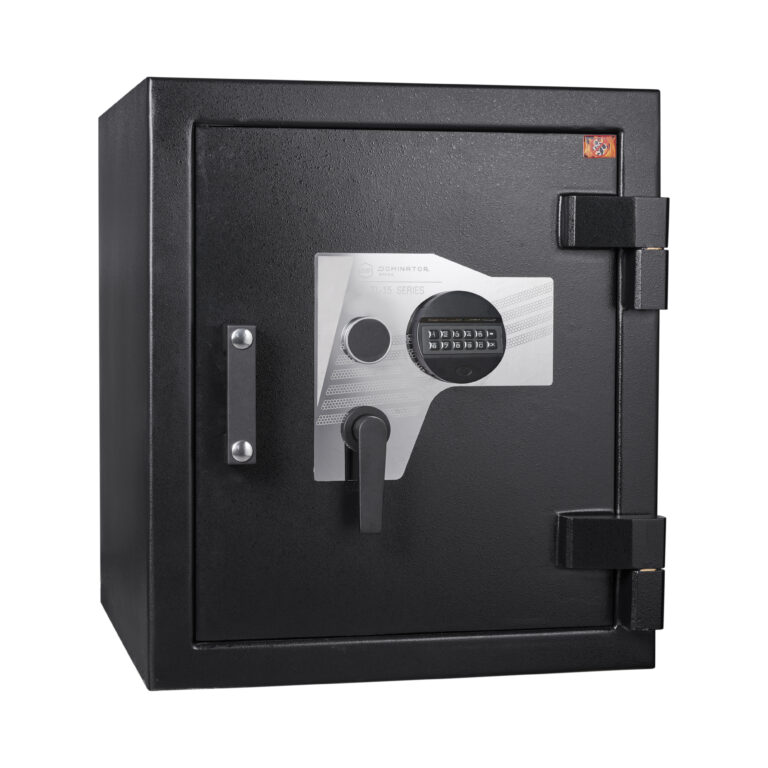

FA-65
While the FA-65 is the smallest in the series, it does not take anything away from the extreme security that comes with all FA series safes. UL Certified security ratings, using 4 directional boltwork, locked by 2 independent locking devices the FA-65 allows high value items and cash to be secured within a compacted design.
- External height
- 650 mm
- Weight
- 401 kg
- Capacity
- 75 L
- Locking bolts
- 10 × Ø40
Full specifications
Dimensions & Weight
- External
- 650 × 570 × 600 mm
- Internal
- 500 × 415 × 360 mm
- Total weight
- 401 kg
- Door weight
- 71 kg
- Body weight
- 330 kg
- Capacity
- 75 L
Interior Fittings
- Shelves
- 1
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 1040 mm
- Door open width
- 1025 mm
- Side clearance
- 950 mm
- Handle projection
- 40 mm
- Door thickness
- 70 mm
- Body thickness
- 60 mm
- Overall door thickness
- 153 mm
Locking & Fixing
- Locking bolts
- 10 × Ø40
- Fixing bolts
- 2 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 0.76 × 0.65 × 0.85 m
- Packaged weight
- 415 kg
- Pack type
- Skid
Ratings
- Cash rating
- $250,000
- Insurable valuables
- Up to $2.5 million
- Fire rating
- 105 minute CNS Tested

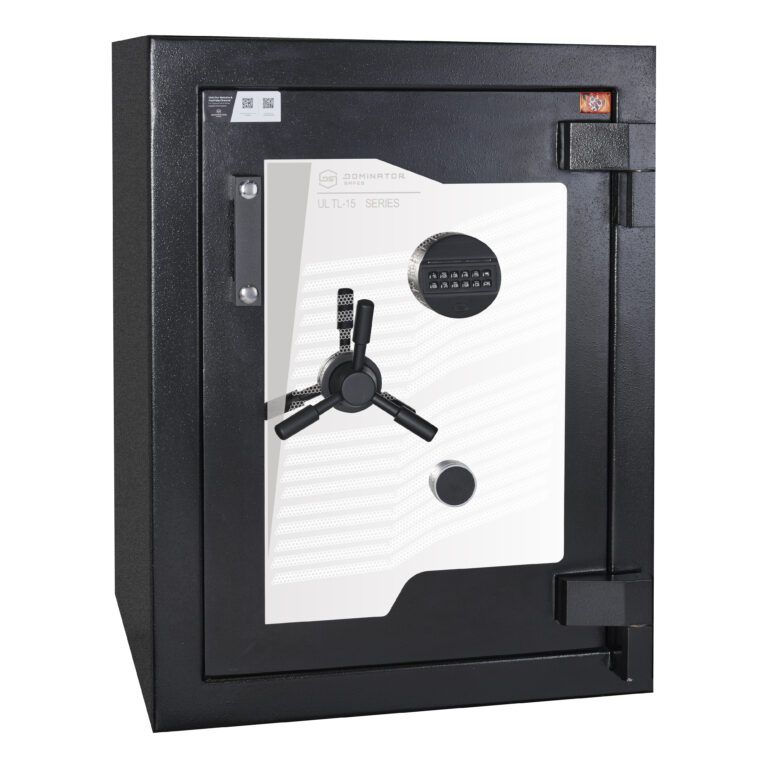

FA-80
Like the FA-65 the FA-80 might be one of the smaller sized units but still backs itself up with all the security one could need. With all FA series it has 2 independent locking devices with a TDR door making the FA-80 the perfect safe for those high valuables with a little more internal space to play with.
- External height
- 800 mm
- Weight
- 473 kg
- Capacity
- 117 L
- Locking bolts
- 10 × Ø40
Full specifications
Dimensions & Weight
- External
- 800 × 600 × 600 mm
- Internal
- 670 × 465 × 375 mm
- Total weight
- 473 kg
- Door weight
- 91 kg
- Body weight
- 382 kg
- Capacity
- 117 L
Interior Fittings
- Shelves
- 2
Door & Clearance
- Door swing angle
- 140°
- Door open height
- 1070 mm
- Door open width
- 1130 mm
- Side clearance
- 950 mm
- Handle projection
- 70 mm
- Door thickness
- 70 mm
- Body thickness
- 60 mm
- Overall door thickness
- 153 mm
Locking & Fixing
- Locking bolts
- 10 × Ø40
- Fixing bolts
- 2 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 0.8 × 0.7 × 0.95 m
- Packaged weight
- 532 kg
- Pack type
- Skid
Ratings
- Cash rating
- $250,000
- Insurable valuables
- Up to $2.5 million
- Fire rating
- 105 minute CNS Tested

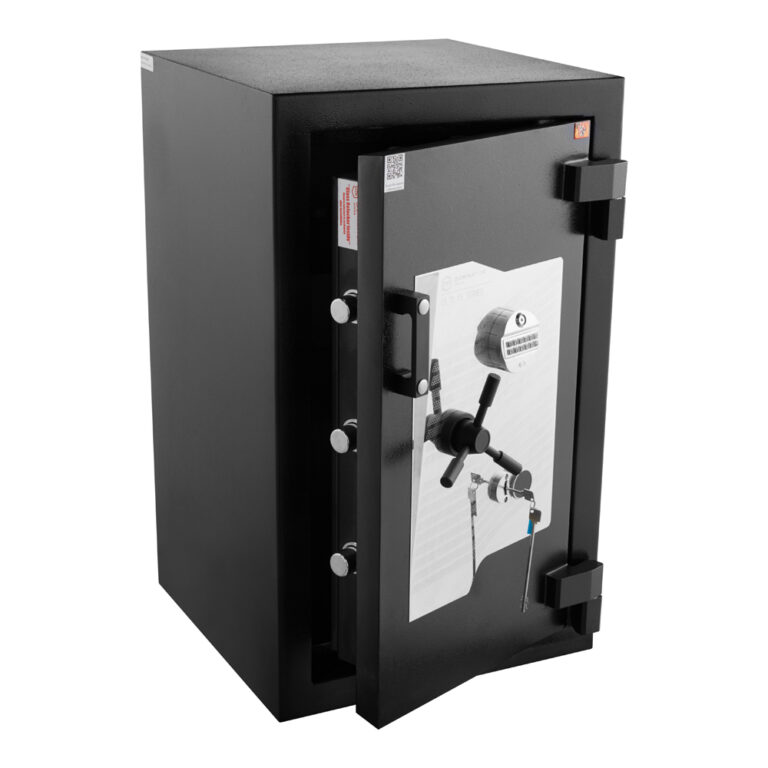

FA-100
FA-100 provides maximum level of security in a medium sized commercial safe. With 60mm of high-pressured unique concrete composite with TDR door giving it the UL-TL15 Certification.
- External height
- 1000 mm
- Weight
- 590 kg
- Capacity
- 150 L
- Locking bolts
- 10 × Ø40
Full specifications
Dimensions & Weight
- External
- 1000 × 600 × 600 mm
- Internal
- 870 × 465 × 370 mm
- Total weight
- 590 kg
- Door weight
- 115 kg
- Body weight
- 475 kg
- Capacity
- 150 L
Interior Fittings
- Shelves
- 3
Door & Clearance
- Door swing angle
- 140°
- Door open height
- 1070 mm
- Door open width
- 1130 mm
- Side clearance
- 950 mm
- Handle projection
- 70 mm
- Door thickness
- 70 mm
- Body thickness
- 60 mm
- Overall door thickness
- 153 mm
Locking & Fixing
- Locking bolts
- 10 × Ø40
- Fixing bolts
- 2 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 0.8 × 0.7 × 1.12 m
- Packaged weight
- 627 kg
- Pack type
- Skid
Ratings
- Cash rating
- $250,000
- Insurable valuables
- Up to $2.5 million
- Fire rating
- 105 minute CNS Tested

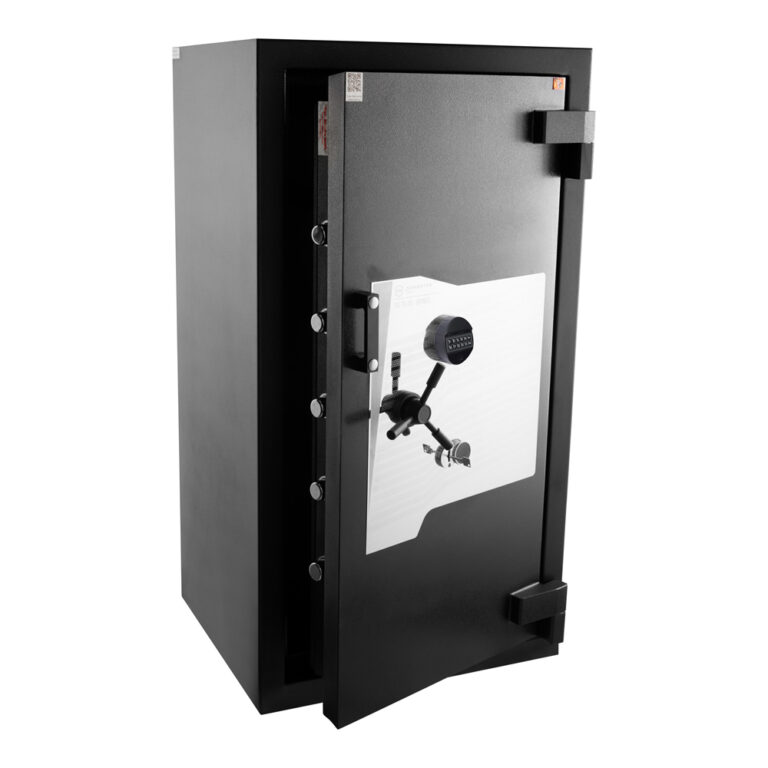

FA-120
FA-120 provides maximum level of security in a medium sized commercial safe. With 60mm of high-pressured unique concrete composite with TDR door giving it the UL-TL15 Certification.
- External height
- 1200 mm
- Weight
- 765 kg
- Capacity
- 202 L
- Locking bolts
- 12 × Ø40
Full specifications
Dimensions & Weight
- External
- 1200 × 650 × 600 mm
- Internal
- 1070 × 510 × 370 mm
- Total weight
- 765 kg
- Door weight
- 141 kg
- Body weight
- 624 kg
- Capacity
- 202 L
Interior Fittings
- Shelves
- 3
Door & Clearance
- Door swing angle
- 140°
- Door open height
- 1165 mm
- Door open width
- 1185 mm
- Side clearance
- 1030 mm
- Handle projection
- 70 mm
- Door thickness
- 70 mm
- Body thickness
- 60 mm
- Overall door thickness
- 153 mm
Locking & Fixing
- Locking bolts
- 12 × Ø40
- Fixing bolts
- 2 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 1.34 × 0.74 × 0.85 m
- Packaged weight
- 781 kg
- Pack type
- Skid
Ratings
- Cash rating
- $250,000
- Insurable valuables
- Up to $2.5 million
- Fire rating
- 105 minute CNS Tested

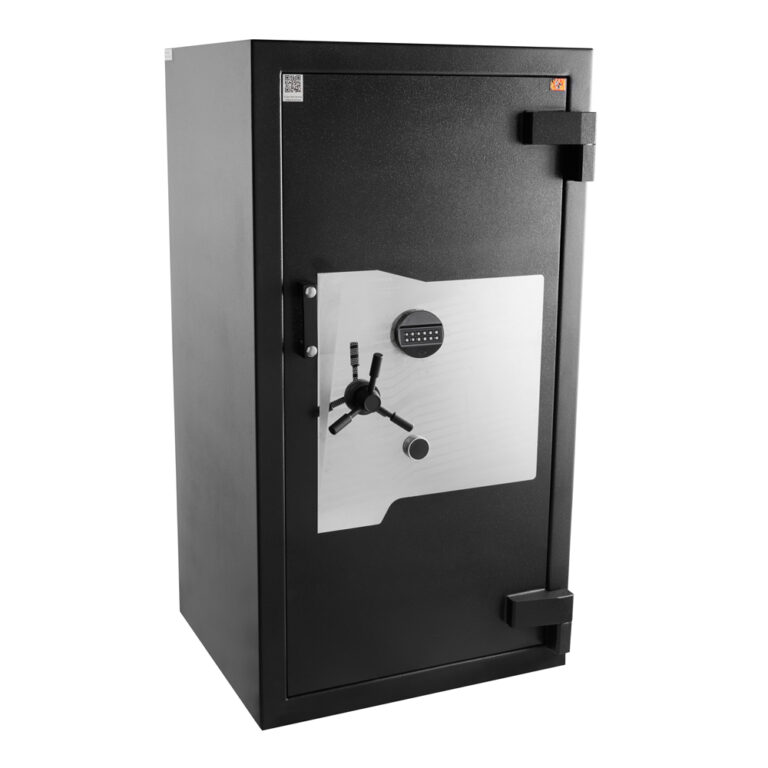

FA-140
At almost 1 tonne in weight and offering over 300L of internal security storage the FA-140 now fill the large volume requirement with the highest of security.
- External height
- 1400 mm
- Weight
- 943 kg
- Capacity
- 328 L
- Locking bolts
- 14 × Ø40
Full specifications
Dimensions & Weight
- External
- 1400 × 750 × 650 mm
- Internal
- 1250 × 610 × 430 mm
- Total weight
- 943 kg
- Door weight
- 202 kg
- Body weight
- 741 kg
- Capacity
- 328 L
Interior Fittings
- Shelves
- 3
Door & Clearance
- Door swing angle
- 140°
- Door open height
- 1375 mm
- Door open width
- 1330 mm
- Side clearance
- 1250 mm
- Handle projection
- 70 mm
- Door thickness
- 70 mm
- Body thickness
- 60 mm
- Overall door thickness
- 153 mm
Locking & Fixing
- Locking bolts
- 14 × Ø40
- Fixing bolts
- 2 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 1.53 × 0.8 × 0.84 m
- Packaged weight
- 955 kg
- Pack type
- Skid
Ratings
- Cash rating
- $250,000
- Insurable valuables
- Up to $2.5 million
- Fire rating
- 105 minute CNS Tested

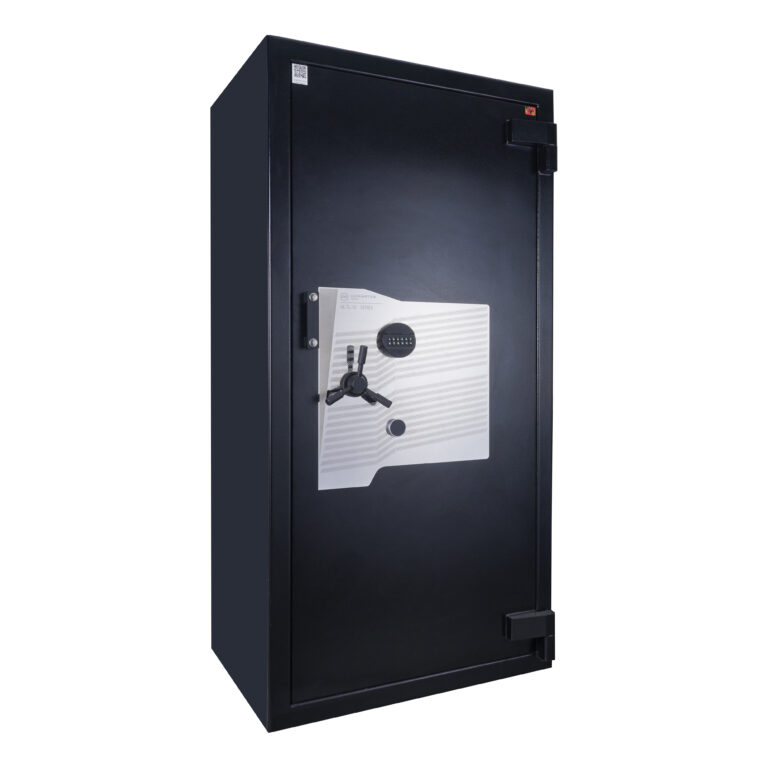

FA-180
At 1.8m tall, the physically imposing FA-180 provides high level security for large volume storage applications. 16 locking bolts secure the door of this 1500kg safe.
- External height
- 1800 mm
- Weight
- 1557 kg
- Capacity
- 635 L
- Locking bolts
- 18 × Ø40
Full specifications
Dimensions & Weight
- External
- 1800 × 880 × 740 mm
- Internal
- 1670 × 745 × 510 mm
- Total weight
- 1557 kg
- Door weight
- 314 kg
- Body weight
- 1243 kg
- Capacity
- 635 L
Interior Fittings
- Shelves
- 4
Door & Clearance
- Door swing angle
- 140°
- Door open height
- 1640 mm
- Door open width
- 1550 mm
- Side clearance
- 1440 mm
- Handle projection
- 70 mm
- Door thickness
- 70 mm
- Body thickness
- 60 mm
- Overall door thickness
- 153 mm
Locking & Fixing
- Locking bolts
- 18 × Ø40
- Fixing bolts
- 2 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 1.92 × 0.97 × 0.93 m
- Packaged weight
- 1580 kg
- Pack type
- Skid
Ratings
- Cash rating
- $250,000
- Insurable valuables
- Up to $2.5 million
- Fire rating
- 105 minute CNS Tested
At a Glance
FA Series size comparison
All FA Series safes drawn to actual relative scale. FA-65 at 650mm through to FA-180 at 1800mm — with a 1700mm person silhouette for reference.
Trust and Insurance
Certifications and Insurance
Independently UL-TL15 tested and certified. $250,000 cash rating and $2.5 million valuables rating apply to every FA Series model.
UL-TL15
Independently Tested and Certified
Fire Resistant
Concrete composite construction
Cash Rating
$250,000 AUD
Valuables
$2.5 million AUD
Power for Life
Free batteries — included
Best Warranty
Australia's best warranty
5-Year Warranty
Standard across the range
Independently tested burglary protection
FA Series safes are independently tested and certified by Underwriters Laboratories to the TL15 burglary protection standard. The TDR (Tool, Drill, Resistant) door and 60mm high-pressured concrete composite body provide certified resistance to drilling, cutting and prying attacks.
International equivalents:
- EN 1143-1 Grade 4–5 (performance comparable)
- AS/NZS 3809:1998 Level 4 (performance comparable)
Insurance ratings (AUD)
FA Series safes carry insurable ratings that your business insurer can use to set sub-limits for cash and high-value goods stored on premises:
- Cash rating: $250,000 across the range
- Valuables rating: up to $2.5 million
For businesses holding higher cash sums, the FX Series provides $450,000 ratings. Your dealer can confirm exact ratings and provide documentation for insurance claims.
UL-TL15 certified across the full FA Series range — independent burglary-protection rating.
Specifications
The full FA Series lineup
| Model | External (H × W × D) | Internal (H × W × D) | Weight | Capacity | Locking bolts | Notes |
|---|---|---|---|---|---|---|
| FA-65 | 650 × 570 × 600 | 500 × 415 × 360 | 401 kg | 75 L | 10 × Ø40 | |
| FA-80 | 800 × 600 × 600 | 670 × 465 × 375 | 473 kg | 117 L | 10 × Ø40 | |
| FA-100 | 1000 × 600 × 600 | 870 × 465 × 370 | 590 kg | 150 L | 10 × Ø40 | |
| FA-120 | 1200 × 650 × 600 | 1070 × 510 × 370 | 765 kg | 202 L | 12 × Ø40 | |
| FA-140 | 1400 × 750 × 650 | 1250 × 610 × 430 | 943 kg | 328 L | 14 × Ø40 | |
| FA-180 | 1800 × 880 × 740 | 1670 × 745 × 510 | 1557 kg | 635 L | 18 × Ø40 |
Specs Detail
Technical Information
Door specifications
- TDR (Tool, Drill, Resistant) door — UL-TL15 certified
- 60mm high-pressured concrete composite body and door
- Locking bolts: chrome-plated, count scales 2 → 18 across the range
- Two independent locking devices on every model
- Hardened anti-drill plating, anti-punch plate, glass relocker
Weight and handling
- FA-65: 401kg | FA-80: 473kg | FA-100: 590kg
- FA-120: 765kg | FA-140: 943kg | FA-180: 1557kg
- Mechanical handling required for FA-100 and above
- Lead times: typically in stock, or approx. 1–2 weeks through your dealer
Clearance requirements
- Side clearance for door swing: 600mm+ recommended
- Recommended front clearance for access: add 700mm to door swing
- Floor load capacity must be confirmed for FA-140 / FA-180
Engineering
Construction and Security Features
FA Series safes are built to a higher engineering specification than any standard commercial safe — UL-TL15 certified construction designed to resist sustained tool attack. Every feature below is standard across the range.
UL-TL15 TDR door
Tool, Drill, Resistant door independently tested and certified by Underwriters Laboratories to the TL15 standard.
60mm concrete composite
High-pressured concrete composite throughout body and door — provides resistance to drilling, cutting, and torch attack.
Up to 18 locking bolts
Chrome-plated locking bolts with count scaling 2 → 18 across the range. FA-140 has 14 bolts, FA-180 has 18.
Two independent locks
Every FA Series model is supplied with two independent locking devices for layered security and dual-control access where required.
Anti-drill plating
Hardened steel anti-drill plating, anti-punch case plate, and glass panel relocker — all standard.
Glass panel relocker
Tempered glass panel relocker deploys secondary locking bolts if the primary lock is attacked.
Universal lock footprint
Standardised lock mounting allows easy conversion between key, combination and electronic lock types.
Textured black paint
Durable textured black paint with clear coating provides lasting finish resistant to scratches and corrosion.
Available in base mounting
Available in Left & Right Hand Hinge
FA Series safes can be specified left-hand or right-hand hinge. Standard stock is RHH. Confirm hinge handing and mechanical handling requirements with your dealer at time of order — FA-100 and above require trolley or forklift access for installation.
Lock Options
Lock Options and Upgrades
Every FA Series model is supplied with two independent locks as standard. The combination of two locks on a single safe is a key part of the UL-TL15 certification — providing dual-control access and layered security.
DS-xD
Tecnosicurezza Pulse Electronic
Tecnosicurezza Pulse 2-user electronic safe lock
Operation
6-digit user codes, 2 user capability standard
Power
9V battery (externally changeable) — covered by Power for Life
Best For
Daily access, multi-user environments, fast entry
DS-xC
Group 2 Combination Dial
Group 2 certified 3-wheel combination
Operation
Precision mechanical dial, 3 number combination
Power
None required — works indefinitely without batteries
Best For
Buyers who value simplicity and longevity, environments with no battery maintenance preference
DS-xK
Ross 700 Key Lock
Ross 700 high-security key lock
Operation
Traditional key-turn mechanism
Power
None required
Best For
Buyers who prefer key-access reliability and don't need to share access frequently.
Note
Highest quality mechanical key lock available — can also be specified as a secondary lock on DS-2, DS-3, DS-4 and DS-5 for increased security cash rating
Upgrade
Secondary Key Lock Upgrade
FA Series safes are supplied with two independent locks as standard — both locks must be opened to retract the bolts. Dealer can provide configuration details and pricing for upgrade or conversion between lock types.
Universal Lock Footprint
FA Series safes use a universal lock mounting footprint — meaning any of the three lock types can be retrofitted to an existing safe by a qualified safe technician.
Configure
Accessories and Spare Parts
Configure your FA Series safe with the accessories below. All accessories are available through your Dominator dealer at point of order or as retrofits.
Shelves
Additional adjustable shelves with fitting clips. Sized to suit the relevant FA Series model.
FA-65SHELF
Adjustable shelf and clips to suit FA-65
FA-80SHELF
Adjustable shelf and clips to suit FA-80
FA-100SHELF
Adjustable shelf and clips to suit FA-100
FA-140SHELF
Adjustable shelf and clips to suit FA-140
Jewellery and Watch Trays
Velvet-lined trays for jewellery, watches and small valuables.
FA-JEWEL-S
Small velvet-lined tray
FA-JEWEL-M
Medium velvet-lined tray
FA-JEWEL-L
Large velvet-lined tray
Stands and Plinths
Optional plinths to raise the safe off the floor for ergonomic access.
FA-STAND300
300mm steel stand/plinth
FA-STAND600
600mm steel stand/plinth
For Specifiers
DS Series Specification Tips
Sizing scales with insurance, not just storage
Every FA Series model carries the same $250,000 / $2.5M ratings — choose by storage volume and access ergonomics, not by rating. FA-100 is the most common single-business specification at 150L; FA-140 doubles capacity for high-volume operations.
UL-TL15 vs UL-RSC
FA Series is certified to UL-TL15 — a higher burglary standard than the DS Series UL-RSC certification. TL15 specifies tested resistance to specified tools for 15 minutes. Check insurance terms for which certification level your premium is calculated against.
Two independent locks standard
All FA Series models ship with two independent locking devices as standard. This dual-control configuration is part of the UL-TL15 certification and provides layered security for high-value applications.
Lifetime Initiative
Power for Life Free batteries for the lifetime of your safe.
Every DS Series safe with an electronic or biometric lock is covered by our Power for Life initiative. Once a year, you can redeem a free replacement battery at any authorised Dominator dealer — no receipts, no conditions, for as long as you own the safe.
It's our way of making sure your safe stays accessible for decades, not just years.
Power for Life applies across the full range: HS Series, DS Series, GC Series (gun cabinets), FA Series and FX Series.
STEP 01
Receive your e-voucher
After registering your warranty
STEP 02
Visit your dealer once a year
With the voucher on your phone
STEP 03
Walk out with a free battery
Recommended Duracell Procell Alkaline battery
Setup
Installation
What to expect
FA Series safes require professional installation by your dealer or a qualified safe installer. FA-100 and above require mechanical handling — a trolley, pallet jack or forklift to position the safe.
Floor bolting is essential, even for safes weighing over a tonne. FA Series safes include 2 internal recessed bolt-down provisions on every model. Confirm floor load capacity for FA-140 (943kg) and FA-180 (1557kg) before delivery.
Installation checklist
-
01
Identify fixing bolt provisions — every FA Series model has 2 × internal recessed bolt holes. Confirm hole positions and floor load capacity with your dealer before drilling.
-
02
Identify install position with access clearance (allow for door swing and handing)
-
03
Confirm delivery access route (doorways, corridors, stairs)
-
04
Schedule installation through your dealer — most offer delivery + install as a package
-
05
Keep installation certificate for insurance records
Base Anchoring Provisions
Top-view footprint of each FA Series model showing the two internal recessed floor anchor bolt positions. All footprints shown to scale relative to each other.
Secondary Defence
Glass Relocker Protection
FA Series safes include a glass relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
How it works
A thin glass plate is embedded behind the primary lock body. If a drilling, punch, or torch attack breaks the glass, spring-loaded secondary bolts deploy and jam the locking mechanism. Once activated, the safe cannot be opened even if the primary lock is subsequently bypassed — it requires professional recovery by a qualified safe technician.
The relocker is a permanent protection feature, not a consumable. It exists to make the safe effectively unusable to an attacker even if they partially succeed against the primary lock.
If your relocker activates
If you cannot open your safe and suspect the relocker has engaged (usually after attempted forced entry), contact your Dominator dealer immediately. Do not attempt forced opening — this can cause permanent damage to the safe body.
A qualified safe technician can recover the relocker and restore normal operation. The safe itself remains structurally sound and can usually return to service after a relocker recovery.
Maintenance and Servicing
FA Series safes require minimal maintenance but benefit from occasional service to keep locks and hinges operating smoothly through years of use.
Every 12 months
Battery replacement (electronic/biometric locks)
Redeem your free battery through Power for Life. Replace before low-battery warnings, not after.
Every 12 months
Lock lubrication (mechanical dials)
Apply a drop of lock-grade lubricant to the dial spindle annually. Avoid WD-40 or general-purpose oils — they can gum up precision movements.
Every 12 to 24 months, depending if commercial or domestic use
Professional service
Book a qualified safe technician to inspect hinges, bolt work, and relocker mechanism. Typical service takes 30–60 minutes.
Every 5 years
Seal inspection
Check fire seals (where fitted) for compression and integrity. Replace if damaged.
Support
Troubleshooting
FA Series safes include a glass relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
Electronic lock won't open — no response from keypad.
Battery is most likely depleted. Replace the 9V battery and try your code again. Use a brand-new Duracell 9V Alkaline battery only. If the keypad still doesn’t respond, contact your dealer for diagnosis.
Electronic lock responds but rejects correct code.
Mechanical dial won't open — combination correct but bolts don't retract.
Lock is working, but handle does not unlock.
Safe door is difficult to open or close.
Safe is damaged or inoperable after attempted forced entry.
Still Stuck?
Contact your Dominator dealer for support, or call 1300 366 462 for direct assistance.
Pricing and availability through our dealer network.
With dealers across Australia and New Zealand, there's a Dominator specialist near you.
UC Series
Compact postal-slot deposit safes for under-counter cash drops, with a letterbox-style slot and secure separate access.
GC Series
Gun cabinets and premium gun safes for licensed firearm owners. Australian-compliant configurations from cabinet through to fire-rated.
IQ Pistol Series
Compact pistol safes for handgun storage, with fire-rated construction, quick-access locks and AS-compliant design.
DF Series
In-floor safes that disappear into concrete slabs. Discreet, hard to remove, and fitted with reinforced base plates.
DD Series
Tilt-drawer deposit safes for retail and hospitality. Drop cash without opening the safe, with insurable cash ratings up to $30,000.
DR Series
Compact drug safes for clinics and pharmacies, with cash ratings and the security construction needed for restricted-substance storage.
FA Series
Commercial-grade fire-resistant safes built for offices and retail, with higher cash ratings and 105-minute CNS fire certification.
FX Series
High-security TL-rated commercial safes with heavier wall construction and cash ratings up to $450,000 for serious storage.
Infinity Safes
Your FA Series Safe. Elevated Beyond Recognition. Bespoke interiors, premium finishes, and watch winders — built on the same proven security platform you trust.
Infinity Safes takes the security platform you’ve chosen and transforms it into something genuinely extraordinary. Custom paint, polished hardware, fitted interiors and bespoke finishes — every element designed, finished, and installed in Perth.
If your FA Series safe is going somewhere it needs to look exceptional — a private vault, family office or premium retail — Infinity is the answer.
