ACT
Cat A/B compliant
Compliant for Category A/B longarm storage in all Australian states and territories. Lockable ammunition compartment included on GC-2 and above for separate ammunition storage as required.
Gun Cabinet Series
GC Series High-security commercial and domestic safes
The GC Series is Dominator's purpose-built firearm storage range — Cat A/B compliant for all Australian states and territories. Five models from the compact GC-1 (4 rifles) through to the GC-5 premium gun safe (16+ rifles), with the higher GC-4 and GC-5 models built on the DS Series security platform for genuine fire-and-burglary-rated firearms storage.
Why GC Series
Engineered for licensed firearms.
Solid steel construction
Heavy-gauge steel construction throughout. GC-3 and above use 12mm solid steel doors. GC-4 and GC-5 add concrete composite construction for fire and burglary resistance.
4 to 16+ rifle capacity

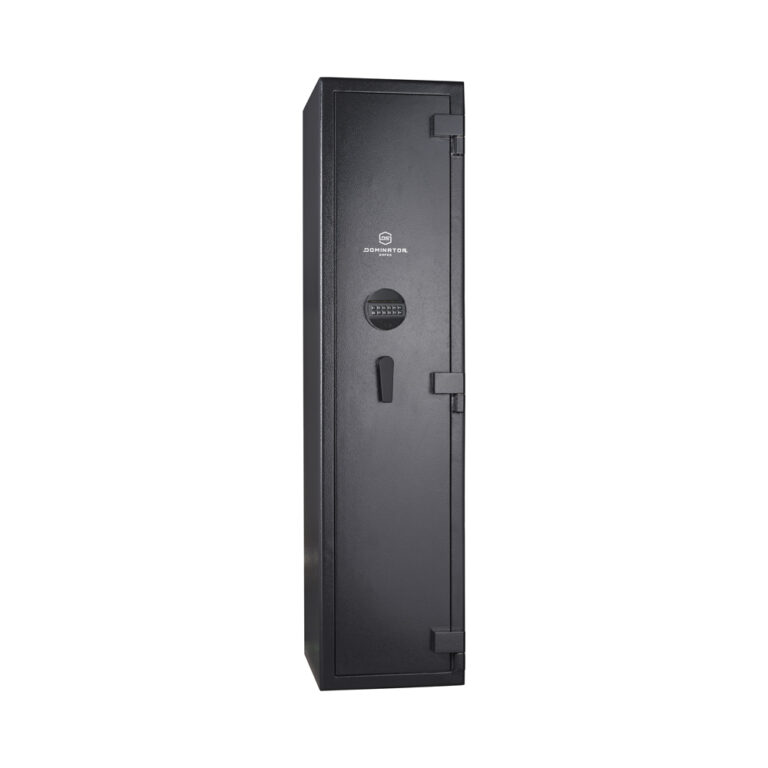

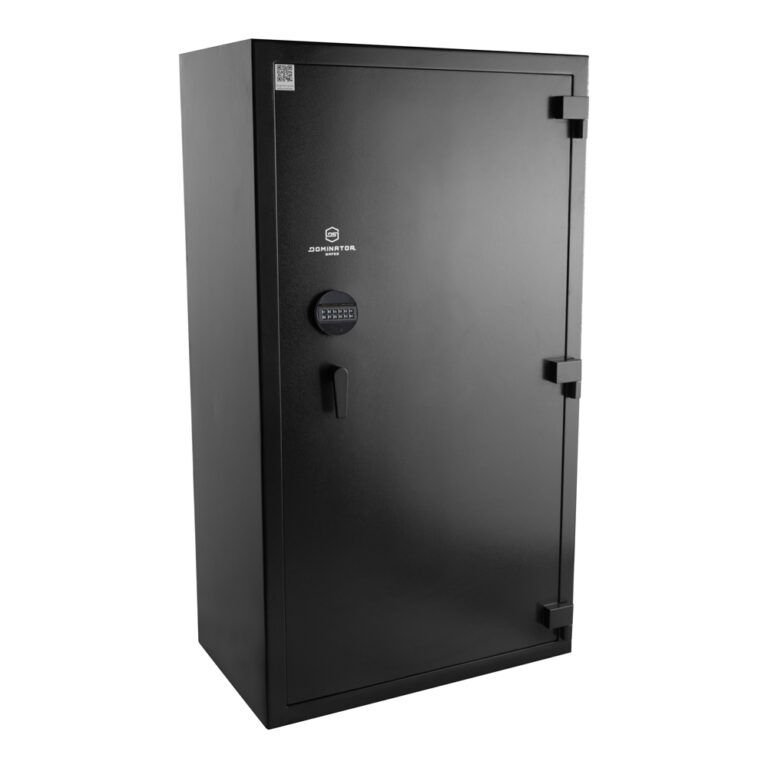

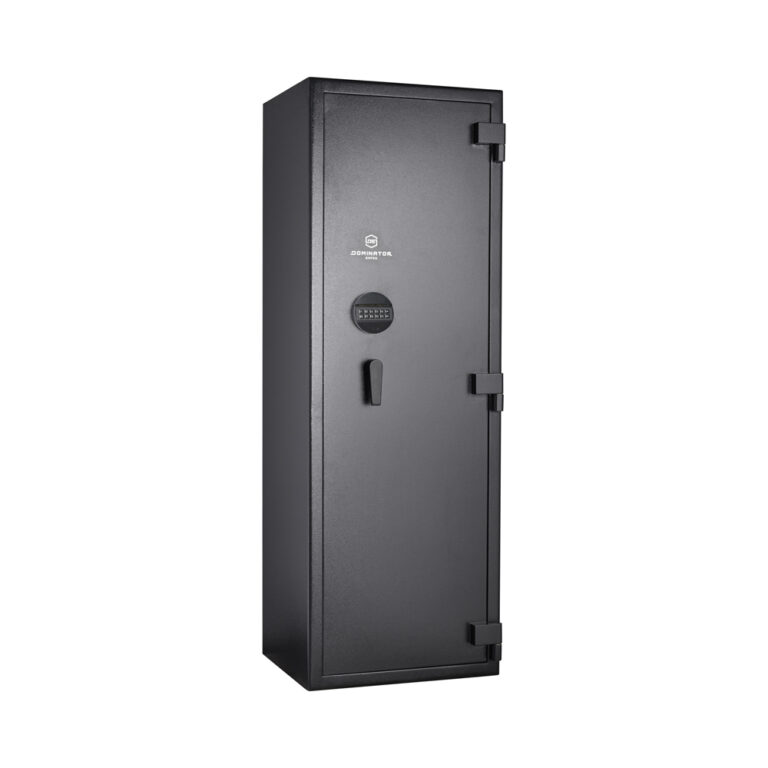

GC-1 stores 4 large rifles or 7 small. GC-2 fits 8 / 12. GC-3 fits 16 / 24. GC-4 and GC-5 add adjustable shelving for mixed firearm and valuables storage.
Models
Choose your GC Series safe

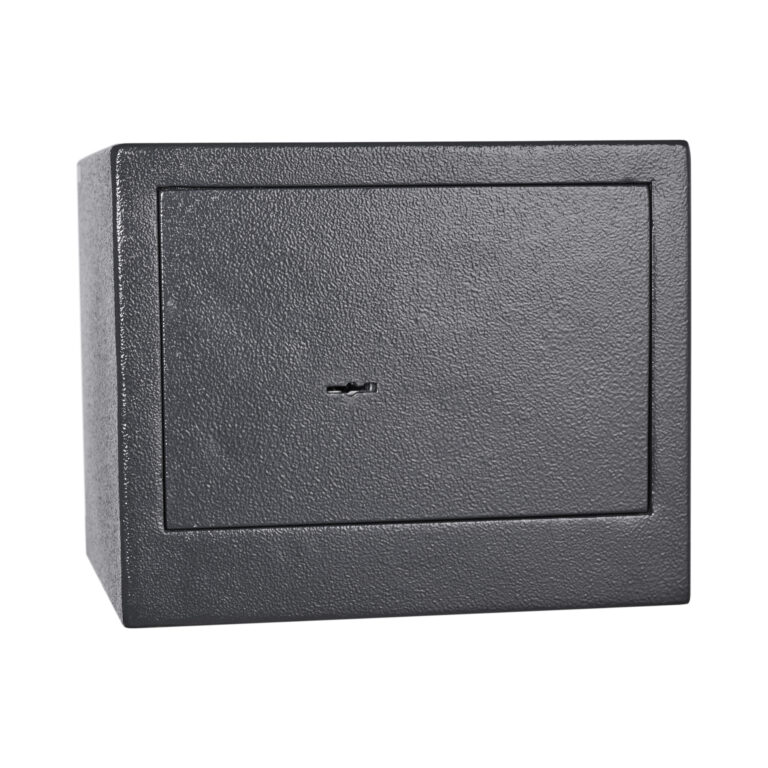

DHS-2
The DHS-2 is a compact steel ammunition box designed for dedicated ammo storage, fitting neatly inside the IQ-2 pistol safe. Built with 2mm body and 6mm door steel, it offers 13 litres of internal capacity with a 90° door clearance angle.
- External height
- 220 mm
- Weight
- 9 kg
- Capacity
- 13 L
- Locking bolts
- 2 × Ø20
Full specifications
Dimensions & Weight
- External
- 220 × 270 × 260 mm
- Internal
- 215 × 265 × 220 mm
- Total weight
- 9 kg
- Capacity
- 13 L
Interior Fittings
- Shelves
- 0
Door & Clearance
- Door swing angle
- 90°
- Door open width
- 485 mm
- Side clearance
- 270 mm
- Handle projection
- 0 mm
- Door thickness
- 6 mm
- Body thickness
- 2 mm
- Overall door thickness
- 6 mm
Locking & Fixing
- Locking bolts
- 2 × Ø20
- Fixing bolts
- 4 × Ø8
Packaged & Shipping
- Packaged (H × W × D)
- 0.25 × 0.3 × 0.34 m
- Packaged weight
- 10 kg
- Pack type
- Carton
Notes
- Notes
- 2mm body/6mm door

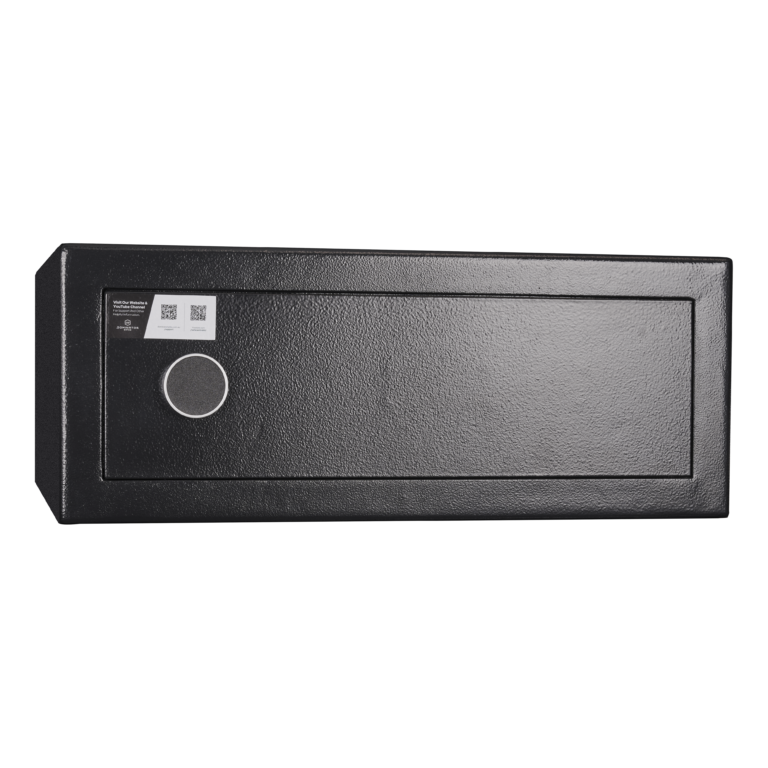

GA-4
The GA-4 is a dedicated ammunition storage box designed to bolt directly to the top of the GC-4 premium rifle safe, keeping ammunition secure and accessible without using any of the safe's interior space.
- External height
- 220 mm
- Weight
- 29 kg
- Capacity
- 56 L
- Locking bolts
- 1 × 25mm
Full specifications
Dimensions & Weight
- External
- 220 × 560 × 510 mm
- Internal
- 212 × 552 × 480 mm
- Total weight
- 29 kg
- Body weight
- 29 kg
- Capacity
- 56 L
Interior Fittings
- Shelves
- 0
Door & Clearance
- Door swing angle
- 90°
- Door open height
- 560 mm
- Door open width
- 1000 mm
- Side clearance
- 560 mm
- Handle projection
- 0 mm
- Door thickness
- 6 mm
- Body thickness
- 3 mm
- Overall door thickness
- 6 mm
Locking & Fixing
- Locking bolts
- 1 × 25mm
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.25 × 0.58 × 0.54 m
- Packaged weight
- 30 kg
- Pack type
- Skid

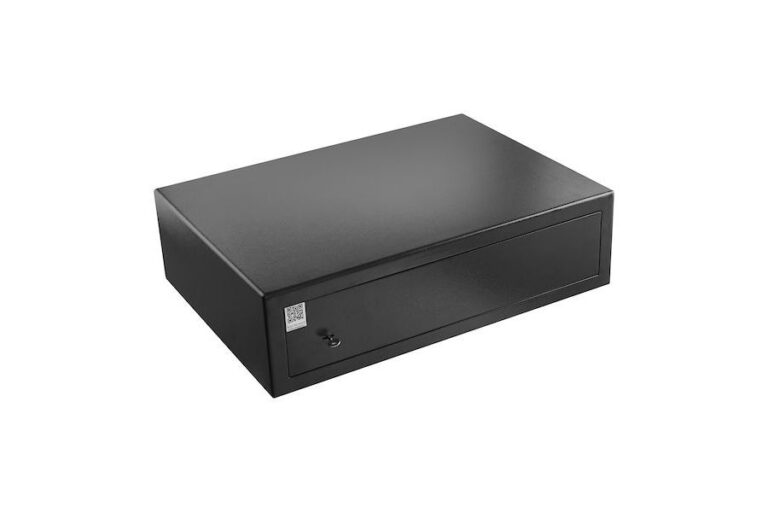

GA-5
The GA-5 is Dominator's largest ammunition storage box, designed to bolt to the top of the GC-5 premium rifle safe. Offering an impressive 91-litre internal capacity, it provides substantial dedicated ammo storage without occupying any space inside the main safe.
- External height
- 220 mm
- Weight
- 42 kg
- Capacity
- 91 L
- Locking bolts
- 1 × 25mm
Full specifications
Dimensions & Weight
- External
- 220 × 800 × 570 mm
- Internal
- 212 × 792 × 540 mm
- Total weight
- 42 kg
- Body weight
- 42 kg
- Capacity
- 91 L
Interior Fittings
- Shelves
- 0
Door & Clearance
- Door swing angle
- 90°
- Door open height
- 800 mm
- Door open width
- 1300 mm
- Side clearance
- 800 mm
- Handle projection
- 0 mm
- Door thickness
- 6 mm
- Body thickness
- 3 mm
- Overall door thickness
- 6 mm
Locking & Fixing
- Locking bolts
- 1 × 25mm
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.25 × 0.82 × 0.62 m
- Packaged weight
- 43 kg
- Pack type
- Skid

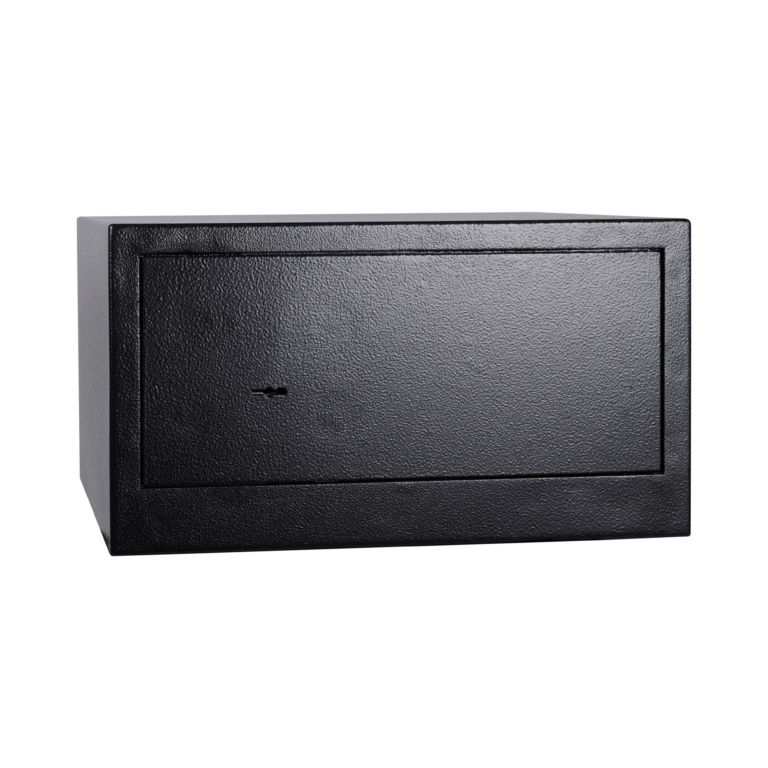

DHS-3
The DHS-3 is a mid-sized steel ammunition box designed to fit inside IQ-3 and IQ-5 pistol safes. With 28 litres of internal capacity and 2mm body / 6mm door steel construction, it delivers robust storage for larger ammo collections.
- External height
- 220 mm
- Weight
- 14 kg
- Capacity
- 28 L
- Locking bolts
- 2 × Ø20
Full specifications
Dimensions & Weight
- External
- 220 × 400 × 370 mm
- Internal
- 215 × 395 × 330 mm
- Total weight
- 14 kg
- Capacity
- 28 L
Interior Fittings
- Shelves
- 0
Door & Clearance
- Door swing angle
- 90°
- Door open width
- 745 mm
- Side clearance
- 400 mm
- Handle projection
- 0 mm
- Door thickness
- 6 mm
- Body thickness
- 2 mm
- Overall door thickness
- 6 mm
Locking & Fixing
- Locking bolts
- 2 × Ø20
- Fixing bolts
- 4 × Ø8
Packaged & Shipping
- Packaged (H × W × D)
- 0.25 × 0.43 × 0.45 m
- Packaged weight
- 15 kg
- Pack type
- Carton
PS-1
One of the most compact security safes on the market that incorporates the high security build design and locking system from higher graded models. Comprised of over 25kg of solid steel, the PS-1 is able to provide discreet security and versatile mounting options, as well as the ability to install all 3 lock types, using the universal mounting pattern.
- External height
- 260 mm
- Weight
- 22 kg
- Capacity
- 10 L
- Locking bolts
- 2 × Ø30
Full specifications
Dimensions & Weight
- External
- 260 × 260 × 240 mm
- Internal
- 245 × 230 × 170 mm
- Total weight
- 22 kg
- Door weight
- 6 kg
- Body weight
- 16 kg
- Capacity
- 10 L
Interior Fittings
- Shelves
- 1
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 465 mm
- Door open width
- 475 mm
- Side clearance
- 420 mm
- Handle projection
- 35 mm
- Door thickness
- 10 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 2 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.29 × 0.29 × 0.32 m
- Packaged weight
- 28 kg
- Pack type
- Carton
Ratings
- Cash rating
- $20,000 in an unsupported situation
- Insurable valuables
- Up to $200,000

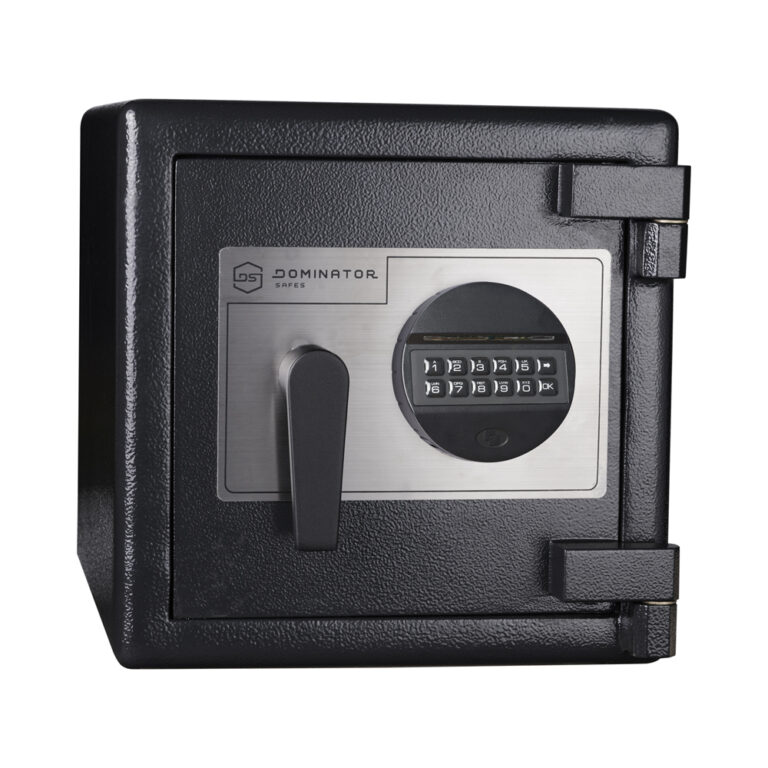

PS-2
A sleek but intimidating design, that provides exceptional security where fire resistance isn't required. Adaptable to any of the locking platforms easily. More than 30kgs of solid steel used in construction and along with the 4 prefabricated mounting holes, allows a highly effective installation.
- External height
- 315 mm
- Weight
- 37 kg
- Capacity
- 24 L
- Locking bolts
- 2 × Ø30
Full specifications
Dimensions & Weight
- External
- 315 × 315 × 360 mm
- Internal
- 300 × 285 × 280 mm
- Total weight
- 37 kg
- Door weight
- 8 kg
- Body weight
- 29 kg
- Capacity
- 24 L
Interior Fittings
- Shelves
- 1
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 570 mm
- Door open width
- 645 mm
- Side clearance
- 500 mm
- Handle projection
- 35 mm
- Door thickness
- 10 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 2 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.5 × 0.6 × 0.4 m
- Packaged weight
- 45 kg
- Pack type
- Skid
Ratings
- Cash rating
- $20,000 in an unsupported situation
- Insurable valuables
- Up to $200,000

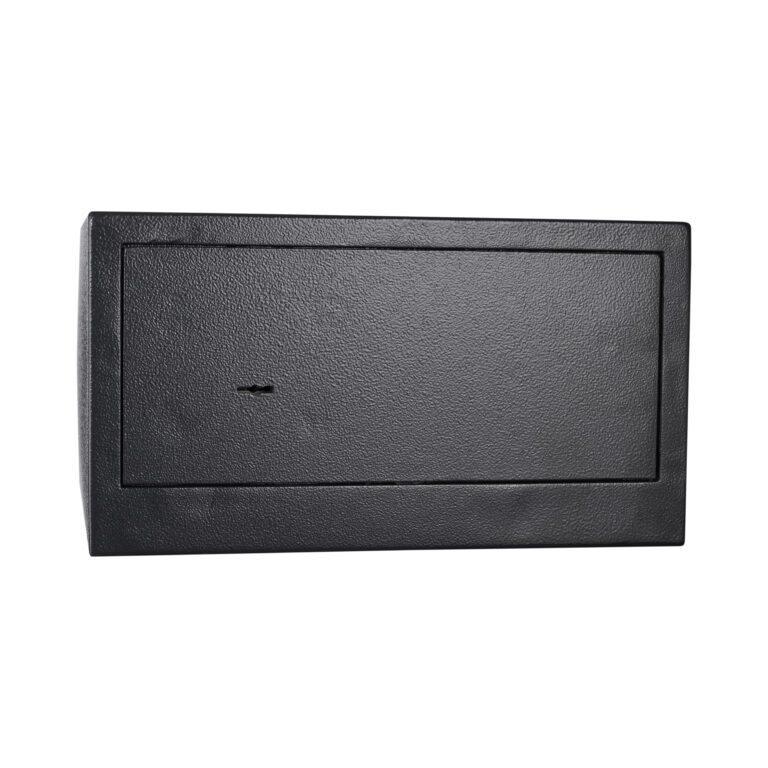

DHS-4
The DHS-4 is the largest model in the DHS series, designed to install inside the IQ-4 pistol safe. Offering 30 litres of internal capacity with 2mm body and 6mm door steel construction, it provides serious dedicated ammunition storage.
- External height
- 350 mm
- Weight
- 16 kg
- Capacity
- 30 L
- Locking bolts
- 2 × Ø20
Full specifications
Dimensions & Weight
- External
- 350 × 400 × 260 mm
- Internal
- 345 × 395 × 220 mm
- Total weight
- 16 kg
- Capacity
- 30 L
Interior Fittings
- Shelves
- 0
Door & Clearance
- Door swing angle
- 90°
- Door open width
- 610 mm
- Side clearance
- 400 mm
- Handle projection
- 0 mm
- Door thickness
- 6 mm
- Body thickness
- 2 mm
- Overall door thickness
- 6 mm
Locking & Fixing
- Locking bolts
- 2 × Ø20
- Fixing bolts
- 4 × Ø8
Packaged & Shipping
- Packaged (H × W × D)
- 0.38 × 0.43 × 0.34 m
- Packaged weight
- 17 kg
- Pack type
- Carton

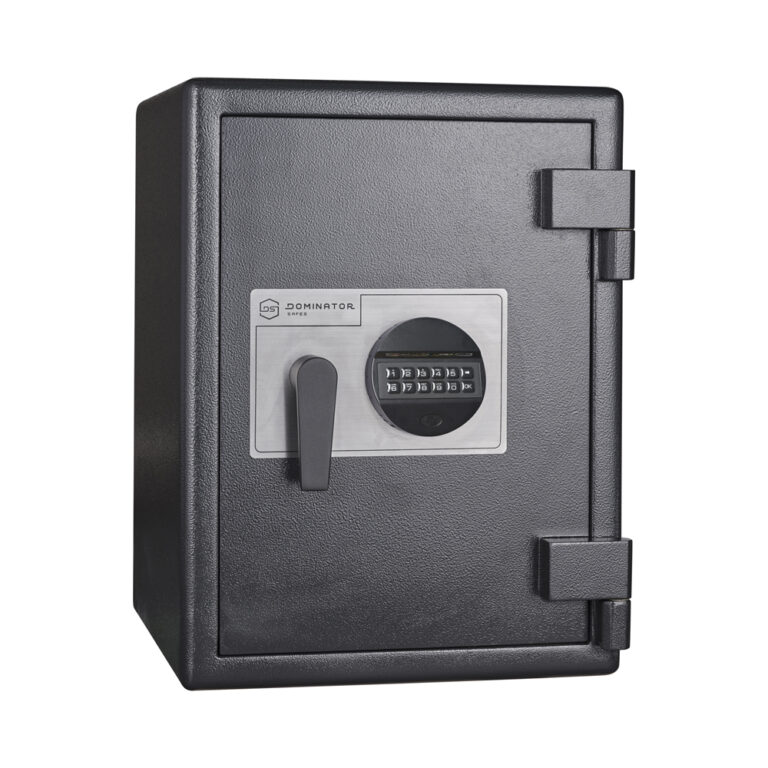

PS-3
A sleek but intimidating design, that provides exceptional security where fire resistance isn't required. Adaptable to any of the locking platforms easily and fitted with relocking devices as standard. More than 40kgs of solid steel used in construction and along with the 4 prefabricated mounting holes, allows a highly effective installation.
- External height
- 510 mm
- Weight
- 65 kg
- Capacity
- 34 L
- Locking bolts
- 4 × Ø30
Full specifications
Dimensions & Weight
- External
- 510 × 380 × 380 mm
- Internal
- 320 × 355 × 300 mm
- Total weight
- 65 kg
- Door weight
- 14 kg
- Body weight
- 51 kg
- Capacity
- 34 L
Interior Fittings
- Shelves
- 1
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 705 mm
- Door open width
- 735 mm
- Side clearance
- 665 mm
- Handle projection
- 35 mm
- Door thickness
- 10 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 4 × Ø30
- Fixing bolts
- 4 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.65 × 0.6 × 0.4 m
- Packaged weight
- 71 kg
- Pack type
- Skid
Ratings
- Cash rating
- $20,000 in an unsupported situation
- Insurable valuables
- Up to $200,000
Notes
- Notes
- *170mm ammo box
IQ-2
Cat H compliant for all states & territories. Offers a great way to store your pistols and ammunition, unrivalled value for money. Optional internal Ammo Box
- External height
- 510 mm
- Weight
- 79 kg
- Capacity
- 42 L
- Locking bolts
- 5 × Ø30
Full specifications
Dimensions & Weight
- External
- 510 × 380 × 380 mm
- Internal
- 470 × 325 × 275 mm
- Total weight
- 79 kg
- Door weight
- 23 kg
- Body weight
- 56 kg
- Capacity
- 42 L
Interior Fittings
- Shelves
- 2
- Hooks
- 4
Door & Clearance
- Door swing angle
- 155°
- Door open height
- 675 mm
- Door open width
- 715 mm
- Side clearance
- 625 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 5 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.65 × 0.6 × 0.4 m
- Packaged weight
- 85 kg
- Pack type
- Skid
Ratings
- Cash rating
- $40,000 in unsupported application
- Fire rating
- 30 minute recommended
IQ-3
Cat H compliant for all states & territories. With optional internal Ammo Box
- External height
- 510 mm
- Weight
- 111 kg
- Capacity
- 86 L
- Locking bolts
- 5 × Ø30
Full specifications
Dimensions & Weight
- External
- 510 × 510 × 510 mm
- Internal
- 470 × 455 × 400 mm
- Total weight
- 111 kg
- Door weight
- 29 kg
- Body weight
- 82 kg
- Capacity
- 86 L
Interior Fittings
- Shelves
- 2
- Hooks
- 6
Door & Clearance
- Door swing angle
- 155°
- Door open height
- 930 mm
- Door open width
- 965 mm
- Side clearance
- 905 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 5 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.65 × 0.6 × 0.55 m
- Packaged weight
- 118 kg
- Pack type
- Skid
Ratings
- Cash rating
- $25,000 in unsupported application
- Fire rating
- 30 minute recommended
IQ-4
Cat H compliant for all states & territories. The increased height in the IQ-4 improves accessibility without imposing further on floor space. The narrow profile allows installations where limited depth of space is available. Optional internal Ammo Box
- External height
- 685 mm
- Weight
- 128 kg
- Capacity
- 81.3 L
- Locking bolts
- 7 × Ø30
Full specifications
Dimensions & Weight
- External
- 685 × 510 × 380 mm
- Internal
- 650 × 455 × 275 mm
- Total weight
- 128 kg
- Door weight
- 38 kg
- Body weight
- 90 kg
- Capacity
- 81.3 L
Interior Fittings
- Shelves
- 3
- Hooks
- 6
Door & Clearance
- Door swing angle
- 155°
- Door open height
- 930 mm
- Door open width
- 840 mm
- Side clearance
- 905 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 7 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.82 × 0.57 × 0.47 m
- Packaged weight
- 135 kg
- Pack type
- Skid
Ratings
- Cash rating
- $40,000 in unsupported application
- Fire rating
- 30 minute recommended
IQ-5
Cat H compliant for all states & territories. Using the same footprint as the IQ-3, the large IQ-5 provides 150L storage capacity ensuring high level security for large volume secure storage Optional internal Ammo Box
- External height
- 845 mm
- Weight
- 162 kg
- Capacity
- 146 L
- Locking bolts
- 7 × Ø30
Full specifications
Dimensions & Weight
- External
- 845 × 510 × 510 mm
- Internal
- 800 × 455 × 400 mm
- Total weight
- 162 kg
- Door weight
- 46 kg
- Body weight
- 116 kg
- Capacity
- 146 L
Interior Fittings
- Shelves
- 3
- Hooks
- 6
Door & Clearance
- Door swing angle
- 155°
- Door open height
- 930 mm
- Door open width
- 965 mm
- Side clearance
- 905 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 7 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 1 × 0.6 × 0.55 m
- Packaged weight
- 172 kg
- Pack type
- Skid
Ratings
- Cash rating
- $40,000 in unsupported application
- Fire rating
- 30 minute recommended
GC-1
With over 100kg of solid steel used in the construction of each cabinet, the GC-1 safe offers more than the required level of strength and security for safe storage of up to four rifles. Utilising a similar bolt work design found in high-quality cash and valuables safes and universal lock mounting templates, each cabinet allows easy conversion to alternate lock types to suit even the most unique applications.
- External height
- 1450 mm
- Weight
- 114 kg
- Capacity
- 137.2 L
- Locking bolts
- 8 × Ø30
Full specifications
Dimensions & Weight
- External
- 1450 × 350 × 420 mm
- Internal
- 1260 × 325 × 335 mm
- Total weight
- 114 kg
- Door weight
- 35 kg
- Body weight
- 79 kg
- Capacity
- 137.2 L
Interior Fittings
- Shelves
- 1
- Hooks
- 0
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 635 mm
- Door open width
- 735 mm
- Side clearance
- 555 mm
- Handle projection
- 35 mm
- Door thickness
- 6 mm
- Body thickness
- 4 mm
- Overall door thickness
- 74 mm
Locking & Fixing
- Locking bolts
- 8 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 1.6 × 0.6 × 0.5 m
- Packaged weight
- 120 kg
- Pack type
- Skid
Ratings
- Cash rating
- $25,000
- Insurable valuables
- Up to $250,000
Notes
- Notes
- *170mm ammo box
GC-2
With an increase in size and space from its predecessor, the new model GC-2 houses up to eight rifles with ease and includes a key lockable ammunition storage compartment internally. This safe is available in all lock types and functions and includes prefabricated installation provisions to comply with fixing regulations Australia-wide.
- External height
- 1450 mm
- Weight
- 163 kg
- Capacity
- 198.9 L
- Locking bolts
- 8 × Ø30
Full specifications
Dimensions & Weight
- External
- 1450 × 500 × 420 mm
- Internal
- 1250 × 475 × 335 mm
- Total weight
- 163 kg
- Door weight
- 46 kg
- Body weight
- 117 kg
- Capacity
- 198.9 L
Interior Fittings
- Shelves
- 2
- Hooks
- 0
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 940 mm
- Door open width
- 885 mm
- Side clearance
- 855 mm
- Handle projection
- 35 mm
- Door thickness
- 6 mm
- Body thickness
- 4 mm
- Overall door thickness
- 74 mm
Locking & Fixing
- Locking bolts
- 8 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 1.6 × 0.6 × 0.5 m
- Packaged weight
- 171 kg
- Pack type
- Skid
Ratings
- Cash rating
- $25,000
- Insurable valuables
- Up to $250,000
Notes
- Notes
- *170mm ammo box
GC-3
The brand-new GC-3 not only increases in size and volume from the GC-2 but also in security with a 12mm solid steel door, making the GC-3 the perfect unit for holding your large and unique gun collection.
- External height
- 1450 mm
- Weight
- 303 kg
- Capacity
- 409.5 L
- Locking bolts
- 8 × Ø30
Full specifications
Dimensions & Weight
- External
- 1450 × 805 × 505 mm
- Internal
- 1265 × 780 × 415 mm
- Total weight
- 303 kg
- Door weight
- 97 kg
- Body weight
- 206 kg
- Capacity
- 409.5 L
Interior Fittings
- Shelves
- 2
- Hooks
- 0
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 1515 mm
- Door open width
- 1255 mm
- Side clearance
- 1465 mm
- Handle projection
- 35 mm
- Door thickness
- 10 mm
- Body thickness
- 6 mm
- Overall door thickness
- 74 mm
Locking & Fixing
- Locking bolts
- 8 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 1.6 × 0.57 × 0.85 m
- Packaged weight
- 320 kg
- Pack type
- Skid
Ratings
- Cash rating
- $30,000
- Insurable valuables
- Up to $300,000
Notes
- Notes
- *170mm ammo box
GC-2S Large Volume
The Dominator GC-2S offers 199 litres of secure storage in a wider cabinet design, with five adjustable shelves providing flexible organisation for growing storage requirements.
- External height
- 1450 mm
- Weight
- 163 kg
- Capacity
- 199 L
- Locking bolts
- 8 × Ø30
Full specifications
Dimensions & Weight
- External
- 1450 × 500 × 420 mm
- Internal
- 1250 × 475 × 335 mm
- Total weight
- 163 kg
- Door weight
- 46 kg
- Body weight
- 117 kg
- Capacity
- 199 L
Interior Fittings
- Shelves
- 2
- Hooks
- 0
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 940 mm
- Door open width
- 885 mm
- Side clearance
- 855 mm
- Handle projection
- 35 mm
- Door thickness
- 6 mm
- Body thickness
- 4 mm
- Overall door thickness
- 74 mm
Locking & Fixing
- Locking bolts
- 8 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 1.6 × 0.6 × 0.5 m
- Packaged weight
- 171 kg
- Pack type
- Skid
Ratings
- Cash rating
- $25,000
- Insurable valuables
- Up to $250,000
Notes
- Notes
- *170mm ammo box
GC-3S Large Volume
The Dominator GC-3S is the largest model in the GC-S range, providing an impressive 409 litres of secure storage with five adjustable shelves for high-capacity residential or commercial applications.
- External height
- 1450 mm
- Weight
- 303 kg
- Capacity
- 409 L
- Locking bolts
- 8 × Ø30
Full specifications
Dimensions & Weight
- External
- 1450 × 805 × 505 mm
- Internal
- 1265 × 780 × 415 mm
- Total weight
- 303 kg
- Door weight
- 97 kg
- Body weight
- 206 kg
- Capacity
- 409 L
Interior Fittings
- Shelves
- 2
- Hooks
- 0
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 1515 mm
- Door open width
- 1255 mm
- Side clearance
- 1465 mm
- Handle projection
- 35 mm
- Door thickness
- 10 mm
- Body thickness
- 6 mm
- Overall door thickness
- 74 mm
Locking & Fixing
- Locking bolts
- 8 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 1.6 × 0.57 × 0.85 m
- Packaged weight
- 320 kg
- Pack type
- Skid
Ratings
- Cash rating
- $30,000
- Insurable valuables
- Up to $300,000
Notes
- Notes
- *170mm ammo box
GC-1S Large Volume
The Dominator GC-1S is a space-efficient large volume safe offering 137 litres of secure storage with five adjustable shelves—ideal for homes, offices and small businesses needing organised protection for valuables and important documents.
- External height
- 1450 mm
- Weight
- 114 kg
- Capacity
- 137.2 L
- Locking bolts
- 8 × Ø30
Full specifications
Dimensions & Weight
- External
- 1450 × 350 × 420 mm
- Internal
- 1260 × 325 × 335 mm
- Total weight
- 114 kg
- Door weight
- 35 kg
- Body weight
- 79 kg
- Capacity
- 137.2 L
Interior Fittings
- Shelves
- 1
- Hooks
- 0
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 635 mm
- Door open width
- 735 mm
- Side clearance
- 555 mm
- Handle projection
- 35 mm
- Door thickness
- 6 mm
- Body thickness
- 4 mm
- Overall door thickness
- 74 mm
Locking & Fixing
- Locking bolts
- 8 × Ø30
- Fixing bolts
- 6 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 1.6 × 0.6 × 0.5 m
- Packaged weight
- 120 kg
- Pack type
- Skid
Ratings
- Cash rating
- $25,000
- Insurable valuables
- Up to $250,000
Notes
- Notes
- *170mm ammo box
GC-4
The new GC-4 takes the security features you find in our DS range and applies them to a firearm cabinet creating the ultimate protection against fire and theft for firearms and valuables and includes prefabricated installation provisions to comply with fixing regulations Australia-wide.
- External height
- 1500 mm
- Weight
- 300 kg
- Capacity
- 205.4 L
- Locking bolts
- 12 × Ø30
Full specifications
Dimensions & Weight
- External
- 1500 × 560 × 510 mm
- Internal
- 1395 × 475 × 310 mm
- Total weight
- 300 kg
- Door weight
- 89 kg
- Body weight
- 211 kg
- Capacity
- 205.4 L
Interior Fittings
- Shelves
- 3
- Hooks
- 0
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 1025 mm
- Door open width
- 1015 mm
- Side clearance
- 975 mm
- Handle projection
- 70 mm
- Overall door thickness
- 74 mm
Locking & Fixing
- Locking bolts
- 12 × Ø30
- Fixing bolts
- 4 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 1.65 × 0.6 × 0.6 m
- Packaged weight
- 313 kg
- Pack type
- Skid
Ratings
- Cash rating
- $50,000
- Insurable valuables
- Up to $500,000
- Fire rating
- 105 minute CNS Certified
Notes
- Notes
- PDO
GC-5
The brand-new GC-5 premium gun cabinet is the ultimate protection against fire and theft for firearms and valuables. Incorporating the highest security locking devices and a composite concrete and steel body design, the GC-5 provides exceptional security in domestic and commercial applications. Like all the GC series, this safe is available in all lock types and functions and includes prefabricated installation provisions to comply with fixing regulations Australia-wide.
- External height
- 1500 mm
- Weight
- 413 kg
- Capacity
- 387.5 L
- Locking bolts
- 12 × Ø30
Full specifications
Dimensions & Weight
- External
- 1500 × 800 × 570 mm
- Internal
- 1355 × 715 × 400 mm
- Total weight
- 413 kg
- Door weight
- 113 kg
- Body weight
- 300 kg
- Capacity
- 387.5 L
Interior Fittings
- Shelves
- 3
- Hooks
- 0
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 1285 mm
- Door open width
- 1450 mm
- Side clearance
- 1320 mm
- Handle projection
- 70 mm
- Overall door thickness
- 74 mm
Locking & Fixing
- Locking bolts
- 12 × Ø30
- Fixing bolts
- 4 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 1.65 × 0.85 × 0.65 m
- Packaged weight
- 440 kg
- Pack type
- Skid
Ratings
- Cash rating
- $50,000
- Insurable valuables
- Up to $500,000
- Fire rating
- 105 minute CNS Certified
Notes
- Notes
- PDO
At a Glance
GC Series size comparison
All GC Series cabinets drawn to actual relative scale. All GC models stand at 1450–1500mm — designed to comfortably accept full-length rifles upright.
Trust and Insurance
Certifications and Insurance
Cat A/B compliant firearms storage with insurable cash and valuables ratings on every GC Series model.
Cat A/B
Compliant — all states & territories
Solid Steel
Heavy-gauge construction
Cash Rating
$25,000 – $30,000 AUD
Valuables
$250,000 – $300,000 AUD
Power for Life
Free batteries — included
Best Warranty
Australia's best warranty
5-Year Warranty
Standard across the range
Independently tested burglary protection
GC Series cabinets are built to satisfy state firearms-storage compliance requirements and provide insurance-rated burglary protection. All GC models include separately key-lockable ammunition compartments (GC-2 onwards), hardened anti-drill plating around the lock, and a relocker that engages if the lock is attacked.
GC-4 and GC-5 are built on the DS Series security platform — adding concrete composite construction for the highest level of firearms-rated security.
Insurance ratings (AUD)
GC Series cabinets carry insurable ratings that your firearms or contents insurer can use to set sub-limits:
- Cash rating: $25,000 (GC-1, GC-2) – $30,000 (GC-3, GC-4, GC-5)
- Valuables rating: $250,000 – $300,000
Most firearms insurers require a Cat A/B compliant cabinet as a baseline; the GC Series satisfies this and adds insurable ratings for the firearms themselves.
Cat A/B compliant for licensed firearm storage in all Australian states and territories.
Specifications
The full GC Series lineup
| Model | External (H × W × D) | Internal (H × W × D) | Weight | Capacity | Locking bolts | Notes |
|---|---|---|---|---|---|---|
| DHS-2 | 220 × 270 × 260 | 215 × 265 × 220 | 9 kg | 13 L | 2 × Ø20 | 2mm body/6mm door |
| GA-4 | 220 × 560 × 510 | 212 × 552 × 480 | 29 kg | 56 L | 1 × 25mm | |
| GA-5 | 220 × 800 × 570 | 212 × 792 × 540 | 42 kg | 91 L | 1 × 25mm | |
| DHS-3 | 220 × 400 × 370 | 215 × 395 × 330 | 14 kg | 28 L | 2 × Ø20 | |
| PS-1 | 260 × 260 × 240 | 245 × 230 × 170 | 22 kg | 10 L | 2 × Ø30 | |
| PS-2 | 315 × 315 × 360 | 300 × 285 × 280 | 37 kg | 24 L | 2 × Ø30 | |
| DHS-4 | 350 × 400 × 260 | 345 × 395 × 220 | 16 kg | 30 L | 2 × Ø20 | |
| PS-3 | 510 × 380 × 380 | 320 × 355 × 300 | 65 kg | 34 L | 4 × Ø30 | *170mm ammo box |
| IQ-2 | 510 × 380 × 380 | 470 × 325 × 275 | 79 kg | 42 L | 5 × Ø30 | |
| IQ-3 | 510 × 510 × 510 | 470 × 455 × 400 | 111 kg | 86 L | 5 × Ø30 | |
| IQ-4 | 685 × 510 × 380 | 650 × 455 × 275 | 128 kg | 81.3 L | 7 × Ø30 | |
| IQ-5 | 845 × 510 × 510 | 800 × 455 × 400 | 162 kg | 146 L | 7 × Ø30 | |
| GC-1 | 1450 × 350 × 420 | 1260 × 325 × 335 | 114 kg | 137.2 L | 8 × Ø30 | *170mm ammo box |
| GC-2 | 1450 × 500 × 420 | 1250 × 475 × 335 | 163 kg | 198.9 L | 8 × Ø30 | *170mm ammo box |
| GC-3 | 1450 × 805 × 505 | 1265 × 780 × 415 | 303 kg | 409.5 L | 8 × Ø30 | *170mm ammo box |
| GC-2S Large Volume | 1450 × 500 × 420 | 1250 × 475 × 335 | 163 kg | 199 L | 8 × Ø30 | *170mm ammo box |
| GC-3S Large Volume | 1450 × 805 × 505 | 1265 × 780 × 415 | 303 kg | 409 L | 8 × Ø30 | *170mm ammo box |
| GC-1S Large Volume | 1450 × 350 × 420 | 1260 × 325 × 335 | 114 kg | 137.2 L | 8 × Ø30 | *170mm ammo box |
| GC-4 | 1500 × 560 × 510 | 1395 × 475 × 310 | 300 kg | 205.4 L | 12 × Ø30 | PDO |
| GC-5 | 1500 × 800 × 570 | 1355 × 715 × 400 | 413 kg | 387.5 L | 12 × Ø30 | PDO |
Specs Detail
Technical Information
Construction
- Heavy-gauge solid steel body and door
- GC-3 onwards: 12mm solid steel door
- GC-4 and GC-5: concrete composite construction (DS-platform)
- Locking points: 8 (GC-1, GC-2, GC-3), 7 (GC-4), 12 active+fixed (GC-5)
Firearm storage
- Adjustable barrel rests on every model (1–2 rests)
- Cabinet height accommodates full-length rifles upright
- Lockable ammunition compartment standard on GC-2 onwards
- GC-4 and GC-5 include adjustable shelving for mixed storage
Mounting and clearance
- 4–6 internal bolt holes per model
- Side clearance 400mm+ for door swing
- Front clearance 700mm+ for rifle removal
Engineering
Construction and Security Features
GC Series cabinets are engineered specifically for firearms storage — combining state compliance requirements with genuine burglary and fire-resistant construction on selected models.
Cat A/B compliant
Built to satisfy Australian state firearms storage requirements for Category A and B longarms across all states and territories.
Heavy-gauge steel
Solid steel body and door construction. GC-3 onwards uses 12mm solid steel for higher burglary resistance.
DS-platform construction (GC-4, GC-5)
GC-4 and GC-5 are built on the DS Series security platform with concrete composite construction for fire and burglary resistance.
Lockable ammunition compartment
Separately key-lockable ammunition compartment standard on GC-2 onwards — keeps ammunition secure and separate from firearms as required.
Up to 12 locking points
GC-5 uses 12 locking bolts (7 active, 5 fixed) for the highest level of firearms-cabinet security in the range.
Anti-drill plating
Hardened anti-drill plating around the lock and a relocker that engages if the lock is attacked.
Adjustable barrel rests
Soft barrel rests prevent muzzle damage and accommodate rifles of varying lengths.
Universal lock footprint
Standardised lock mounting allows easy conversion between key, combination and electronic lock types.
Available in base mounting
Available in Left & Right Hand Hinge
GC Series cabinets can be specified left-hand or right-hand hinge. Floor mounting is essential for state compliance — confirm bolt-down provisions with your dealer at order.
Lock Options
Lock Options and Upgrades
Every GC Series model is available in three lock configurations as standard. All lock types satisfy Cat A/B compliance requirements; choose based on access frequency and ergonomic preference.
DS-xD
Tecnosicurezza Pulse Electronic
Tecnosicurezza Pulse 2-user electronic safe lock
Operation
6-digit user codes, 2 user capability standard
Power
9V battery (externally changeable) — covered by Power for Life
Best For
Daily access, multi-user environments, fast entry
DS-xC
Group 2 Combination Dial
Group 2 certified 3-wheel combination
Operation
Precision mechanical dial, 3 number combination
Power
None required — works indefinitely without batteries
Best For
Buyers who value simplicity and longevity, environments with no battery maintenance preference
DS-xK
Ross 700 Key Lock
Ross 700 high-security key lock
Operation
Traditional key-turn mechanism
Power
None required
Best For
Buyers who prefer key-access reliability and don't need to share access frequently.
Note
Highest quality mechanical key lock available — can also be specified as a secondary lock on DS-2, DS-3, DS-4 and DS-5 for increased security cash rating
Upgrade
Secondary Key Lock Upgrade
GC-3, GC-4 and GC-5 can be specified with a secondary Ross 700 key lock for layered security. Adding a secondary lock can also satisfy specific insurance requirements for high-value firearms collections.
Universal Lock Footprint
GC Series cabinets use a universal lock mounting footprint — meaning any of the three lock types can be retrofitted to an existing cabinet by a qualified safe technician.
Configure
Accessories and Spare Parts
Configure your GC Series safe with the accessories below. All accessories are available through your Dominator dealer at point of order or as retrofits.
Barrel Rests
Additional soft barrel rests sized to suit each GC model.
GC-RESTSML
Small barrel rest (GC-1, GC-2)
GC-RESTLRG
Large barrel rest (GC-3, GC-4, GC-5)
Shelves and Dividers
Adjustable shelves and dividers for GC-4 and GC-5 mixed-storage configurations.
GC-4SHELF
Adjustable shelf to suit GC-4
GC-5SHELF
Adjustable shelf to suit GC-5
Ammunition Boxes
Internal ammunition storage boxes for the lockable compartment.
GC-AMMOBOX
Internal ammunition storage box
For Specifiers
DS Series Specification Tips
GC-1 vs GC-2 — by collection size
GC-1 holds up to 4 large rifles or 7 small. GC-2 fits 8 / 12 and adds the lockable ammunition compartment. Most multi-firearm licence holders specify GC-2 or larger.
GC-4 / GC-5 for mixed firearms and valuables
GC-4 and GC-5 are built on the DS Series security platform with concrete composite construction and adjustable shelving — ideal for collectors storing firearms, ammunition, valuables and documents in a single unit.
Lockable ammunition compartment standard
GC-2 onwards include a separately key-lockable ammunition compartment as standard — a state compliance requirement in some jurisdictions and a sensible practice everywhere.
Lifetime Initiative
Power for Life Free batteries for the lifetime of your safe.
Every DS Series safe with an electronic or biometric lock is covered by our Power for Life initiative. Once a year, you can redeem a free replacement battery at any authorised Dominator dealer — no receipts, no conditions, for as long as you own the safe.
It's our way of making sure your safe stays accessible for decades, not just years.
Power for Life applies across the full range: HS Series, DS Series, GC Series (gun cabinets), FA Series and FX Series.
STEP 01
Receive your e-voucher
After registering your warranty
STEP 02
Visit your dealer once a year
With the voucher on your phone
STEP 03
Walk out with a free battery
Recommended Duracell Procell Alkaline battery
Setup
Installation
What to expect
GC Series cabinets must be securely floor-mounted to satisfy state firearms storage compliance. Smaller models (GC-1, GC-2) can be positioned by two people; GC-3 onwards require mechanical handling.
Floor bolting is required by law — an unmounted firearms cabinet will not satisfy state compliance. GC Series includes 4–6 internal bolt holes per model.
Installation checklist
-
01
Identify fixing bolt provisions — GC Series models have 4–6 internal bolt holes. Floor mounting is required for state compliance — confirm hole positions with your dealer before drilling.
-
02
Identify install position with access clearance (allow for door swing and handing)
-
03
Confirm delivery access route (doorways, corridors, stairs)
-
04
Schedule installation through your dealer — most offer delivery + install as a package
-
05
Keep installation certificate for insurance records
Base Anchoring Provisions
Top-view footprint of each GC Series cabinet showing internal floor anchor bolt positions. All footprints shown to scale relative to each other.
Secondary Defence
Glass Relocker Protection
GC Series safes include a spring-loaded case relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
How it works
A thin glass plate is embedded behind the primary lock body. If a drilling, punch, or torch attack breaks the glass, spring-loaded secondary bolts deploy and jam the locking mechanism. Once activated, the safe cannot be opened even if the primary lock is subsequently bypassed — it requires professional recovery by a qualified safe technician.
The relocker is a permanent protection feature, not a consumable. It exists to make the safe effectively unusable to an attacker even if they partially succeed against the primary lock.
If your relocker activates
If you cannot open your safe and suspect the relocker has engaged (usually after attempted forced entry), contact your Dominator dealer immediately. Do not attempt forced opening — this can cause permanent damage to the safe body.
A qualified safe technician can recover the relocker and restore normal operation. The safe itself remains structurally sound and can usually return to service after a relocker recovery.
Maintenance and Servicing
GC Series cabinets require minimal maintenance. Clean barrel rests periodically with a dry cloth, and lubricate locks and hinges as part of annual firearms maintenance. Replace electronic lock batteries annually under Power for Life.
Every 12 months
Battery replacement (electronic/biometric locks)
Redeem your free battery through Power for Life. Replace before low-battery warnings, not after.
Every 12 months
Lock lubrication (mechanical dials)
Apply a drop of lock-grade lubricant to the dial spindle annually. Avoid WD-40 or general-purpose oils — they can gum up precision movements.
Every 12 to 24 months, depending if commercial or domestic use
Professional service
Book a qualified safe technician to inspect hinges, bolt work, and relocker mechanism. Typical service takes 30–60 minutes.
Every 5 years
Seal inspection
Check fire seals (where fitted) for compression and integrity. Replace if damaged.
Support
Troubleshooting
GC Series safes include a spring-loaded case relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
Electronic lock won't open — no response from keypad.
Battery is most likely depleted. Replace the 9V battery and try your code again. Use a brand-new Duracell 9V Alkaline battery only. If the keypad still doesn’t respond, contact your dealer for diagnosis.
Electronic lock responds but rejects correct code.
Mechanical dial won't open — combination correct but bolts don't retract.
Lock is working, but handle does not unlock.
Safe door is difficult to open or close.
Safe is damaged or inoperable after attempted forced entry.
Still Stuck?
Contact your Dominator dealer for support, or call 1300 366 462 for direct assistance.
Pricing and availability through our dealer network.
With dealers across Australia and New Zealand, there's a Dominator specialist near you.
IQ Pistol Series
Compact pistol safes for handgun storage, with fire-rated construction, quick-access locks and AS-compliant design.
UC Series
Compact postal-slot deposit safes for under-counter cash drops, with a letterbox-style slot and secure separate access.
GC Series
Gun cabinets and premium gun safes for licensed firearm owners. Australian-compliant configurations from cabinet through to fire-rated.
DR Series
Compact drug safes for clinics and pharmacies, with cash ratings and the security construction needed for restricted-substance storage.
DF Series
In-floor safes that disappear into concrete slabs. Discreet, hard to remove, and fitted with reinforced base plates.
DD Series
Tilt-drawer deposit safes for retail and hospitality. Drop cash without opening the safe, with insurable cash ratings up to $30,000.
FA Series
Commercial-grade fire-resistant safes built for offices and retail, with higher cash ratings and 105-minute CNS fire certification.
FX Series
High-security TL-rated commercial safes with heavier wall construction and cash ratings up to $450,000 for serious storage.
Infinity Safes
Your GC Series Safe. Elevated Beyond Recognition. Bespoke interiors, premium finishes, and watch winders — built on the same proven security platform you trust.
Infinity Safes takes the security platform you’ve chosen and transforms it into something genuinely extraordinary. Custom paint, polished hardware, fitted interiors and bespoke finishes — every element designed, finished, and installed in Perth.
If your GC Series safe is going somewhere it needs to look exceptional — a dedicated firearm room, gun room or premium collection display — Infinity is the answer.
