ACT
POS deposit slot
Note slot accepts cash, envelopes and small deposit pouches without inserting fingers into the safe — the standard solution for staff cash management at the point of sale.
Under-Counter Series
UC Series High-security commercial and domestic safes
The UC Series is Dominator's compact under-counter deposit range — designed for point-of-sale environments where staff need to drop cash and envelopes throughout the day without ever opening a main safe door. Three models from UC-1 (35L cube) through to compact UC-2 and UC-3 envelope-format units. Note slot accepts cash without inserting fingers into the safe.
Why UC Series
Engineered for the point of sale.
Compact, secure cube
Solid steel construction throughout. UC-1 (cube format) carries 3 active locking points with secondary relocking. UC-2 and UC-3 use direct locking in a compact envelope-format body for tight installations.
Mount and forget
4 internal bolt holes per model allow under-counter, in-cabinet or floor-fixed installation. Once mounted, the UC Series sits invisibly in your retail environment and accepts deposits all day.
Models
Choose your UC Series safe
UC-2
The same volume as the UC-1, the UC-2 cash deposit box is the next size in the series which changes the orientation to a longer, shorter configuration to allow for envelopes or to fit where other sizes cannot. With such a small door and opening, it limits the ability for attacks on the door of the safe, making it stronger when it needs to be.
- External height
- 200 mm
- Weight
- 10 kg
- Capacity
- 7.3 L
- Locking bolts
- 1 × 25mm
Full specifications
Dimensions & Weight
- External
- 200 × 150 × 305 mm
- Internal
- 195 × 150 × 250 mm
- Total weight
- 10 kg
- Body weight
- 10 kg
- Capacity
- 7.3 L
Interior Fittings
- Shelves
- 0
Door & Clearance
- Door open height
- 150 mm
- Handle projection
- 30 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
Locking & Fixing
- Locking bolts
- 1 × 25mm
- Fixing bolts
- 4 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.22 × 0.17 × 0.36 m
- Packaged weight
- 10 kg
- Pack type
- Carton
Ratings
- Cash rating
- $15,000 in an unsupported situation
UC-1
The UC-1 under counter safe is a very compact cash deposit safe which allows easy transfer of cash into a secure safe at point of sale. The slot is designed to allow notes to be inserted without the needs to open the door, allowing ease of security.
- External height
- 305 mm
- Weight
- 11 kg
- Capacity
- 5.99 L
- Locking bolts
- 1 × 25mm
Full specifications
Dimensions & Weight
- External
- 305 × 150 × 200 mm
- Internal
- 295 × 145 × 150 mm
- Total weight
- 11 kg
- Body weight
- 11 kg
- Capacity
- 5.99 L
Interior Fittings
- Shelves
- 0
Door & Clearance
- Door open height
- 150 mm
- Handle projection
- 30 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
Locking & Fixing
- Locking bolts
- 1 × 25mm
- Fixing bolts
- 4 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.19 × 0.33 × 0.27 m
- Packaged weight
- 11 kg
- Pack type
- Carton
Ratings
- Cash rating
- $20,000 in an unsupported situation
- Insurable valuables
- Up to $200,000

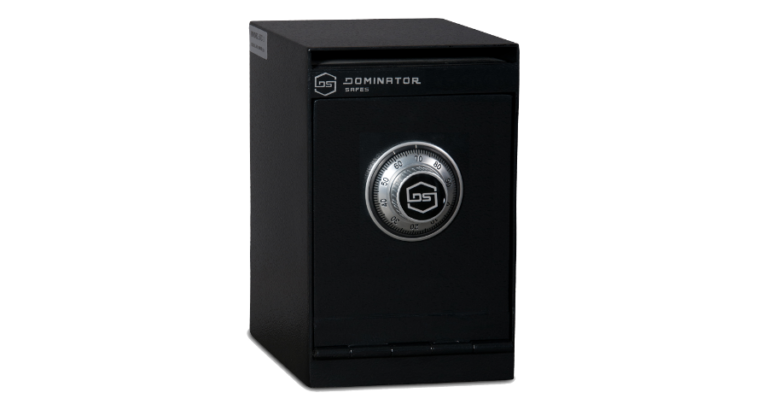

UC-3
The largest of the 3 under counter cash deposit safes, the UC-3 provides more space for point of sale cash deposits, ensuring security where it is most needed.
- External height
- 305 mm
- Weight
- 14 kg
- Capacity
- 11 L
- Locking bolts
- 1 × 25mm
Full specifications
Dimensions & Weight
- External
- 305 × 200 × 255 mm
- Internal
- 295 × 195 × 195 mm
- Total weight
- 14 kg
- Body weight
- 14 kg
- Capacity
- 11 L
Interior Fittings
- Shelves
- 0
Door & Clearance
- Door open height
- 200 mm
- Handle projection
- 30 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
Locking & Fixing
- Locking bolts
- 1 × 25mm
- Fixing bolts
- 4 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.22 × 0.33 × 0.32 m
- Packaged weight
- 14 kg
- Pack type
- Carton
Ratings
- Cash rating
- $20,000 in an unsupported situation
- Insurable valuables
- Up to $200,00
PSD-1
The PSD-1 deposit box is a very popular option for retail applications, dues to its compact size, but the ability to be fitted with an electronic lock efficiently. The handle operate 3 x 32mm diameter locking bolts and the body and frame are made with a combination of 6mm and 12mm thick steel plate, making it a formidable cash deposit safe for high security applications.
- External height
- 355 mm
- Weight
- 52 kg
- Capacity
- 31 L
- Locking bolts
- 2 × Ø30
Full specifications
Dimensions & Weight
- External
- 355 × 355 × 355 mm
- Internal
- 345 × 325 × 275 mm
- Total weight
- 52 kg
- Door weight
- 11 kg
- Body weight
- 41 kg
- Capacity
- 31 L
Interior Fittings
- Shelves
- 1
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 645 mm
- Door open width
- 675 mm
- Side clearance
- 595 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 2 × Ø30
- Fixing bolts
- 4 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.51 × 0.58 × 0.37 m
- Packaged weight
- 55 kg
- Pack type
- Skid
Ratings
- Cash rating
- $30,000 in an unsupported situation
- Insurable valuables
- Up to $300,000
At a Glance
UC Series size comparison
All UC Series under-counter safes drawn to actual relative scale. UC-1 at 355mm (cube), UC-2 at 203mm, UC-3 at 305mm — sized to fit under standard retail counters.
Trust and Insurance
Certifications and Insurance
Cash and valuables ratings on every UC Series model. Compact deposit-rated construction for point-of-sale cash management.
Deposit Slot
Note slot — standard
Solid Steel
Compact steel cube
Cash Rating
$15,000 AUD
Anti-Drill
Hardened plating standard
Power for Life
Free batteries — included
Best Warranty
Australia's best warranty
5-Year Warranty
Standard across the range
Independently tested burglary protection
UC Series under-counter safes are built around the realistic attack profile a POS deposit safe faces — opportunistic theft, prying, and basic drilling. Solid steel body and door, hardened anti-drill plating around the lock, and a relocker that engages if attacked. Note slot is sized to accept deposits without allowing fingers (or tools) into the safe interior.
Insurance ratings (AUD)
UC Series safes carry a $15,000 cash rating in unsupported applications. For higher cash-management volumes, the DD Series tilt-drawer deposit safes add cash ratings up to $30,000:
- Cash rating: $15,000 across the range
- Application: point-of-sale cash deposits
Where your end-of-day takings exceed $15K or you need a key-lockable internal compartment, step up to the DD Series.
POS deposit slot standard across the UC Series — secure cash deposits without opening the safe.
Specifications
The full UC Series lineup
| Model | External (H × W × D) | Internal (H × W × D) | Weight | Capacity | Locking bolts | Notes |
|---|---|---|---|---|---|---|
| UC-2 | 200 × 150 × 305 | 195 × 150 × 250 | 10 kg | 7.3 L | 1 × 25mm | |
| UC-1 | 305 × 150 × 200 | 295 × 145 × 150 | 11 kg | 5.99 L | 1 × 25mm | |
| UC-3 | 305 × 200 × 255 | 295 × 195 × 195 | 14 kg | 11 L | 1 × 25mm | |
| PSD-1 | 355 × 355 × 355 | 345 × 325 × 275 | 52 kg | 31 L | 2 × Ø30 |
Specs Detail
Technical Information
Construction
- Solid steel body and door
- Locking points: 3 (UC-1), single point direct (UC-2, UC-3)
- Note slot designed to prevent fishing of deposited items
- Hardened anti-drill plating around the lock
Format and capacity
- UC-1: cube (355mm), 35L — standard POS specification
- UC-2: compact envelope-format (203×152×305mm), 8L
- UC-3: tall envelope-format (305×203×254mm), 13L
Mounting
- 4 internal bolt holes per model
- Suitable for under-counter, in-cabinet or floor mounting
- Compact footprint — fits standard retail counter cavities
Engineering
Construction and Security Features
UC Series under-counter safes are engineered for the unique constraints of point-of-sale cash management — frequent deposits, multiple staff, and tight installation footprints.
Note slot — POS deposit
Note slot accepts cash, envelopes and deposit pouches without opening the main door. Sized to prevent fishing of deposited items.
Solid steel construction
Heavy-gauge solid steel body and door. Compact format optimises steel-per-litre for maximum burglary protection in a small body.
Hardened anti-drill plating
Hardened steel anti-drill plating around the lock — the primary attack vector on compact deposit safes.
3-point bolt work (UC-1)
UC-1 uses 3-point handle-driven bolt work for prying resistance. UC-2 and UC-3 use cost-efficient direct locking in their compact format.
Multi-position mounting
4 internal bolt holes allow under-counter, in-cabinet, or floor-mounting depending on your retail fitout.
Single key-lockable opening
Single main door provides access for end-of-day cash collection. Note slot is the only daily-use opening.
Universal lock footprint
Standardised lock mounting allows easy conversion between key, combination and electronic lock types.
Textured black paint
Durable textured black paint finish — designed for under-counter installations where the safe is rarely seen.
Available in base mounting
UC Series safes are right-hand-hinge standard. 4 internal bolt holes per model allow flexible under-counter, in-cabinet, or floor-fixed installation. Confirm install location with your dealer at order.
Lock Options
Lock Options and Upgrades
Every UC Series model is available in three lock configurations as standard. The Ross 700 key lock is the most common specification for POS environments — single point of access for the manager doing end-of-day collection.
DS-xD
Tecnosicurezza Pulse Electronic
Tecnosicurezza Pulse 2-user electronic safe lock
Operation
6-digit user codes, 2 user capability standard
Power
9V battery (externally changeable) — covered by Power for Life
Best For
Daily access, multi-user environments, fast entry
DS-xC
Group 2 Combination Dial
Group 2 certified 3-wheel combination
Operation
Precision mechanical dial, 3 number combination
Power
None required — works indefinitely without batteries
Best For
Buyers who value simplicity and longevity, environments with no battery maintenance preference
DS-xK
Ross 700 Key Lock
Ross 700 high-security key lock
Operation
Traditional key-turn mechanism
Power
None required
Best For
Buyers who prefer key-access reliability and don't need to share access frequently.
Note
Highest quality mechanical key lock available — can also be specified as a secondary lock on DS-2, DS-3, DS-4 and DS-5 for increased security cash rating
Upgrade
Secondary Key Lock Upgrade
UC Series safes can be specified with a secondary lock where required. For most POS applications a single Ross 700 key lock is the standard specification. Your dealer can advise on the right configuration.
Universal Lock Footprint
UC Series safes use a universal lock mounting footprint — meaning any of the three lock types can be retrofitted to an existing safe by a qualified safe technician.
Configure
Accessories and Spare Parts
Configure your UC Series safe with the accessories below. All accessories are available through your Dominator dealer at point of order or as retrofits.
Deposit Pouches
Tamper-evident deposit pouches sized to suit the UC Series note slot.
UC-POUCH-S
Small tamper-evident deposit pouch
UC-POUCH-M
Medium tamper-evident deposit pouch
Mounting Brackets
Specialised mounting brackets for under-counter and in-cabinet installations.
UC-BRACKET
Under-counter mounting bracket kit
For Specifiers
DS Series Specification Tips
UC-1 — standard POS specification
UC-1 (355mm cube, 35L) is the standard POS deposit specification — fits under most retail counters with 3-point bolt work and a $15K cash rating. UC-2 and UC-3 are compact envelope-format alternatives for tight cabinet installations.
Step up to DD Series for higher volume
If end-of-day takings approach $15K, or you need a key-lockable internal compartment for cash collection, step up to the DD Series tilt-drawer deposit range — cash ratings to $30K with a different (and more secure) drawer mechanism.
Most POS users specify the key lock
For POS deposit safes, the Ross 700 key lock is the most common specification — only the manager needs to open the safe (for end-of-day collection), and a key is the simplest and most reliable mechanism for that use case.
Lifetime Initiative
Power for Life Free batteries for the lifetime of your safe.
Every DS Series safe with an electronic or biometric lock is covered by our Power for Life initiative. Once a year, you can redeem a free replacement battery at any authorised Dominator dealer — no receipts, no conditions, for as long as you own the safe.
It's our way of making sure your safe stays accessible for decades, not just years.
Power for Life applies across the full range: HS Series, DS Series, GC Series (gun cabinets), FA Series and FX Series.
STEP 01
Receive your e-voucher
After registering your warranty
STEP 02
Visit your dealer once a year
With the voucher on your phone
STEP 03
Walk out with a free battery
Recommended Duracell Procell Alkaline battery
Setup
Installation
What to expect
UC Series under-counter safes can be installed by your dealer, your shopfitter, or any qualified installer. All three models can be positioned by one or two people.
Mounting is essential — even a compact under-counter safe can be removed by a determined thief. UC Series safes include 4 internal bolt holes for under-counter, in-cabinet or floor-fixed installations.
Installation checklist
-
01
Identify fixing bolt provisions — every UC Series model has 4 × internal bolt holes for under-counter, in-cabinet or floor mounting. Confirm hole positions with your dealer or shopfitter before drilling.
-
02
Identify install position with access clearance (allow for door swing and handing)
-
03
Confirm delivery access route (doorways, corridors, stairs)
-
04
Schedule installation through your dealer — most offer delivery + install as a package
-
05
Keep installation certificate for insurance records
Base Anchoring Provisions
Top-view footprint of each UC Series model showing the four internal floor anchor bolt positions. All footprints shown to scale relative to each other.
Secondary Defence
Glass Relocker Protection
UC Series safes include a spring-loaded case relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
How it works
A thin glass plate is embedded behind the primary lock body. If a drilling, punch, or torch attack breaks the glass, spring-loaded secondary bolts deploy and jam the locking mechanism. Once activated, the safe cannot be opened even if the primary lock is subsequently bypassed — it requires professional recovery by a qualified safe technician.
The relocker is a permanent protection feature, not a consumable. It exists to make the safe effectively unusable to an attacker even if they partially succeed against the primary lock.
If your relocker activates
If you cannot open your safe and suspect the relocker has engaged (usually after attempted forced entry), contact your Dominator dealer immediately. Do not attempt forced opening — this can cause permanent damage to the safe body.
A qualified safe technician can recover the relocker and restore normal operation. The safe itself remains structurally sound and can usually return to service after a relocker recovery.
Maintenance and Servicing
UC Series safes require minimal maintenance. Clean the note slot periodically to remove paper dust and debris that can build up from frequent deposits. Lubricate locks and hinges occasionally and replace electronic lock batteries annually under Power for Life.
Every 12 months
Battery replacement (electronic/biometric locks)
Redeem your free battery through Power for Life. Replace before low-battery warnings, not after.
Every 12 months
Lock lubrication (mechanical dials)
Apply a drop of lock-grade lubricant to the dial spindle annually. Avoid WD-40 or general-purpose oils — they can gum up precision movements.
Every 12 to 24 months, depending if commercial or domestic use
Professional service
Book a qualified safe technician to inspect hinges, bolt work, and relocker mechanism. Typical service takes 30–60 minutes.
Every 5 years
Seal inspection
Check fire seals (where fitted) for compression and integrity. Replace if damaged.
Support
Troubleshooting
UC Series safes include a spring-loaded case relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
Electronic lock won't open — no response from keypad.
Battery is most likely depleted. Replace the 9V battery and try your code again. Use a brand-new Duracell 9V Alkaline battery only. If the keypad still doesn’t respond, contact your dealer for diagnosis.
Electronic lock responds but rejects correct code.
Mechanical dial won't open — combination correct but bolts don't retract.
Lock is working, but handle does not unlock.
Safe door is difficult to open or close.
Safe is damaged or inoperable after attempted forced entry.
Still Stuck?
Contact your Dominator dealer for support, or call 1300 366 462 for direct assistance.
Pricing and availability through our dealer network.
With dealers across Australia and New Zealand, there's a Dominator specialist near you.
UC Series
Compact postal-slot deposit safes for under-counter cash drops, with a letterbox-style slot and secure separate access.
GC Series
Gun cabinets and premium gun safes for licensed firearm owners. Australian-compliant configurations from cabinet through to fire-rated.
IQ Pistol Series
Compact pistol safes for handgun storage, with fire-rated construction, quick-access locks and AS-compliant design.
DF Series
In-floor safes that disappear into concrete slabs. Discreet, hard to remove, and fitted with reinforced base plates.
DD Series
Tilt-drawer deposit safes for retail and hospitality. Drop cash without opening the safe, with insurable cash ratings up to $30,000.
DR Series
Compact drug safes for clinics and pharmacies, with cash ratings and the security construction needed for restricted-substance storage.
FA Series
Commercial-grade fire-resistant safes built for offices and retail, with higher cash ratings and 105-minute CNS fire certification.
FX Series
High-security TL-rated commercial safes with heavier wall construction and cash ratings up to $450,000 for serious storage.
Infinity Safes
Your UC Series Safe. Elevated Beyond Recognition. Bespoke interiors, premium finishes, and watch winders — built on the same proven security platform you trust.
Infinity Safes takes the security platform you’ve chosen and transforms it into something genuinely extraordinary. Custom paint, polished hardware, fitted interiors and bespoke finishes — every element designed, finished, and installed in Perth.
If your UC Series safe is going somewhere it needs to look exceptional — a premium retail counter or hospitality cash station — Infinity is the answer.
