Solid steel home safe
Heavy-gauge steel body and door, hardened anti-drill plating, and 32mm chrome-plated locking bolts. Built to a higher specification than the typical home safe and ready for decades of use.
Home Safe Series
HS Series High-security commercial and domestic safes
The HS Series is Dominator's flagship home safe range — engineered for households that want serious protection for documents, jewellery, cash and valuables. Five models from compact HS-1 through full-height HS-5, all with 32mm chrome-plated locking bolts, hardened anti-drill plating and insurable cash ratings to $40,000.
Why HS Series
Engineered for the home.
$40K cash, $400K valuables
Insurable cash rating $40,000 and valuables rating $400,000 across the range. Independent ratings your home insurer can use to set jewellery, cash and contents sub-limits.
Configurable to your storage
Five sizes from 24L (HS-1) to 147L (HS-5). HS-3, HS-4 and HS-5 share footprint pairings for upgrade paths. Three lock options — key, dial or electronic.
Models
Choose your HS Series safe

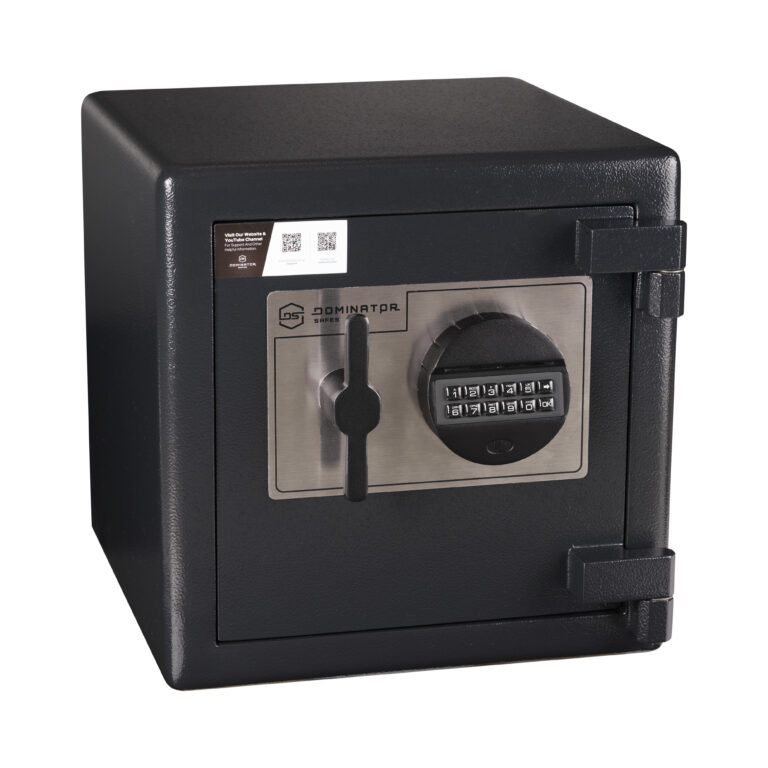

HS-1
While the HS-1 is the smallest in the series, it is still large enough to securely store vital A4 documents inside. Secured by 3 extra-large 32mm diameter locking bolts, the HS-1 is the perfect domestic safe.
- External height
- 355 mm
- Weight
- 54 kg
- Capacity
- 23.6 L
- Locking bolts
- 3 × Ø30
Full specifications
Dimensions & Weight
- External
- 355 × 355 × 355 mm
- Internal
- 315 × 300 × 250 mm
- Total weight
- 54 kg
- Door weight
- 15 kg
- Body weight
- 39 kg
- Capacity
- 23.6 L
Interior Fittings
- Shelves
- 1
- Hooks
- 4
Door & Clearance
- Door swing angle
- 155°
- Door open height
- 640 mm
- Door open width
- 670 mm
- Side clearance
- 595 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 3 × Ø30
- Fixing bolts
- 4 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.5 × 0.6 × 0.4 m
- Packaged weight
- 60 kg
- Pack type
- Skid
Ratings
- Cash rating
- $40,000
- Insurable valuables
- Up to $400,000
- Fire rating
- 30 minute recommended
HS-2
An efficient use of space, additional locking points and increased security features found in the HS-2 safe allow it to provide unrivalled value for money.
- External height
- 510 mm
- Weight
- 79 kg
- Capacity
- 42.7 L
- Locking bolts
- 5 × Ø30
Full specifications
Dimensions & Weight
- External
- 510 × 380 × 380 mm
- Internal
- 470 × 330 × 275 mm
- Total weight
- 79 kg
- Door weight
- 23 kg
- Body weight
- 56 kg
- Capacity
- 42.7 L
Interior Fittings
- Shelves
- 2
- Hooks
- 4
Door & Clearance
- Door swing angle
- 155°
- Door open height
- 675 mm
- Door open width
- 715 mm
- Side clearance
- 625 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 5 × Ø30
- Fixing bolts
- 4 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.65 × 0.6 × 0.4 m
- Packaged weight
- 85 kg
- Pack type
- Skid
Ratings
- Cash rating
- $40,000
- Insurable valuables
- Up to $400,000
- Fire rating
- 30 minute recommended
HS-3
Commercial internal sizing in a domestic safe allows for higher than average storage capacity requirements without needing to pay for unnecessary commercial safe features.
- External height
- 510 mm
- Weight
- 111 kg
- Capacity
- 85.5 L
- Locking bolts
- 5 × Ø30
Full specifications
Dimensions & Weight
- External
- 510 × 510 × 510 mm
- Internal
- 470 × 455 × 400 mm
- Total weight
- 111 kg
- Door weight
- 29 kg
- Body weight
- 82 kg
- Capacity
- 85.5 L
Interior Fittings
- Shelves
- 2
- Hooks
- 6
Door & Clearance
- Door swing angle
- 155°
- Door open height
- 930 mm
- Door open width
- 965 mm
- Side clearance
- 905 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 5 × Ø30
- Fixing bolts
- 4 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.65 × 0.6 × 0.55 m
- Packaged weight
- 118 kg
- Pack type
- Skid
Ratings
- Cash rating
- $40,000
- Insurable valuables
- Up to $400,000
- Fire rating
- 30 minute recommended
HS-4
The increased height in the HS-4 improves accessibility without imposing further on floor space. The narrow profile allows installations where limited depth of space is available.
- External height
- 685 mm
- Weight
- 128 kg
- Capacity
- 80.7 L
- Locking bolts
- 7 × Ø30
Full specifications
Dimensions & Weight
- External
- 685 × 510 × 380 mm
- Internal
- 645 × 455 × 275 mm
- Total weight
- 128 kg
- Door weight
- 38 kg
- Body weight
- 90 kg
- Capacity
- 80.7 L
Interior Fittings
- Shelves
- 3
- Hooks
- 6
Door & Clearance
- Door swing angle
- 155°
- Door open height
- 930 mm
- Door open width
- 840 mm
- Side clearance
- 905 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 7 × Ø30
- Fixing bolts
- 4 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 0.82 × 0.57 × 0.47 m
- Packaged weight
- 135 kg
- Pack type
- Skid
Ratings
- Cash rating
- $40,000
- Insurable valuables
- Up to $400,000
- Fire rating
- 30 minute recommended

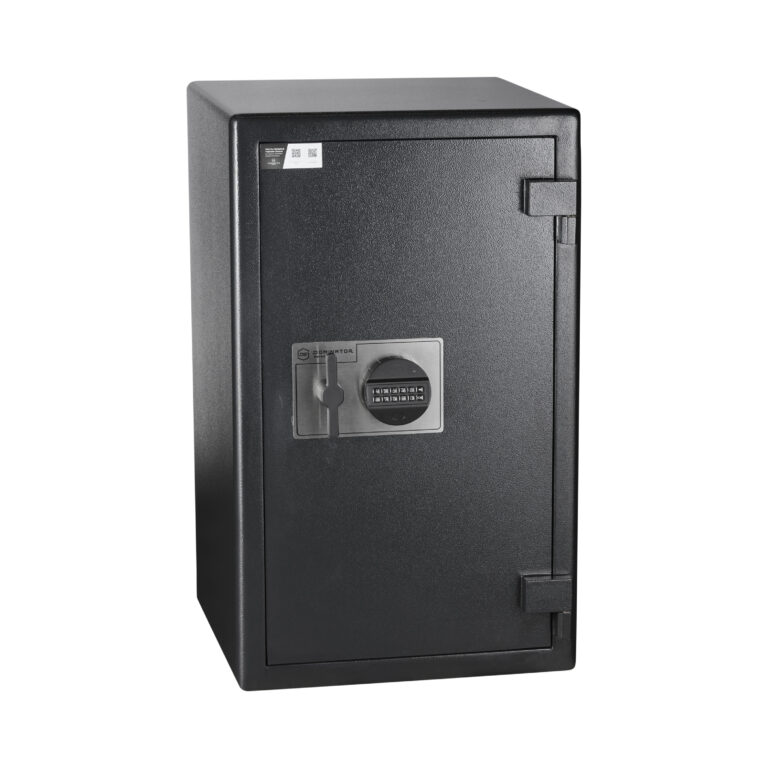

HS-5
Using the same footprint as the HS-3 size, the large HS-5 provides 150L storage capacity ensuring high level security for large volume secure storage.
- External height
- 845 mm
- Weight
- 162 kg
- Capacity
- 146.5 L
- Locking bolts
- 7 × Ø30
Full specifications
Dimensions & Weight
- External
- 845 × 510 × 510 mm
- Internal
- 805 × 455 × 400 mm
- Total weight
- 162 kg
- Door weight
- 46 kg
- Body weight
- 116 kg
- Capacity
- 146.5 L
Interior Fittings
- Shelves
- 3
- Hooks
- 6
Door & Clearance
- Door swing angle
- 155°
- Door open height
- 930 mm
- Door open width
- 965 mm
- Side clearance
- 905 mm
- Handle projection
- 35 mm
- Door thickness
- 12 mm
- Body thickness
- 6 mm
- Overall door thickness
- 80 mm
Locking & Fixing
- Locking bolts
- 7 × Ø30
- Fixing bolts
- 4 × Ø14
Packaged & Shipping
- Packaged (H × W × D)
- 1 × 0.6 × 0.55 m
- Packaged weight
- 172 kg
- Pack type
- Skid
Ratings
- Cash rating
- $40,000
- Insurable valuables
- Up to $400,000
- Fire rating
- 30 minute recommended
At a Glance
HS Series size comparison
All HS Series safes drawn to actual relative scale. HS-1 at 355mm through to HS-5 at 845mm — with a 1700mm person silhouette for reference.
Trust and Insurance
Certifications and Insurance
Cash and insurable valuables ratings on every HS Series model. Insurance-grade construction with insurer-recognised ratings.
Solid Steel
Heavy-gauge construction
Anti-Drill
Hardened anti-drill plating
Cash Rating
$40,000 AUD
Valuables
$400,000 AUD
Power for Life
Free batteries — included
Best Warranty
Australia's best warranty
5-Year Warranty
Standard across the range
Independently tested burglary protection
HS Series safes are built around a realistic home-attack profile — opportunistic forced entry, prying, and basic drilling. Heavy-gauge steel body and door, hardened anti-drill plating around the lock, and 32mm chrome-plated locking bolts that engage across the opening side. Spring-loaded case relocker engages if the lock is attacked.
Insurance ratings (AUD)
HS Series safes carry insurable ratings that your home or business insurer can use to set sub-limits for cash, jewellery and valuables:
- Cash rating: $40,000 across the range
- Valuables rating: $400,000
For higher ratings, the DS Series ($80–90K) or commercial FA / FX Series provide additional steps. Your dealer can confirm exact specifications.
Insurance-rated home safe construction across the full HS Series range.
Specifications
The full HS Series lineup
| Model | External (H × W × D) | Internal (H × W × D) | Weight | Capacity | Locking bolts | Notes |
|---|---|---|---|---|---|---|
| HS-1 | 355 × 355 × 355 | 315 × 300 × 250 | 54 kg | 23.6 L | 3 × Ø30 | |
| HS-2 | 510 × 380 × 380 | 470 × 330 × 275 | 79 kg | 42.7 L | 5 × Ø30 | |
| HS-3 | 510 × 510 × 510 | 470 × 455 × 400 | 111 kg | 85.5 L | 5 × Ø30 | |
| HS-4 | 685 × 510 × 380 | 645 × 455 × 275 | 128 kg | 80.7 L | 7 × Ø30 | |
| HS-5 | 845 × 510 × 510 | 805 × 455 × 400 | 162 kg | 146.5 L | 7 × Ø30 |
Specs Detail
Technical Information
Door specifications
- Heavy-gauge solid steel door
- 32mm chrome-plated locking bolts
- Locking points: 3 (HS-1), 4 (HS-2, HS-3), 5 (HS-4, HS-5)
- Hardened anti-drill plating, spring-loaded case relocker
Capacity
- HS-1: 24L — A4 documents, jewellery, compact valuables
- HS-2: 43L — small-household configuration
- HS-3: 86L — common household specification
- HS-4: 81L — narrow-profile, taller alternative to HS-3
- HS-5: 147L — full-height, maximum capacity
Clearance and installation
- 4 internal recessed bolt-down provisions on every model
- Side clearance 300mm+ for door swing
- Recommended front clearance for access: add 600mm to door swing
Engineering
Construction and Security Features
HS Series safes are engineered around the realistic attack profile a home safe faces — opportunistic prying, basic drilling, and forced removal. Every feature below is standard across the range.
Solid steel body and door
Heavy-gauge steel construction throughout. Reinforced framework provides strength against forced-entry attacks.
32mm chrome-plated bolts
Locking bolt count scales 3 → 5 across the range. Chrome plating prevents corrosion through decades of use.
Hardened anti-drill plating
Hardened steel anti-drill plating around the lock and a spring-loaded case relocker that engages if the lock is attacked.
Single-lock and multi-bolt
HS-1 includes 3 active + 3 fixed bolts; HS-2 onwards uses handle-driven multi-point bolt work for prying resistance.
Lift-off hinges
Hinge design that protects against hinge attacks — the door remains secured even if hinges are removed.
Configurable interior
Adjustable shelves on HS-2 onwards. HS-1 includes a single shelf to organise documents and small items.
Universal lock footprint
Standardised lock mounting allows easy conversion between key, combination and electronic lock types.
Textured black paint
Durable textured black paint finish provides lasting protection against scratches and corrosion.
Available in base mounting
Available in Left & Right Hand Hinge
HS Series safes can be specified left-hand or right-hand hinge. Standard stock is RHH with limited stock of LHH. Confirm hinge handing with your dealer at time of order.
Lock Options
Lock Options and Upgrades
Every HS Series model is available in three lock configurations as standard. All lock types use a universal footprint, meaning conversion between types is straightforward for a qualified safe technician.
DS-xD
Tecnosicurezza Pulse Electronic
Tecnosicurezza Pulse 2-user electronic safe lock
Operation
6-digit user codes, 2 user capability standard
Power
9V battery (externally changeable) — covered by Power for Life
Best For
Daily access, multi-user environments, fast entry
DS-xC
Group 2 Combination Dial
Group 2 certified 3-wheel combination
Operation
Precision mechanical dial, 3 number combination
Power
None required — works indefinitely without batteries
Best For
Buyers who value simplicity and longevity, environments with no battery maintenance preference
DS-xK
Ross 700 Key Lock
Ross 700 high-security key lock
Operation
Traditional key-turn mechanism
Power
None required
Best For
Buyers who prefer key-access reliability and don't need to share access frequently.
Note
Highest quality mechanical key lock available — can also be specified as a secondary lock on DS-2, DS-3, DS-4 and DS-5 for increased security cash rating
Upgrade
Secondary Key Lock Upgrade
HS Series safes can be specified with a secondary Ross 700 key lock for layered security. Adding a secondary lock can satisfy specific insurance requirements for higher-value contents.
Universal Lock Footprint
HS Series safes use a universal lock mounting footprint — meaning any of the three lock types can be retrofitted to an existing safe by a qualified safe technician.
Configure
Accessories and Spare Parts
Configure your HS Series safe with the accessories below. All accessories are available through your Dominator dealer at point of order or as retrofits.
Shelves
Additional adjustable shelves with fitting clips. Sized to suit each HS Series model.
HS-1SHELF
Adjustable shelf and clips to suit HS-1
HS-2SHELF
Adjustable shelf and clips to suit HS-2
HS-3SHELF
Adjustable shelf and clips to suit HS-3
HS-4SHELF
Adjustable shelf and clips to suit HS-4
HS-5SHELF
Adjustable shelf and clips to suit HS-5
Jewellery Trays
Velvet-lined jewellery trays sized for compartmented storage of rings, watches and small valuables.
IQ-JEWEL-1
Shelf and jewellery tray to suit HS-1
IQ-JEWEL-2
Shelf and jewellery tray to suit HS-2
IQ-JEWEL-3
Shelf and jewellery tray to suit HS-3, HS-5
For Specifiers
DS Series Specification Tips
HS-3 vs HS-4 — depth or height
HS-3 and HS-4 share volume but differ in form: HS-3 is a 510mm cube; HS-4 is taller (685mm) but narrower in depth (380mm). Pick HS-4 where wall depth is constrained.
HS-3 / HS-5 share footprint
HS-5 is the same 510×510mm footprint as HS-3 but 845mm tall — making it an upgrade path if your storage needs grow. Plan installation with that in mind.
Lock by access frequency
Daily-access households typically prefer the electronic Tecnosicurezza Pulse 2; weekly or monthly access works fine on the Group 2 dial; key lock is the most cost-efficient and reliable for occasional access.
Lifetime Initiative
Power for Life Free batteries for the lifetime of your safe.
Every DS Series safe with an electronic or biometric lock is covered by our Power for Life initiative. Once a year, you can redeem a free replacement battery at any authorised Dominator dealer — no receipts, no conditions, for as long as you own the safe.
It's our way of making sure your safe stays accessible for decades, not just years.
Power for Life applies across the full range: HS Series, DS Series, GC Series (gun cabinets), FA Series and FX Series.
STEP 01
Receive your e-voucher
After registering your warranty
STEP 02
Visit your dealer once a year
With the voucher on your phone
STEP 03
Walk out with a free battery
Recommended Duracell Procell Alkaline battery
Setup
Installation
What to expect
Most HS Series safes can be installed by your dealer or a qualified safe installer. HS-1 and HS-2 can be positioned by one or two people; HS-3 onwards typically requires a trolley.
Floor bolting is strongly recommended — an unbolted home safe can be removed by a determined thief. HS Series safes include 4 internal recessed bolt-down provisions on every model.
Installation checklist
-
01
Identify fixing bolt provisions — every HS Series model has 4 × internal recessed bolt holes. Confirm hole positions with your dealer before drilling.
-
02
Identify install position with access clearance (allow for door swing and handing)
-
03
Confirm delivery access route (doorways, corridors, stairs)
-
04
Schedule installation through your dealer — most offer delivery + install as a package
-
05
Keep installation certificate for insurance records
Base Anchoring Provisions
Top-view footprint of each HS Series model showing the four internal recessed floor anchor bolt positions. All footprints shown to scale relative to each other.
Secondary Defence
Glass Relocker Protection
HS Series safes include a spring-loaded case relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
How it works
A thin glass plate is embedded behind the primary lock body. If a drilling, punch, or torch attack breaks the glass, spring-loaded secondary bolts deploy and jam the locking mechanism. Once activated, the safe cannot be opened even if the primary lock is subsequently bypassed — it requires professional recovery by a qualified safe technician.
The relocker is a permanent protection feature, not a consumable. It exists to make the safe effectively unusable to an attacker even if they partially succeed against the primary lock.
If your relocker activates
If you cannot open your safe and suspect the relocker has engaged (usually after attempted forced entry), contact your Dominator dealer immediately. Do not attempt forced opening — this can cause permanent damage to the safe body.
A qualified safe technician can recover the relocker and restore normal operation. The safe itself remains structurally sound and can usually return to service after a relocker recovery.
Maintenance and Servicing
HS Series safes require minimal maintenance but benefit from occasional service to keep locks and hinges operating smoothly through years of use.
Every 12 months
Battery replacement (electronic/biometric locks)
Redeem your free battery through Power for Life. Replace before low-battery warnings, not after.
Every 12 months
Lock lubrication (mechanical dials)
Apply a drop of lock-grade lubricant to the dial spindle annually. Avoid WD-40 or general-purpose oils — they can gum up precision movements.
Every 12 to 24 months, depending if commercial or domestic use
Professional service
Book a qualified safe technician to inspect hinges, bolt work, and relocker mechanism. Typical service takes 30–60 minutes.
Every 5 years
Seal inspection
Check fire seals (where fitted) for compression and integrity. Replace if damaged.
Support
Troubleshooting
HS Series safes include a spring-loaded case relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
Electronic lock won't open — no response from keypad.
Battery is most likely depleted. Replace the 9V battery and try your code again. Use a brand-new Duracell 9V Alkaline battery only. If the keypad still doesn’t respond, contact your dealer for diagnosis.
Electronic lock responds but rejects correct code.
Mechanical dial won't open — combination correct but bolts don't retract.
Lock is working, but handle does not unlock.
Safe door is difficult to open or close.
Safe is damaged or inoperable after attempted forced entry.
Still Stuck?
Contact your Dominator dealer for support, or call 1300 366 462 for direct assistance.
Pricing and availability through our dealer network.
With dealers across Australia and New Zealand, there's a Dominator specialist near you.
UC Series
Compact postal-slot deposit safes for under-counter cash drops, with a letterbox-style slot and secure separate access.
GC Series
Gun cabinets and premium gun safes for licensed firearm owners. Australian-compliant configurations from cabinet through to fire-rated.
IQ Pistol Series
Compact pistol safes for handgun storage, with fire-rated construction, quick-access locks and AS-compliant design.
DF Series
In-floor safes that disappear into concrete slabs. Discreet, hard to remove, and fitted with reinforced base plates.
DD Series
Tilt-drawer deposit safes for retail and hospitality. Drop cash without opening the safe, with insurable cash ratings up to $30,000.
DR Series
Compact drug safes for clinics and pharmacies, with cash ratings and the security construction needed for restricted-substance storage.
FA Series
Commercial-grade fire-resistant safes built for offices and retail, with higher cash ratings and 105-minute CNS fire certification.
FX Series
High-security TL-rated commercial safes with heavier wall construction and cash ratings up to $450,000 for serious storage.
Infinity Safes
Your HS Series Safe. Elevated Beyond Recognition. Bespoke interiors, premium finishes, and watch winders — built on the same proven security platform you trust.
Infinity Safes takes the security platform you’ve chosen and transforms it into something genuinely extraordinary. Custom paint, polished hardware, fitted interiors and bespoke finishes — every element designed, finished, and installed in Perth.
If your HS Series safe is going somewhere it needs to look exceptional — a premium home or boutique installation — Infinity is the answer.
