Solid steel and concrete composite body and door, independent fire ratings, and UL-classified cash ratings on all models. Every DS Series safe is built to recognised standards, with documentation for insurance purposes.
High-Security Series
DS Series High-security commercial and domestic safes
The DS Series is Dominator's flagship high-security range — engineered for homes and businesses that need more than a standard safe. Seven models from compact DS-0 through full-height DS-7, plus the DS-D variant with integrated deposit compartment. Fire-rated construction, certified cash ratings, and lock options from mechanical dial to biometric.
Why DS Series
Engineered to a higher standard.
Engineered for longevity
Heavy-gauge steel, chrome-plated locking bolts, and relocker protection. DS Series safes routinely outlast the homes and offices they're installed in.
Configurable to the application
Multiple lock options — key lock, mechanical combination dial, electronic keypad, or biometric. Interior finished to suit documents, cash, valuables, or mixed use.
Models
Choose your DS Series safe

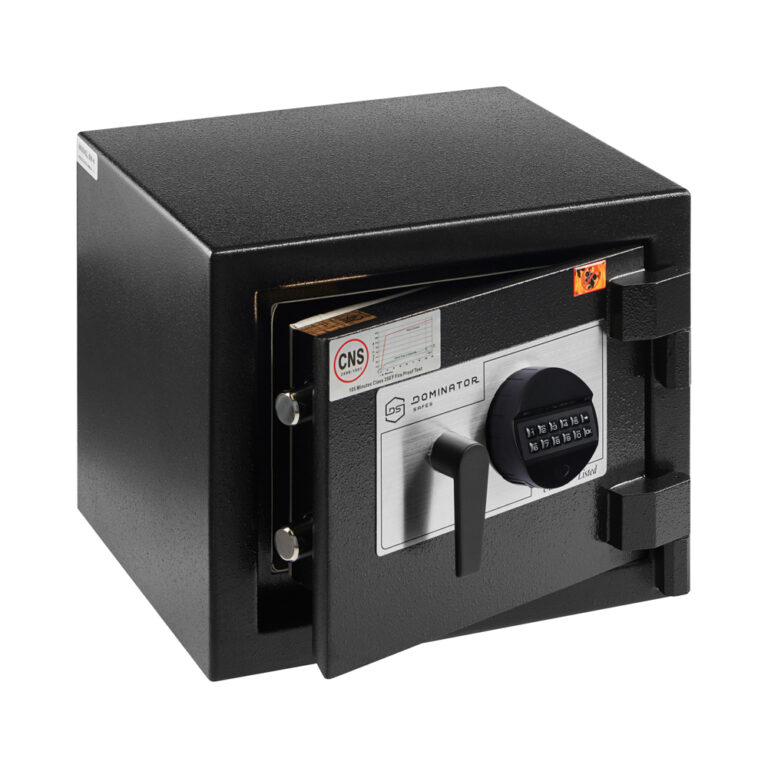

DS-0
Certified home safe with independent UL-RSC certification and CNS 105-minute certified fire. Compact DS-0 RSC performance aligns with the EN 1143-1 Grade II class—above EN 14450 S2 and S1 home duals and EN 1143-1 Grade 0 and Grade I—without claiming an EN or ECB•S certificate.
- External height
- 370 mm
- Weight
- 67 kg
- Capacity
- 19 L
- Locking bolts
- 2 × Ø30
Full specifications
Dimensions & Weight
- External
- 370 × 440 × 390 mm
- Internal
- 235 × 350 × 235 mm
- Total weight
- 67 kg
- Door weight
- 21 kg
- Body weight
- 46 kg
- Capacity
- 19 L
Interior Fittings
- Shelves
- 1
- Hooks
- 4
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 795 mm
- Door open width
- 785 mm
- Side clearance
- 310 mm
- Handle projection
- 35 mm
- Door thickness
- 50 mm
- Body thickness
- 40 mm
- Overall door thickness
- 122 mm
Locking & Fixing
- Locking bolts
- 2 × Ø30

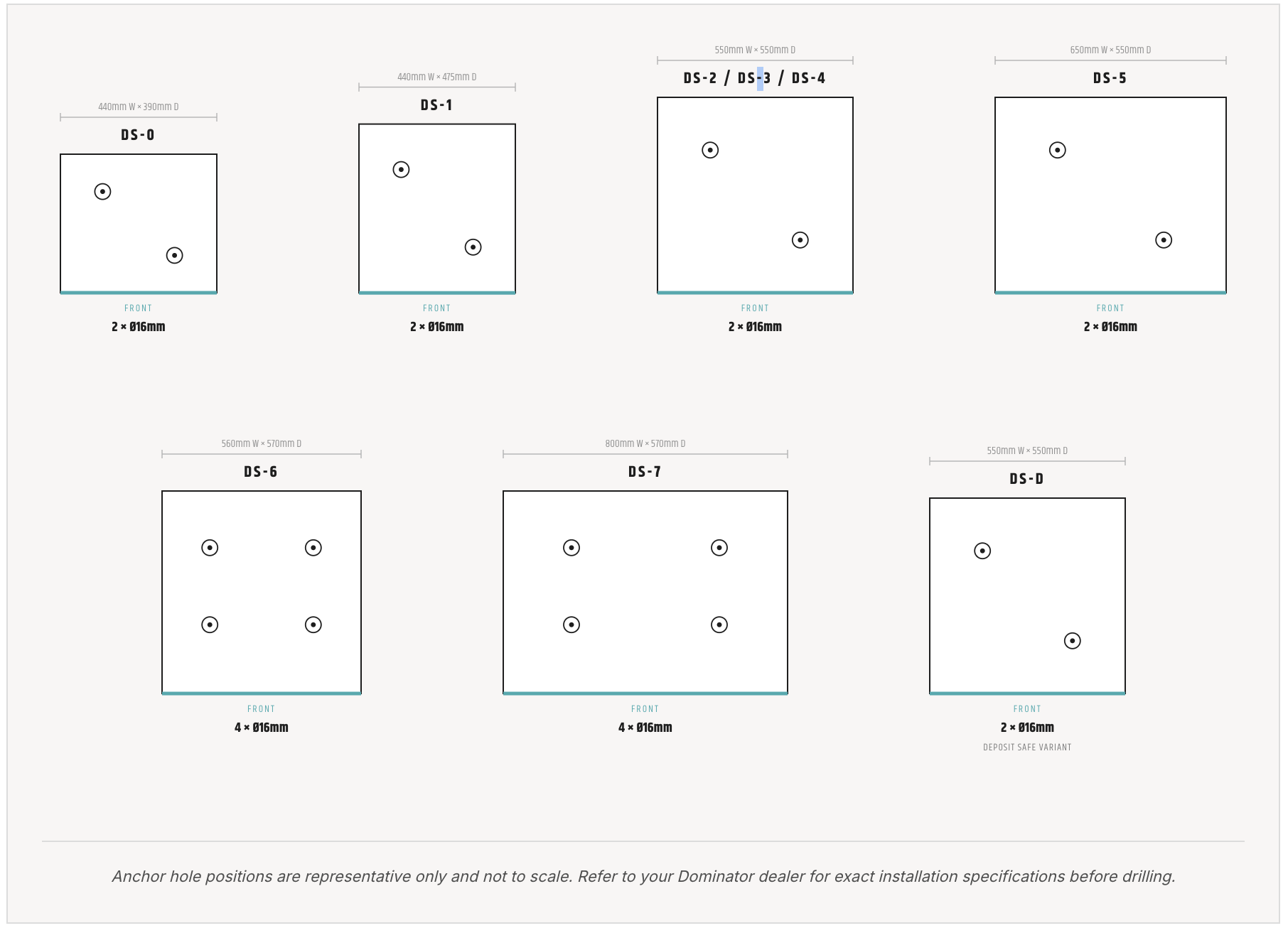

- Fixing bolts
- 2 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 0.5 × 0.6 × 0.5 m
- Packaged weight
- 75 kg
- Pack type
- Skid
Ratings
- Cash rating
- $80,000 ($90,000 with additional key lock)
- Insurable valuables
- Up to $800,000 to $900,000
- Fire rating
- 105 minute CNS Tested
Notes
- Notes
- Compact — entry-level secure home safe

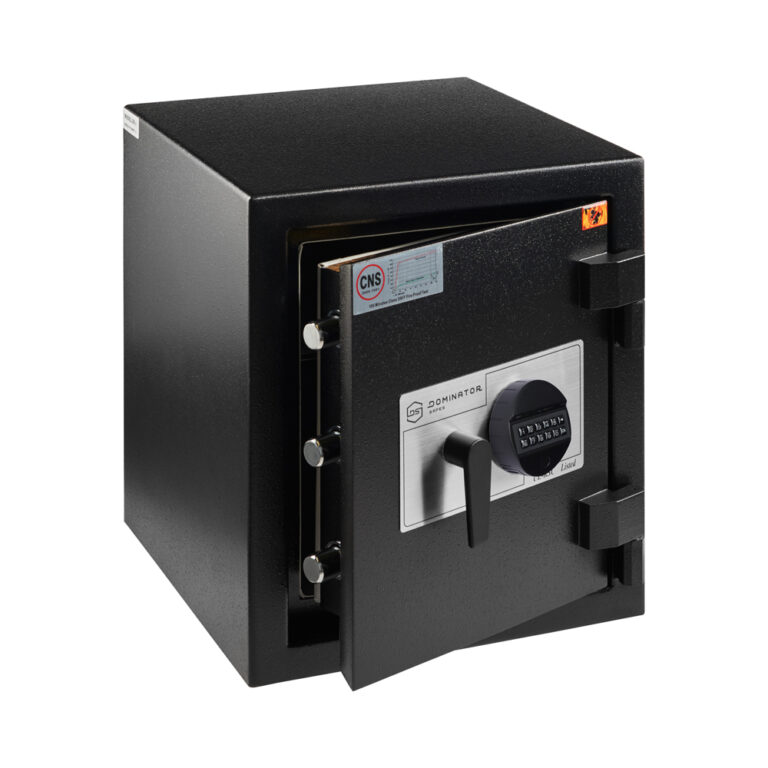

DS-1
Certified home safe with more capacity, independent UL-RSC certification and CNS 105-minute certified fire. DS-1 has over 60% more volume while the same UL-RSC + CNS 105 certified fire packet delivers RSC performance aligned with the EN 1143-1 Grade II class—above EN 14450 S2 and S1 home duals and EN 1143-1 Grade 0 and Grade I—without claiming an EN or ECB•S certificate.
- External height
- 515 mm
- Weight
- 103 kg
- Capacity
- 32 L
- Locking bolts
- 3 × Ø30
Full specifications
Dimensions & Weight
- External
- 515 × 440 × 475 mm
- Internal
- 375 × 295 × 285 mm
- Total weight
- 103 kg
- Door weight
- 29 kg
- Body weight
- 74 kg
- Capacity
- 32 L
Interior Fittings
- Shelves
- 1
- Hooks
- 4
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 790 mm
- Door open width
- 865 mm
- Side clearance
- 310 mm
- Handle projection
- 35 mm
- Door thickness
- 50 mm
- Body thickness
- 40 mm
- Overall door thickness
- 122 mm
Locking & Fixing
- Locking bolts
- 3 × Ø30
- Fixing bolts
- 2 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 0.65 × 0.6 × 0.5 m
- Packaged weight
- 110 kg
- Pack type
- Skid
Ratings
- Cash rating
- $80,000 ($90,000 with additional key lock)
- Insurable valuables
- Up to $800,000 to $900,000
- Fire rating
- 105 minute CNS Tested
Notes
- Notes
- Small home or office

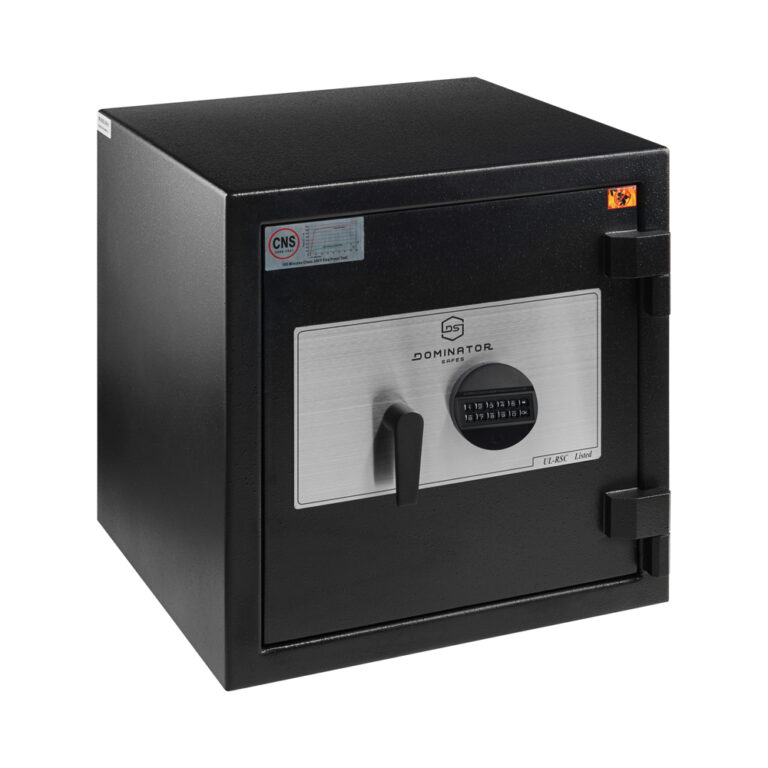

DS-2
The DS-2 is the first size to include the large commercial safe footprint, making it the perfect solution for securing cash register till drawers and large valuables, protecting them from theft and fire. The DS-2 is also the first of the DS Series safes to provide dual internal relocking devices and 3 directional locking bolts for added security.
- External height
- 570 mm
- Weight
- 155 kg
- Capacity
- 63.4 L
- Locking bolts
- 5 × Ø30
Full specifications
Dimensions & Weight
- External
- 570 × 550 × 550 mm
- Internal
- 435 × 405 × 360 mm
- Total weight
- 155 kg
- Door weight
- 47 kg
- Body weight
- 108 kg
- Capacity
- 63.4 L
Interior Fittings
- Shelves
- 2
- Hooks
- 6
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 1015 mm
- Door open width
- 1055 mm
- Side clearance
- 390 mm
- Handle projection
- 35 mm
- Door thickness
- 50 mm
- Body thickness
- 40 mm
- Overall door thickness
- 122 mm
Locking & Fixing
- Locking bolts
- 5 × Ø30
- Fixing bolts
- 2 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 0.7 × 0.6 × 0.65 m
- Packaged weight
- 163 kg
- Pack type
- Skid
Ratings
- Cash rating
- $80,000 ($90,000 with additional key lock)
- Insurable valuables
- Up to $800,000 to $900,000
- Fire rating
- 105 minute CNS Tested
Notes
- Notes
- Medium home or business

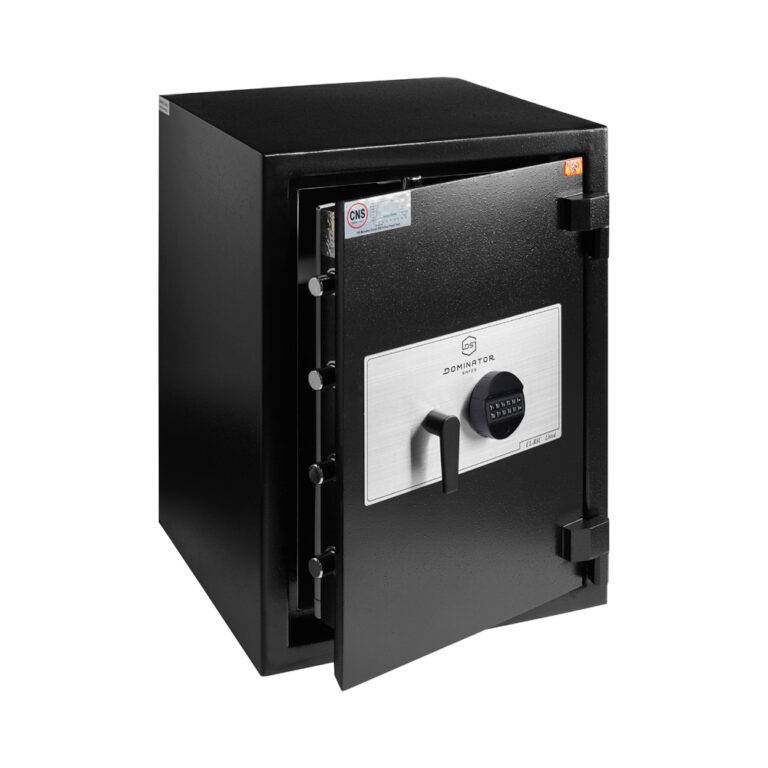

DS-3
Using the same footprint as the DS-2, the DS-3 provides 97L of secure storage and protection from fire. With 6 locking points around the door, the DS-3 provides exceptional protection against forced entry and intense fire.
- External height
- 770 mm
- Weight
- 189 kg
- Capacity
- 92 L
- Locking bolts
- 6 × Ø30
Full specifications
Dimensions & Weight
- External
- 770 × 550 × 550 mm
- Internal
- 630 × 405 × 360 mm
- Total weight
- 189 kg
- Door weight
- 57 kg
- Body weight
- 132 kg
- Capacity
- 92 L
Interior Fittings
- Shelves
- 2
- Hooks
- 6
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 1015 mm
- Door open width
- 1055 mm
- Side clearance
- 390 mm
- Handle projection
- 35 mm
- Door thickness
- 50 mm
- Body thickness
- 40 mm
- Overall door thickness
- 122 mm
Locking & Fixing
- Locking bolts
- 6 × Ø30
- Fixing bolts
- 2 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 0.9 × 0.6 × 0.65 m
- Packaged weight
- 197 kg
- Pack type
- Skid
Ratings
- Cash rating
- $80,000 ($90,000 with additional key lock)
- Insurable valuables
- Up to $800,000 to $900,000
- Fire rating
- 105 minute CNS Tested
Notes
- Notes
- Full-size home or commercial

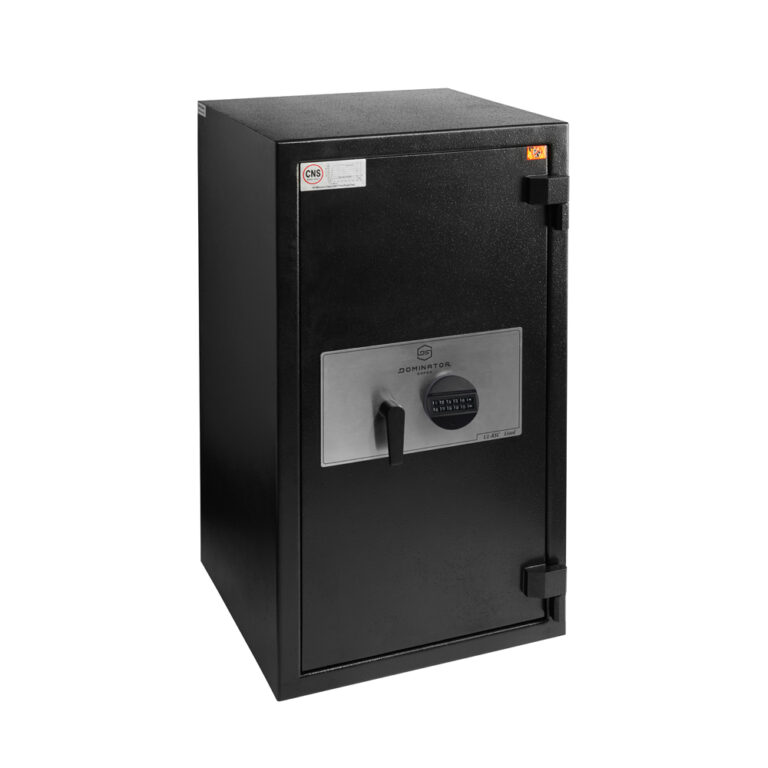

DS-4
Standing over 1m tall, the DS-4 is the perfect high volume commercial safe. The tall narrow orientation reduces the amount of floor space required and making it easy to install through narrow doorways. While providing large amounts of internal secure storage, the DS-4 also makes regular access simple and easy.
- External height
- 1015 mm
- Weight
- 291 kg
- Capacity
- 128 L
- Locking bolts
- 7 × Ø30
Full specifications
Dimensions & Weight
- External
- 1015 × 550 × 550 mm
- Internal
- 875 × 405 × 360 mm
- Total weight
- 291 kg
- Door weight
- 74 kg
- Body weight
- 217 kg
- Capacity
- 128 L
Interior Fittings
- Shelves
- 3
- Hooks
- 6
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 1015 mm
- Door open width
- 1055 mm
- Side clearance
- 390 mm
- Handle projection
- 35 mm
- Door thickness
- 50 mm
- Body thickness
- 40 mm
- Overall door thickness
- 122 mm
Locking & Fixing
- Locking bolts
- 7 × Ø30
- Fixing bolts
- 2 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 1.2 × 0.6 × 0.65 m
- Packaged weight
- 302 kg
- Pack type
- Skid
Ratings
- Cash rating
- $80,000 ($90,000 with additional key lock)
- Insurable valuables
- Up to $800,000 to $900,000
- Fire rating
- 105 minute CNS Tested
Notes
- Notes
- Large commercial

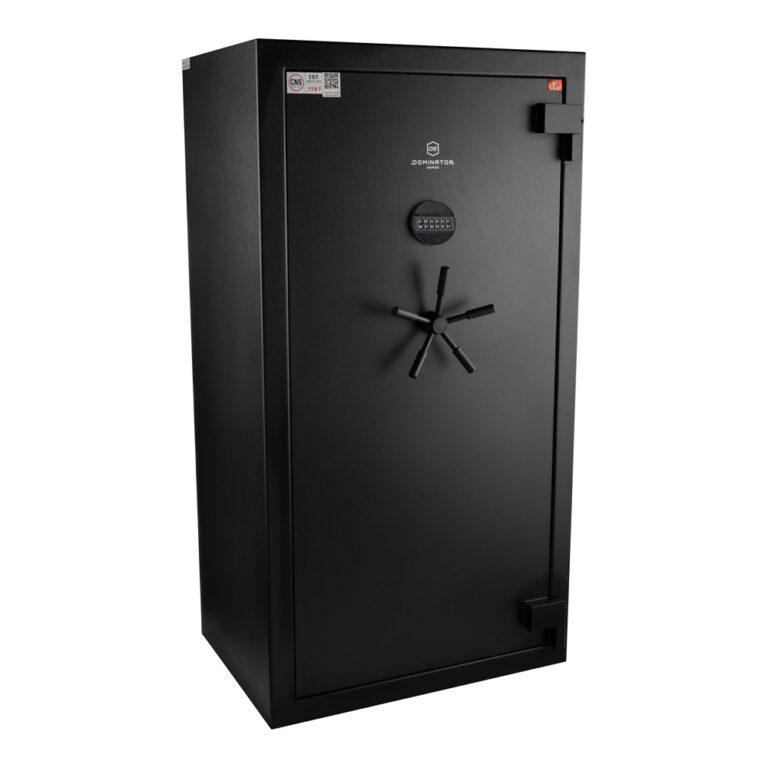

DS-5
The Huge DS-5 provides extra large volume storage in high security and high fire resistance applications. The 397L internal capacity make it one of the largest certified fire and theft safe in the Australian market. Suitable for secure storage of high value and sensitive items as well as for Pharmaceutical use.
- External height
- 1500 mm
- Weight
- 413 kg
- Capacity
- 388 L
- Locking bolts
- 12 × Ø30
Full specifications
Dimensions & Weight
- External
- 1500 × 800 × 570 mm
- Internal
- 1355 × 715 × 400 mm
- Total weight
- 413 kg
- Door weight
- 113 kg
- Body weight
- 300 kg
- Capacity
- 388 L
Interior Fittings
- Shelves
- 5
- Hooks
- 6
Door & Clearance
- Door swing angle
- 145°
- Door open height
- 1285 mm
- Door open width
- 1450 mm
- Side clearance
- 1320 mm
- Handle projection
- 70 mm
- Door thickness
- 50 mm
- Body thickness
- 40 mm
- Overall door thickness
- 122 mm
Locking & Fixing
- Locking bolts
- 12 × Ø30
- Fixing bolts
- 2 × Ø16
Packaged & Shipping
- Packaged (H × W × D)
- 1.65 × 0.85 × 0.65 m
- Packaged weight
- 440 kg
- Pack type
- Skid
Ratings
- Cash rating
- $80,000 ($90,000 with additional key lock)
- Insurable valuables
- Up to $800,000 to $900,000
- Fire rating
- 105 minute CNS Tested
Notes
- Notes
- Large commercial — increased internal width
At a Glance

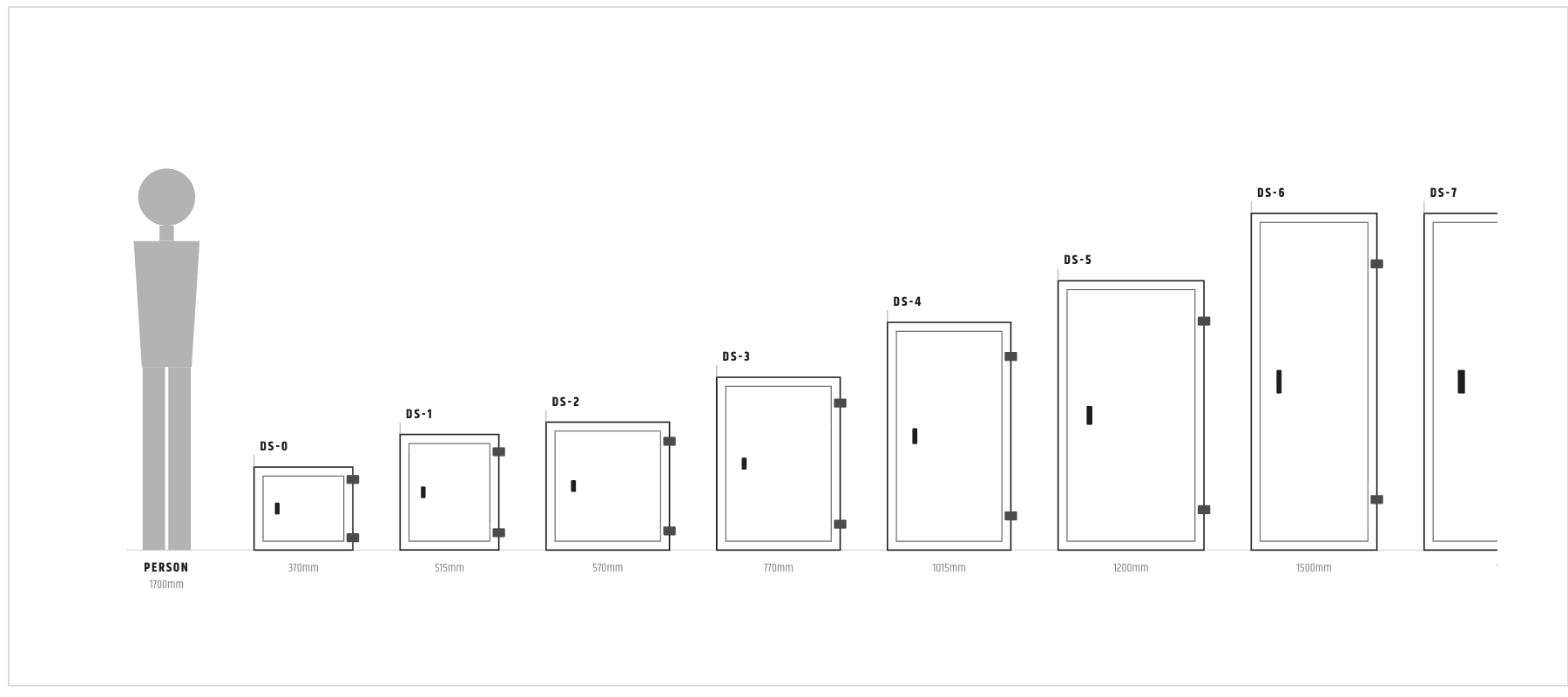

DS Series size comparison
All DS Series safes drawn to actual relative scale. DS-0 at 370mm through to DS-7 at 1500mm — with a 1700mm person silhouette for reference.
Trust and Insurance
Certifications and Insurance
Independently tested and certified. 105-minute CNS-certified fire rating applies to the full DS Series range.
UL-RSC
Independently Tested and Certified
105 Min Fire
CNS Certified Fire Rating
Cash Rating
$80,000 – $90,000 AUD
Valuables
$800,000 – $900,000 AUD
Power for Life
Free batteries — included
Best Warranty
Australia's best warranty
5-Year Warranty
Standard across the range
Independently tested burglary protection
DS Series safes are independently tested and certified by Underwriters Laboratories (UL) to the RSC burglary protection standard. Dominator builds these safes with more burglary resisting qualities than the tested models, exceeding the requirements of the certification.
International equivalents:
- EN 1143-1 Grade 2 (performance comparable)
- AS/NZS 3809:1998 Level 2 (performance comparable)
Insurance ratings (AUD)
DS Series safes carry insurable ratings that your home or business insurer can use to set sub-limits for cash and valuables:
- Cash rating: $80,000 – $90,000
- Valuables rating: $800,000 – $900,000
Specific ratings vary by model. Your dealer can confirm the exact rating for the model you’re considering and provide documentation for insurance claims.
105-minute CNS-certified fire rating applies to the full DS Series range.
Specifications
The full DS Series lineup
| Model | External (H × W × D) | Internal (H × W × D) | Weight | Capacity | Locking bolts | Notes |
|---|---|---|---|---|---|---|
| DS-0 | 370 × 440 × 390 | 235 × 350 × 235 | 67 kg | 19 L | 2 × Ø30 | Compact — entry-level secure home safe |
| DS-1 | 515 × 440 × 475 | 375 × 295 × 285 | 103 kg | 32 L | 3 × Ø30 | Small home or office |
| DS-2 | 570 × 550 × 550 | 435 × 405 × 360 | 155 kg | 63.4 L | 5 × Ø30 | Medium home or business |
| DS-3 | 770 × 550 × 550 | 630 × 405 × 360 | 189 kg | 92 L | 6 × Ø30 | Full-size home or commercial |
| DS-4 | 1015 × 550 × 550 | 875 × 405 × 360 | 291 kg | 128 L | 7 × Ø30 | Large commercial |
| DS-5 | 1500 × 800 × 570 | 1355 × 715 × 400 | 413 kg | 388 L | 12 × Ø30 | Large commercial — increased internal width |
Specs Detail
Technical Information
Door specifications
- Overall door thickness: 122mm
- Body wall thickness: 40mm
- Door face thickness: 50mm
- Door swing angle: 145°
- Handle projection: 35mm
- Chrome-plated active locking bolts (Ø30mm)
Clearance requirements
- Side clearance for door swing: 310mm (DS-0, DS-1), 390mm (DS-2 to DS-4), 490mm (DS-5), 370mm (DS-6), 510mm (DS-7)
- Recommended front clearance for access: add 600mm to door swing
Packaging and delivery
- Packaged on skid pallets for all models
- Weight includes skid (add ~5–10kg for shipping calcs)
- Most models ship upright; larger sizes require mechanical handling
- Lead times: typically in stock, or approx. 1 week through your dealer
Engineering
Construction and Security Features
DS Series safes are engineered to resist the realistic attack vectors a safe faces — drilling, punching, hinge attack, and prying. Every feature below is standard across the range.
Walls up to 40mm thick
Heavy-gauge walls encase high-density fire and penetration resistant materials.
Lift-off hinges with bar lock
Full-length bar lock protects against hinge attacks — the door remains secured even if hinges are removed.

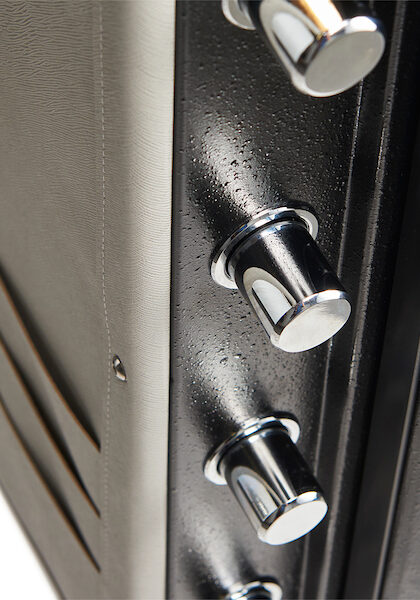

Up to seven Ø32mm bolts
Chrome-plated active locking bolts engage across the opening side. Bolt count scales with model size.
Anti-drill plating
All models include manganese steel drill-resistant plating and glass relockers. DS-2 through DS-7 add anti-punch case relockers.
Glass panel relocker
Tempered glass panel relocker deploys secondary locking bolts if the primary lock is attacked. Standard across the range.
3-way locking bolts
DS-2 through DS-7 include 3-way locking bolts and tertiary relocking devices for layered protection.
Universal lock footprint
Standardised lock mounting allows easy conversion between key, combination and electronic lock types.
6-stage textured paint
Durable textured paint with clear coating provides lasting finish resistant to scratches and corrosion.

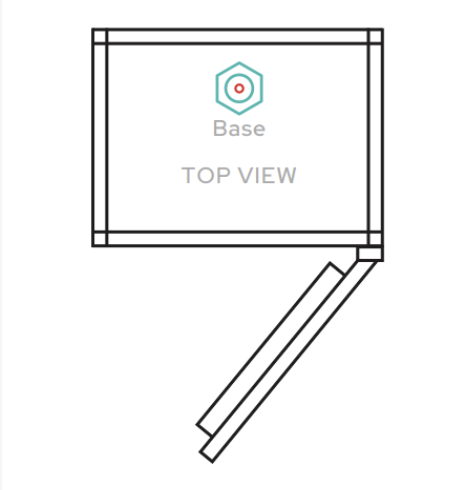

Available in base mounting

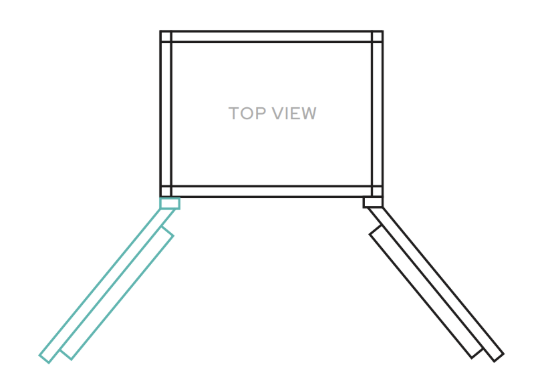

Available in Left & Right Hand Hinge
DS Series safes can be specified left-hand or right-hand hinge. Standard stock is RHH with limited stock of LHH. Rear bolting available by special order. Confirm your preferred configuration with your dealer at time of order.

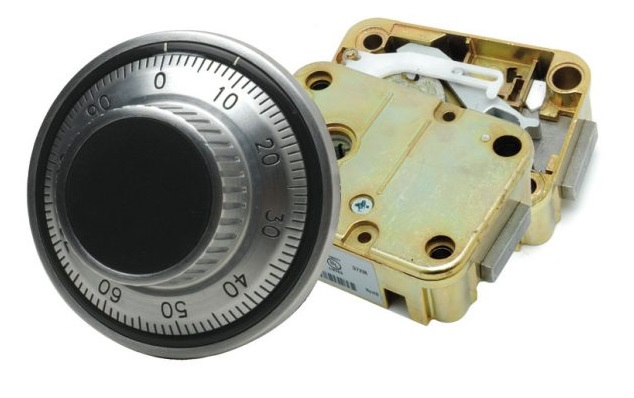

Lock Options
Lock Options and Upgrades
Every DS Series model is available in three lock configurations as standard. A second key lock can be added to any model as an upgrade — increasing security and, on selected models, improving the insurable cash rating. All lock types use a universal footprint, meaning conversion between types is straightforward for a qualified safe technician.
DS-xD

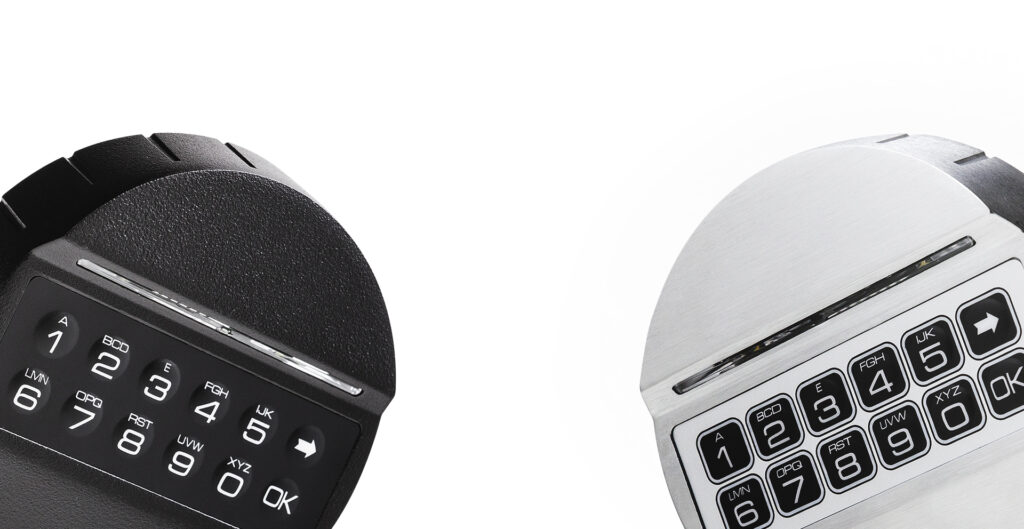

Tecnosicurezza Pulse Electronic
Tecnosicurezza Pulse 2-user electronic safe lock
Operation
6-digit user codes, 2 user capability standard
Power
9V battery (externally changeable) — covered by Power for Life
Best For
Daily access, multi-user environments, fast entry
DS-xC
Group 2 Combination Dial
Group 2 certified 3-wheel combination
Operation
Precision mechanical dial, 3 number combination
Power
None required — works indefinitely without batteries
Best For
Buyers who value simplicity and longevity, environments with no battery maintenance preference

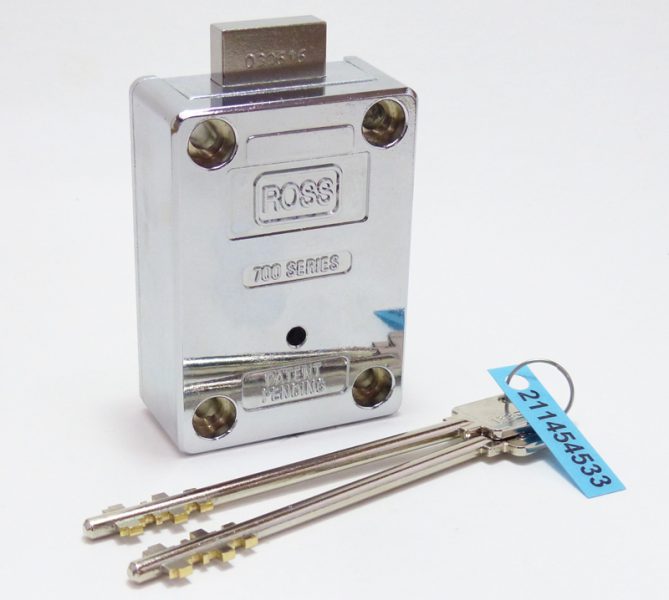

DS-xK
Ross 700 Key Lock
Ross 700 high-security key lock
Operation
Traditional key-turn mechanism
Power
None required
Best For
Buyers who prefer key-access reliability and don't need to share access frequently.
Note
Highest quality mechanical key lock available — can also be specified as a secondary lock on DS-2, DS-3, DS-4 and DS-5 for increased security cash rating
Upgrade
Secondary Key Lock Upgrade
Any DS Series from DS-2, through DS-7 models, can be specified with a secondary Ross 700 key lock in addition to its primary lock. Adding a secondary key lock increases the insurable cash rating. Your dealer can provide exact pricing and rating documentation.
Universal Lock Footprint
DS Series safes use a universal lock mounting footprint — meaning any of the three lock types can be retrofitted to an existing safe by a qualified safe technician. You’re not locked into your original choice.
Configure
Accessories and Spare Parts
Configure your DS Series safe with the accessories below. All accessories are available through your Dominator dealer at point of order or as retrofits.
Shelves
Additional vinyl shelves with fitting clips. One shelf per part, sized to suit your model.
DS-0SHELF
Vinyl shelf and clips to suit DS-0
DS-1SHELF
Vinyl shelf and clips to suit DS-1
DS-2SHELF
Vinyl shelf and clips to suit DS-2
DS-3SHELF
Vinyl shelf and clips to suit DS-3
DS-4SHELF
Vinyl shelf and clips to suit DS-4
DS-5SHELF
Vinyl shelf and clips to suit DS-5
Jewellery Trays
Velvet-lined jewellery trays sized for compartmented storage of rings, watches and small valuables.
IQ-JEWEL-1
Shelf and jewellery tray to suit DS-0
IQ-JEWEL-2
Shelf and jewellery tray to suit DS-1
IQ-JEWEL-3
Shelf and jewellery tray to suit DS-2
IQ-JEWEL-4
Shelf and jewellery tray to suit DS-3
IQ-JEWEL-5
Shelf and jewellery tray to suit DS-4
Media Chests
Insulated media chests for sensitive digital media stored inside the safe.
1102G
Honeywell media chest
1103G
Honeywell media chest
1106G
Honeywell media chest
Stands and Plinths
Optional plinths and stands to raise the safe off the floor for easier access or to clear skirting boards.
DS-0STAND600
600mm steel stand/plinth for DS-0
DS-0STAND900
900mm steel stand/plinth for DS-0
DS-1STAND600
600mm steel stand/plinth for DS-1
DS-1STAND900
900mm steel stand/plinth for DS-1
DS-2STAND300
300mm steel stand/plinth for DS-2/3/4
DS-2STAND600
600mm steel stand/plinth for DS-2/3/4
DS-2STAND900
900mm steel stand/plinth for DS-2/3/4
For Specifiers
DS Series Specification Tips
Matching footprint across DS-2, DS-3, DS-4
DS-2, DS-3 and DS-4 share the same width (550mm) and depth (550mm) — only the height differs. All three models accommodate standard cash register till drawers, making them interchangeable for retail applications as your needs grow.
Relocker protection varies by model
DS-0 and DS-1 include manganese steel drill-resistant plating and tempered glass panel relocker. DS-2, through DS-7 include these features plus anti-punch case relockers for additional protection against forced-entry attacks.
Secondary key lock upgrade
Adding a secondary Ross 700 key lock to DS-2 through DS-7 increases the insurable cash rating. Confirm upgraded rating with your dealer at time of order.
Lifetime Initiative
Power for Life Free batteries for the lifetime of your safe.
Every DS Series safe with an electronic or biometric lock is covered by our Power for Life initiative. Once a year, you can redeem a free replacement battery at any authorised Dominator dealer — no receipts, no conditions, for as long as you own the safe.
It's our way of making sure your safe stays accessible for decades, not just years.
Power for Life applies across the full range: HS Series, DS Series, GC Series (gun cabinets), FA Series and FX Series.
STEP 01
Receive your e-voucher
After registering your warranty
STEP 02
Visit your dealer once a year
With the voucher on your phone
STEP 03
Walk out with a free battery
Recommended Duracell Procell Alkaline battery
Setup
Installation
What to expect
Most DS Series safes can be installed by your dealer or a qualified safe installer. Smaller models (DS-0 to DS-2) can be positioned by on or two people. DS-3 onwards typically requires mechanical handling or a specialised trolley.
Floor bolting is strongly recommended for all safes — an unbolted safe can be removed in minutes by a determined thief. DS Series safes include dual Ø16mm floor-fixing provisions, and a properly installed safe effectively weighs several tonnes in tensile resistance.
Installation checklist
-
01
Identify fixing bolt provisions — DS-0 through DS-5 have 2 × Ø16mm anchor points, DS-6 and DS-7 have 4 × Ø16mm. Confirm hole positions with your dealer before drilling.
-
02
Identify install position with access clearance (allow for door swing and handing)
-
03
Confirm delivery access route (doorways, corridors, stairs)
-
04
Schedule installation through your dealer — most offer delivery + install as a package
-
05
Keep installation certificate for insurance records
Base Anchoring Provisions
Top-view footprint of each DS Series model showing floor anchor bolt positions. All footprints shown to scale relative to each other.
Secondary Defence
Glass Relocker Protection
DS Series safes include a glass relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
How it works
A thin glass plate is embedded behind the primary lock body. If a drilling, punch, or torch attack breaks the glass, spring-loaded secondary bolts deploy and jam the locking mechanism. Once activated, the safe cannot be opened even if the primary lock is subsequently bypassed — it requires professional recovery by a qualified safe technician.
The relocker is a permanent protection feature, not a consumable. It exists to make the safe effectively unusable to an attacker even if they partially succeed against the primary lock.
If your relocker activates
If you cannot open your safe and suspect the relocker has engaged (usually after attempted forced entry), contact your Dominator dealer immediately. Do not attempt forced opening — this can cause permanent damage to the safe body.
A qualified safe technician can recover the relocker and restore normal operation. The safe itself remains structurally sound and can usually return to service after a relocker recovery.
Maintenance and Servicing
DS Series safes require minimal maintenance but benefit from occasional service to keep locks and hinges operating smoothly over decades of use.
Every 12 months
Battery replacement (electronic/biometric locks)
Redeem your free battery through Power for Life. Replace before low-battery warnings, not after.
Every 12 months
Lock lubrication (mechanical dials)
Apply a drop of lock-grade lubricant to the dial spindle annually. Avoid WD-40 or general-purpose oils — they can gum up precision movements.
Every 12 to 24 months, depending if commercial or domestic use
Professional service
Book a qualified safe technician to inspect hinges, bolt work, and relocker mechanism. Typical service takes 30–60 minutes.
Every 5 years
Seal inspection
Check fire seals (where fitted) for compression and integrity. Replace if damaged.
Support
Troubleshooting
DS Series safes include a glass relocker — a secondary locking mechanism designed to activate if the primary lock is attacked. Understanding how it works helps you know when it’s engaged and what to do if it is.
Electronic lock won't open — no response from keypad.
Battery is most likely depleted. Replace the 9V battery (externally changeable on DS Series electronic locks) and try your code again. Make sure to use a brand-new Duracell 9v Alkaline battery only. If the keypad still doesn’t respond, contact your dealer for diagnosis.
Electronic lock responds but rejects correct code.
Mechanical dial won't open — combination correct but bolts don't retract.
Lock is working, but handle does not unlock.
Safe door is difficult to open or close.
Safe is damaged or inoperable after attempted forced entry.
Still Stuck?
Contact your Dominator dealer for support, or call 1300 366 462 for direct assistance.
Pricing and availability through our dealer network.
With dealers across Australia and New Zealand, there's a Dominator specialist near you.
IQ Pistol Series
Compact pistol safes for handgun storage, with fire-rated construction, quick-access locks and AS-compliant design.
UC Series
Compact postal-slot deposit safes for under-counter cash drops, with a letterbox-style slot and secure separate access.
GC Series
Gun cabinets and premium gun safes for licensed firearm owners. Australian-compliant configurations from cabinet through to fire-rated.
DR Series
Compact drug safes for clinics and pharmacies, with cash ratings and the security construction needed for restricted-substance storage.
DF Series
In-floor safes that disappear into concrete slabs. Discreet, hard to remove, and fitted with reinforced base plates.
DD Series
Tilt-drawer deposit safes for retail and hospitality. Drop cash without opening the safe, with insurable cash ratings up to $30,000.
FA Series
Commercial-grade fire-resistant safes built for offices and retail, with higher cash ratings and 105-minute CNS fire certification.
FX Series
High-security TL-rated commercial safes with heavier wall construction and cash ratings up to $450,000 for serious storage.
Infinity Safes
Your DS Series Safe. Elevated Beyond Recognition. Bespoke interiors, premium finishes, and watch winders — built on the same proven security platform you trust.
Infinity Safes takes the security platform you’ve chosen and transforms it into something genuinely extraordinary. Rolls Royce Blue gloss exteriors. Polished Jarrah timber and Alcantara interiors. Forty watch winders. Gold plated hardware. Every element designed, finished, and installed in Perth.
If your collection has outgrown a standard interior — or if the safe is going somewhere it needs to look exceptional — Infinity is the answer.
